Which three actions should you perform?

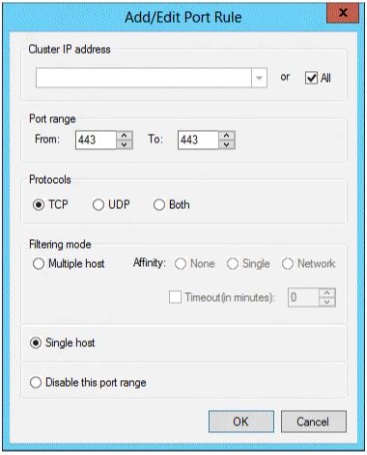

You configure the nodes to use the port rule shown in the exhibit. (Click the Exhibit button.)

You need to configure the NLB cluster to meet the following requirements:
 HTTPS connections must be directed to Server1 if Serverl is available.
 HTTP connections must be load balanced between the two nodes.
Which three actions should you perform? {Each correct answer presents part of the solution.
Choose three.

PrepAway - Latest Free Exam Questions & Answers

A.
From the host properties of Server2, set the Handling priority of the existing port rule to 2.

B.
Create a port rule for TCP port 80. Set the Filtering mode to Multiple host and set the Affinity to
None.

C.
Create an additional port rule for TCP port 443. Set the Filtering mode to Multiple host and set
the Affinity to Single.

D.
From the host properties of Server1, set the Handling priority of the existing port rule to 2.

E.
From the host properties of Server2, set the Priority (Unique host ID) value to 1.

F.
From the host properties of Server1, set the Handling priority of the existing port rule to 1.

Explanation:
Multiple hosts. This parameter specifies that multiple hosts in the cluster handle network traffic for
the associated port rule. This filtering mode provides scaled performance in addition to fault
tolerance by distributing the network load among multiple hosts. You can specify that the load be
equally distributed among the hosts or that each host handle a specified load weight.
Note: Handling priority: When Single host filtering mode is being used, this parameter specifies the
local host’s priority for handling the networking traffic for the associated port rule. The host with
the highest handling priority (lowest numerical value) for this rule among the current members of
the cluster will handle all of the traffic for this rule. The allowed values range from 1, the highest
priority, to the maximum number of hosts allowed (32). This value must be unique for all hosts in
the cluster. Network Load Balancing parameters.

2 Comments on “Which three actions should you perform?

  1. Diogo says:

    The answer is correct.
    1st: F. From the host properties of Server1, set the Handling priority of the existing port rule to 1.
    2nd: B.Create a port rule for TCP port 80. Set the Filtering mode to Multiple host and set the Affinity to None.
    3dr: A. From the host properties of Server2, set the Handling priority of the existing port rule to 2. (In this case, the port we have just created)




    2



    0
