HOTSPOT

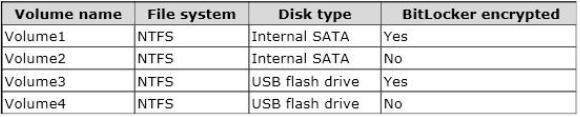

You have a server named Server1 that runs Windows Server 2012 R2. The volumes on Server1 are
configured as shown in the following table.
A new corporate policy states that backups must use Windows Azure Online Backup whenever
possible.
You need to identify which backup methods you must use to back up Server1. The solution must use
Windows Azure Online Backup whenever possible.
Which backup type should you identify for each volume?
To answer, select the appropriate backup type for each volume in the answer area.
Answer:
Explanation:
<map><m x1=”211″ x2=”211″ y1=”70″ y2=”70″ ss=”0″ a=”0″ /><m x1=”62″ x2=”228″
y1=”52″ y2=”68″ ss=”0″ a=”0″ /><m x1=”63″ x2=”251″ y1=”102″ y2=”118″ ss=”0″ a=”0″ /><m
x1=”63″ x2=”215″ y1=”191″ y2=”209″ ss=”0″ a=”0″ /><m x1=”61″ x2=”216″ y1=”267″ y2=”284″
ss=”0″ a=”0″ /></map>Box 1: Windows Server Backup
Volume1 is NTFS and on a fixed disk, but Bitlocker is used.
Windows Azure Online Backup cannot backup volume that has Bitlocker.
Box 2: Windows Azure Online Backup
Volume2 is NTFS, on a fixed disk, and Bitlocker is not used.
Windows Azure Online Backup can be used.
Box 3: Windows Server Backup
Volume3 is not on a fixed disk. It is on a USB disk.
Additionally bitlocker is used.
Windows Azure Online Backup cannot be used.
Box 4: Windows Server Backup
Volume3 is not on a fixed disk. It is on a USB disk.
Windows Azure Online Backup cannot be used.
Note: You can use Microsoft Azure Backup to back up content stored on fixed NTFS volumes. It
cannot be used in the following situations:
Volume is locked by BitLocker Drive Encryption. If BitLocker is enabled on the volume, the volume
must be unlocked before it can be backed up.
Drive type is not fixed.
Volume is not formatted with NTFS.
Volume is read-only.
Volume is not currently online.
Volume is on a network share. Azure Backup Overview
https://msdn.microsoft.com/en-us/library/azure/hh831419.aspx
The answers are correct – >
The following set of drives/volumes can’t get backup:
•Removable Media: The drive must report as a fixed to be used a backup item source.
•Read-only Volumes: The volume must be writable for the volume shadow copy service (VSS) to function.
•Offline Volumes: The volume must be online for VSS to function.
•Network share: The volume must be local to the server to be backed up using online backup.
•Bitlocker protected volumes: The volume must be unlocked before the backup can occur.
•File System Identification: NTFS is the only file system supported for this version of the online backup service.
1
1
Source —>>>
https://azure.microsoft.com/en-us/documentation/articles/backup-azure-backup-faq/
0
0
Correct answer is:
WAOB
WAOB
WSB
WSB
explanation is wrong for volume 1.
Yes volume 1 has to be unlocked, and we are using the server to backup itself, so we may assume that the volume is unlocked.
1
0
Correct.
0
0
it should be assumed that “everybody” (= s.b. going for MCSA oder MCSE) is able to use manage-bde to unlock a Bitlocker encrypted volume before starting backup and lock it again when finished.
The question further stated “when ever possible”, so WAOB is not impossible.
Therefore my vote also goes to:
WAOB
WAOB
WSB
WSB
1
0
My vote goes to original answer because these questions are often literal and if it does not say that the drive is unlocked, then you cannot assume that it can be backed up.
0
0
I agree. They are testing your knowledge of what the requirements are and what can prevent it.
Sure we know we can Unlock Voume 1, but thats like saying “well technically…” which you can’t do in these exams.
If it doesnt say unlocked, you cant use WAOB. simple as that. Don’t overthink.
5
0
