DRAG DROP
Your network contains an Active Directory domain named contoso.com. The domain contains two
member servers named Server1 and Server2. All servers run Windows Server 2012 R2.
You generalize Server2.
You install the Windows Deployment Services (WDS) server role on Server1.
You need to capture an image of Server2 on Server1.
Which three actions should you perform?

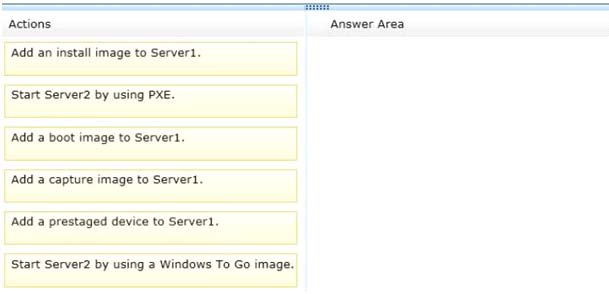

To answer, move the three appropriate actions from the list of actions to the answer area and
arrange them in the correct order.
Answer:
Explanation:
Box 1: Start Server2 by using PXE.
Box 2: Add a capture image to Server1.
Box 3: Add an install image to Server1.Note:
* Capture images are Windows Preinstallation Environment (Windows PE) images that allow you to
easily capture the install images that you prepare using Sysprep.exe. Instead of using complex
command-line tools, once you have run Sysprep.exe on your reference computer, you can boot to
the Windows Deployment Services client computer using PXE and select the capture image. When
the capture image boots, it starts the Capture Image Wizard, which will guide you through the
capture process and optionally upload the new install image to a Windows Deployment Services
server.
Steps
/ create a capture image.
/ Create an install image.
/ Add the install image to the Windows Deployment Services server.
The answer must be:
1-Add a boot Image to server1
2-Add a capture image to Server1.
3-Start Server2 by using PXE.
0
0
Answer is correct.
See – http://social.technet.microsoft.com/wiki/contents/articles/11680.creating-a-capture-image-in-wds.aspx
“How to Create An Image by Using a Capture Image”
0
0
The answer is not correct, since in order to create a capture image you need to have a Boot image to capture the image from.
So @Musiquito is right about the answer.
0
0
1. Boot Image
2. Capture Image
3. Boot PXE
0
0
Must be:
1. Boot image
2. Capture Image
3. Start Server 2 PXE
0
0
so.. based on:
How to Create An Image by Using a Capture Image
http://social.technet.microsoft.com/wiki/contents/articles/11680.creating-a-capture-image-in-wds.aspx#How_to_Create_An_Image
you have to capture server2
1. start server2 by using PXe
1.1 select capture image
2. add a capture image on server1
3. add install image to server1
because you don’t have the option to capture from a win PE
??
0
0
1. Add capture Image to server 1 (this becomes the boot image for capture)
2. Start Server 2 in PXE
2a Select the capture image.
3. Add install image to Server 1. (This is part of the Capture Wizard)
0
0
its
1. Add a boot image to WDS on Server1 to allow to facilitate PXE boot.
2. Add a capture image to WDS on Server1 to facilitate image capture of Server2.
3. Boot Server2 using PXE and select the capture image that was previously created.
http://www.aiotestking.com/microsoft/which-three-actions-should-you-perform-130/
http://www.aiotestking.com/microsoft/which-three-actions-should-you-perform-175/
i’ll test in lab env
0
0
http://www.mcmcsadumps.com/free-new-updated-october-microsoft-70-411-real-exam-201-210.html?upm_export=pdf
🙂
0
0
Wow, that is a badly formatted pdf 🙂 but it says the answer should be
1. Add a boot image to Server1
2. Add a capture image to Server1
3. Start Server2 by PXE
0
0
The provided answer is correct. You cannot add the image of Server2 onto Server1 without first capturing the image..
0
0
The provided answer is not correct. You cannot PXE boot, then add an image and have it show up in the boot computer. Also it says it just installed the role, so I am assuming there are no images that have been added to WDS yet. Good luck trying to PXE from nothing. The correct answer should be
1. Add a boot image to Server1. This will allow Server2 to PXE. Without a boot image. It won’t find anything.
2. Right click on the boot image in WDS and create capture image from it. This capture image will be the image Server2 PXE’s into. This specialized image will capture the current OS on Server2 and turn it into an image.
3. PXE server2.
These are critical steps. I have done them before. Without a boot image, you cannot PXE server2. Without a capture image, you cannot create an image from serve2.
