Your network contains an Active Directory domain named contoso.com. The domain contains two
member servers named Server1 and Server2. All servers run Windows Server 2012 R2.
Server1 and Server2 are nodes in a Hyper-V cluster named Cluster1. Cluster1 hosts 10 virtual
machines. All of the virtual machines run Windows Server 2012 R2 and are members of the domain.
You need to ensure that the first time a service named Service1 fails on a virtual machine, the virtual
machine is moved to a different node.
You configure Service1 to be monitored from Failover Cluster Manager.
What should you configure on the virtual machine?

A.
From the General settings, modify the Startup type.

B.
From the General settings, modify the Service status.

C.
From the Recovery settings of Service1, set the First failure recovery action to Take No Action.

D.
From the Recovery settings of Service1, set the First failure recovery action to Restart the Service.

Explanation:
Configure the virtual machine to take no action through Hyper-V if the physical computer shuts
down by modifying the Automatic Stop Action setting to None. Virtual machine state must be
managed through the Failover Clustering feature.
Virtual machine application monitoring and management
In clusters running Windows Server 2012, administrators can monitor services on clustered virtual
machines that are also running Windows Server 2012. This functionality extends the high-level
monitoring of virtual machines that is implemented in Windows Server 2008 R2 failover clusters. If a
monitored service in a virtual machine fails, the service can be restarted, or the clustered virtual
machine can be restarted or moved to another node (depending on service restart settings and
cluster failover settings).

This feature increases the uptime of high availability services that are running on virtual machines
within a failover cluster.
Windows Server 2012 Failover Cluster introduces a new capability for Hyper-V virtual machines
(VMs), which is a basic monitoring of a service within the VM which causes the VM to be rebooted
should the monitored service fail three times. For this feature to work the following must be
configured:
Both the Hyper-V servers must be Windows Server 2012 and the guest OS running in the VM must
be Windows Server 2012.
The host and guest OSs are in the same or at least trusting domains.
The Failover Cluster administrator must be a member of the local administrator’s group inside the
VM.
Ensure the service being monitored is set to Take No Action (see screen shot below) within the guest
VM for Subsequent failures (which is used after the first and second failures) and is set via the
Recovery tab of the service properties within the Services application (services. msc).

Within the guest VM, ensure the Virtual Machine Monitoring firewall exception is enabled for the
Domain network by using the Windows Firewall with Advanced Security application or by using the
Windows PowerShell command below: Set-NetFirewallRule -DisplayGroup “Virtual Machine
Monitoring” -Enabled True.
After the above is true, enabling the monitoring is a simple process:
Launch the Failover Cluster Manager tool.
Navigate to the cluster – Roles.
Right click on the virtual machine role you wish to enable monitoring for and under More Actions
select Configure Monitoring.

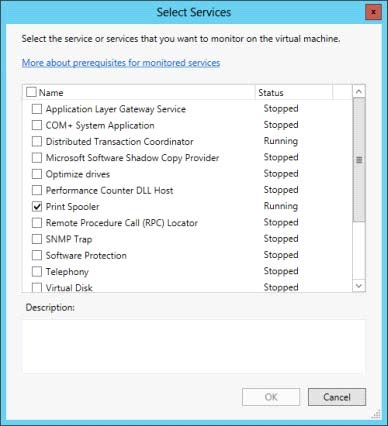

The services running inside the VM will be gathered and check the box for the services that should
be monitored and click OK.

You are done!
Monitoring can also be enabled using the Add-ClusterVMMonitoredItemcmdlet and –
VirtualMachine, with the -Service parameters, as the example below shows: PS
C:\Windows\system32> Add-ClusterVMMonitoredItem -VirtualMachine savdaltst01 -Service spooler
