DRAG DROP
Your network contains an Active Directory forest. The forest contains a single domain named fabrikam.com.

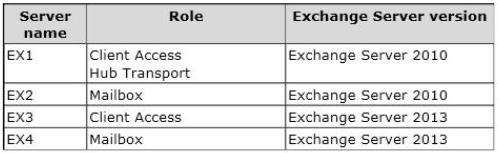

You have an Exchange Server organization that contains four servers. The servers are configured as shown in
the following table.
You plan to enable Outlook Anywhere for all users. You plan to configure the users to connect to the name
oa.fabrikam.com. The IP address of oa.fabrikam.com points to EX3.
You need to ensure that users on EX2 and EX4 can access their mailbox by using Outlook Anywhere.
Which command should you run on EX1 and EX3? (To answer, drag the appropriate cmdlets to the correct
servers. Each cmdlet may be used once, more than once, or not at all. You may need to drag the split bar
between panes or scroll to view content.)
Select and Place:
Answer:
Explanation:
Enable-OutlookAnywhere
Exchange 2010 command
EX1 is an exchange 2010 server
Use the Enable-OutlookAnywhere cmdlet to enable Outlook Anywhere on a computer running Microsoft
Exchange Server 2010 that has the Client Access server role installed. Running the Enable-OutlookAnywhere
cmdlet enables the server to accept requests from Microsoft Office Outlook 2007 and Outlook 2003 client
computers from the Internet by using Outlook Anywhere, also known as RPC over HTTP.
Disable-OutlookAnywhere
Need to enable it not disable it
Set-ClientAccessServer
Exchange 2013
Use the Set-ClientAccessServer cmdlet to set properties on specified Client Access server objects.
Set-OutlookAnywhere
Exchange 2013
Use the Set-OutlookAnywhere cmdlet to modify the properties on a computer running Microsoft Exchange
Server 2013 enabled for Microsoft Outlook Anywhere.
The syntax for the cmdlets to configure Outlook Anywhere look like the following:Set-OulookAnywhere –Identity ‘<CAS Server>\\rpc (Default Web Site)’ <commands>
In our example, to set the internal and external URL’s we will use the following:
Set-OutlookAnywhere -Identity ‘AETESTEXCD01\\rpc (Default Web Site)’ –ExternalHostname mail.aetest.com
–InternalHostname mail.aetest.com –ExternalClientAuthenticationMethod Ntlm –
ExternalClientsRequireSsl:$true –InternalClientAuthenticationMethod Ntlm -InternalClientsRequireSsl:$true –
IISAuthentication Ntlm –SSLOffloading:$false
Remember to enter this all together on one line without pressing enter. The command may be long, but we
successfully configured everything from a cmdlet without having to go into the EAC, logging in, clicking here,
clicking there, etc…
Set-OutlookProvider
Exchange 2013
Use the Set-OutlookProvider cmdlet to set specific global settings using the msExchOutlookProvider attribute
on the msExchAutoDiscoverConfig object in Active Directory.
For information about the parameter sets in the Syntax section below, see Syntax.
This example changes the duration that the Autodiscover service settings are valid for the Microsoft Outlook
provider msExchAutoDiscoverConfig.
Set-OutlookProvider -Identity msExchAutoDiscoverConfig -TTL 2
Enable-OutlookAnywhere: Exchange 2010 Help
Set-OutlookAnywhere: Exchange 2013 Help
