###BeginCaseStudy###
Testlet 1
Topic 4, A Datum Corporation
Overview
A)
Datum Corporation is an airline catering company that has 8,000 users. A. Datum has three main offices.
The offices are located in Detroit, Chicago, and New York.
Existing Environment
Active Directory Environment
The network contains an Active Directory forest named adatum.com. The forest contains a single domain. All
domain controllers run Windows Server 2012.
Each main office contains two domain controllers. Each office is configured as an Active Directory site.
The functional level of the forest is Windows Server 2012.
Network Infrastructure
The offices connect to each other by using a dedicated WAN link. Only the office in New York and the office in
Detroit connect directly to the Internet. Each office has a firewall.
The public DNS records for A. Datum are configured as shown in the following table.

The external interface for the firewall in the New York office is configured to use an IP address of
131.107.1.200 and to pass inbound traffic on port 25 and port 443 to EX2.
The external interface for the firewall in the Detroit office is configured to use an IP address of 131.107.2.200
and to pass inbound traffic on port 443 to EX4.
The Active Directory site is configured as shown in the Sites exhibit. (Click the Exhibit button.)
Exchange Server Organization
A)
Datum has an Exchange Server 2013 organization that contains two servers. The servers are
configured as shown in the following table.

Each server contains 15 mailbox databases.
Users use the name mail.adatum.com to connect to their mailbox from the Internet. The users use the FQDN of
the servers to connect from the internal network.
AM of the users in the Detroit office have a mailbox hosted on EX2.
The default email address policy contains a single email address format of @adatum.com.
A separate Send connector exists for the Chicago office and the New York office. The local servers in each
office are the only source servers in each Send connector.
The New York office is configured as a hub site. Antimalware filtering is disabled on EX1 and EX2.
Problem Statements
A)
Datum identifies the following issues:
Users in the Detroit office report that sometimes, Microsoft Outlook takes a long time to open.
During a recent storage failure, administrators failed to restore the latest backup and lost all of the email
messages from the previous 48 hours.
Users report that the email messages sent to some Internet domains are not received. Users in the Chicago
office report that some of their email messages generate a non-delivery report (NDR).
The help desk in the New York office reports that its most common Exchange-related task is to restore
email messages that were deleted by users more than 14 days ago. The task requires time-consuming
restore operations by the help desk.
Requirements
Business Requirements
A)
Datum wants to provide users with the ability to access their email from Internet Explorer 10, even when the
users are disconnected from the network. This ability must only be available if the users log on to Outlook Web
Access by using the Private option.
Planned Changes
You plan to deploy three additional Exchange Server 2013 servers. The servers will be configured as shown in
the following table.

After the planned deployment, all of the mailboxes of the Detroit office users will be moved to EX3. All of the
Detroit office users will use the name detroitmail.adatum.com when they connect from the Internet and the
name ex4.adatum.com when they connect from the internal network.
Technical Requirements
A)
Datum identifies the following technical requirements:
All existing and future mailboxes must be limited to 5 GB of storage.
Antimalware and anti-spam filtering must be enabled for the entire Exchange Server organization.If storage for the mailbox database fails, administrators must be able to recover email messages handled by
transport services for to the last five days.
Only the members of a group named Executives must be able to schedule meetings in a room mailbox
named Boardroom. Meeting requests must not be moderated.
All of the servers in the New York office that have the Client Access server role installed must be accessed
by using a load balancing solution that can mark a server as down if a specific URL on the server is
unavailable.
Mailbox Creation Requirements
A)
Datum identifies the following requirements for creating new mailboxes:
All mailboxes must automatically have single item recovery enabled.
All mailboxes must automatically have the Exchange ActiveSync feature disabled.
###EndCaseStudy###

You need to recommend a solution to resolve the issue of email messages not being received on the Internet.
What should you include in the solution?

A.
Modify the CNAME record.

B.
Add an MX record.

C.
Modify the TXT record.

D.
Add a pointer (PTR) record.

Explanation:
Detroit and New York users have direct connection to the internet but not Chicago users.
It appears that via a Send Connector Chicago email is sent to New York mail server.
Given this then the spf txt record listing the New York mail server is correct (131.107.1.200) and there should
not be any issues with the Chicago email
Once the planned changes have been implemented then the DNS txt record would have to accommodate the
Detroit Mail server (EX3) (131.107.2.200) in order for the email to function correctly for Detroit users.
However the question relates to Chicago users not Detroit users.
CNAME record
A Canonical Name or CNAME record is a type of DNS record that links an alias name to another canonical
domain name.
You’ll need to configure CNAME records if you want to use URL forwarding to create a custom web address,
forward a URL to Google Sites, or forward a naked domain URL, as well as verify your site with your domain
name provider.
Lastly, you may need to use CNAME records to reset the administrator password if you can’t access the
Google Apps control panel because you’ve forgotten the administrator password.
Your CNAME records are stored in the DNS Zone File as pairs of key values.
The value of a CNAME record is always a domain name. CNAME records are often used to create
subdomains. CNAME records are useful because they allow you to set up an alias to a server without using its
IP address, through an intermediary standard domain name.
MX Record
MX records are DNS settings associated with your domain that direct its mail to the servers hosting your users’
mail accounts.
These settings are managed by your domain host, not by Google. To make sure mail always gets delivered,
you typically create records for multiple servers, all of which can deliver mail to users.That way, if one server is down, mail can be routed to another server, instead. You determine which servers get
tried first by assigning priorities, using values like 10, 20, 30, and so on. The lowest value gets highest priority.
PTR Record
A DNS PTR record – for those of you who are wondering – is a special entry in the Domain Name System
(DNS) that basically maps an IP address (like 65.55.12.249) to a domain name (like
wwwco2vip.microsoft.com). Having a DNS PTR record for your IP address is (somewhat) a sign of reliability in
the Internet, since only the owner of a specific network zone has the ability to create and edit these DNS
records.
Today, most mail exchangers will check this record for each incoming connection and may abort the
communication if they find your IP address does not have an associated DNS PTR entry: because of this
reason, always suggest to make sure your public servers IP addresses have DNS PTR records configured
properly. While EmailVerify.NET can validate email addresses even without a DNS PTR entry configured, the
quality of the validation results in this event may be suboptimal.
TXT Record
A TXT record is an entry within the Domain Name System (DNS) that provides supplemental information about
your domain.
A TXT (text) record is used to hold some text information. You can put virtually any free text you want within a
TXT record.
A TXT record has a hostname so that you can assign the free text to a particular hostname/zone.
The most common use for TXT records is to store SPF (sender policy framework) records and to prevent
emails being faked to appear to have been sent from you.
The name field of the SPF record should be left blank unless mail is sent from a subdomain such as
username@mail.example-1.com. If this was the case “mail” would be entered in the name field of the record.
Alternatively, of email is sent from username@example-1.com, the name field is left blank. The data field of the
record is populated with the list of hosts that are permitted to send email for the domain in SPF record format.
There are wizards which can assist in generating an SPF record available. The data field of the record must be

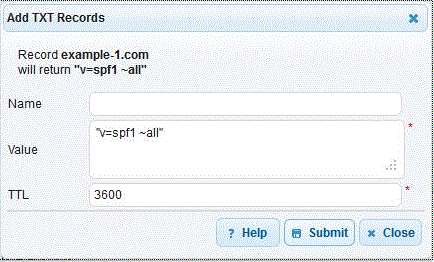

enclosed in quotations so servers will read the value as a single string. Below is a default SPF record for
example-1.com.

NOT A
Today, most mail exchangers will check this record for each incoming connection and may abort the
communication if they find your IP address does not have an associated DNS PTR entry:
Need a ptr record.
NOT B
Today, most mail exchangers will check this record for each incoming connection and may abort the
communication if they find your IP address does not have an associated DNS PTR entry:
Need a ptr record.NOT C
Need to modify the txt record for Detroit email users but not apparently for chicago email users.
D
Today, most mail exchangers will check this record for each incoming connection and may abort the
communication if they find your IP address does not have an associated DNS PTR entry:
Need a ptr record.
