You have a server named LON-DC1 that runs Windows Server 2012 R2. An iSCSI virtual disk named

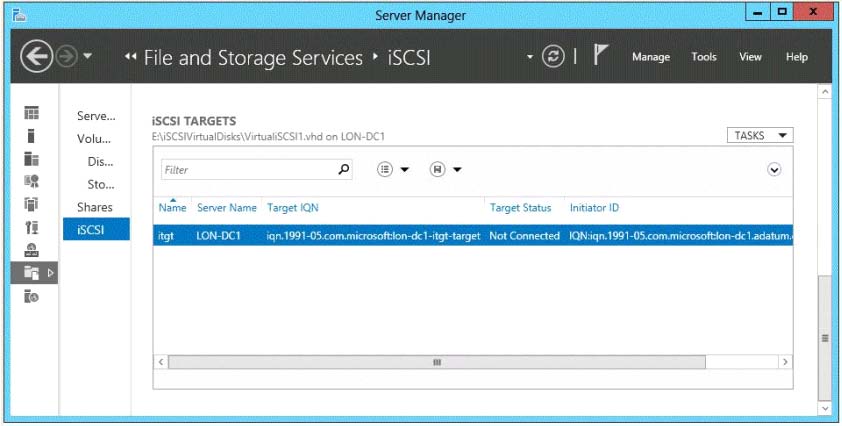

VirtualiSCSI1.vhd exists on LON-DC1 as shown in the exhibit. (Click the Exhibit button.)
You create a new iSCSI virtual disk named VirtualiSCSI2.vhd by using the existing itgt iSCSI target.
VirtualiSCSIl.vhd is removed from LON-DC1.
You need to assign VirtualiSCSI2.vhd a logical unit value of 0.
What should you do?
A.
Modify the properties of the itgt ISCSI target.
B.
Modify the properties of the VirtualiSCSI2.vhd iSCSI virtual disk.
C.
Run the Set-VirtualDisk cmdlet and specify the -Uniqueld parameter.
D.
Run the iscsicli command and specify the reportluns parameter.
Explanation:
The virtual disk has the option to change the lun ID, no other option available in the answers appear
to allow this change.
Note: Logical unit numbers (LUNs) created on an iSCSI disk storage subsystem are not directly
assigned to a server. For iSCSI, LUNs are assigned to logical entities called targets.
I think the given answer is INCORRECT.
>Microsoft states<
Logical unit numbers (LUNs) created on an iSCSI disk storage subsystem are not directly assigned to a server. For iSCSI, LUNs are assigned to logical entities called targets.
So to assign/change the LUN we need to modify the target.
This is done in answer A: Modify the properties of the itgt ISCSI target
0
0
Check Exam Ref 70-412 book page 135 – The properties dialog box of the iSCSI virtual disk allows you to modify the LUN value assigned to the disk.
The given answer is CORRECT.
1
0
Perfect. I’d write the same thing. I checked it reading the page 135 from exam ref 70-412 book.
0
0
‘C’ is correct too…
0
1
