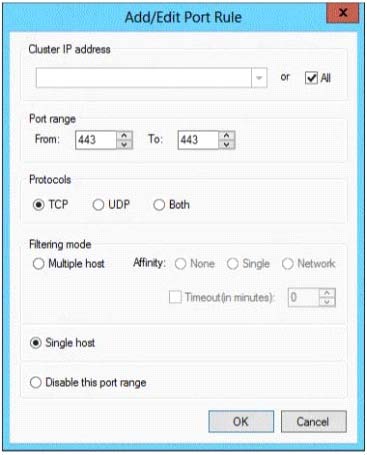

You configure the nodes to use the port rule shown in the exhibit. (Click the Exhibit button.)
You need to configure the NLB cluster to meet the following requirements:
HTTPS connections must be directed to Server1 if Serverl is available.
HTTP connections must be load balanced between the two nodes.
Which three actions should you perform? {Each correct answer presents part of the solution. Choose
three.
A.
From the host properties of Server2, set the Handling priority of the existing port rule to 2.
B.
Create a port rule for TCP port 80. Set the Filtering mode to Multiple host and set the Affinity to
None.
C.
Create an additional port rule for TCP port 443. Set the Filtering mode to Multiple host and set the
Affinity to Single.
D.
From the host properties of Server1, set the Handling priority of the existing port rule to 2.
E.
From the host properties of Server2, set the Priority (Unique host ID) value to 1.
F.
From the host properties of Server1, set the Handling priority of the existing port rule to 1.
Explanation:
Multiple hosts. This parameter specifies that multiple hosts in the cluster handle network traffic for
the associated port rule. This filtering mode provides scaled performance in addition to fault
tolerance by distributing the network load among multiple hosts. You can specify that the load be
equally distributed among the hosts or that each host handle a specified load weight.
Note: Handling priority: When Single host filtering mode is being used, this parameter specifies the
local host’s priority for handling the networking traffic for the associated port rule. The host with the
highest handling priority (lowest numerical value) for this rule among the current members of the
cluster will handle all of the traffic for this rule. The allowed values range from 1, the highest priority,
to the maximum number of hosts allowed (32). This value must be unique for all hosts in the cluster.Network Load Balancing parameters.
abf
0
0
Full questions
Your network contains two Web servers named Server1 and Server2. Server1 and Server2 are
nodes in a Network Load Balancing (NLB) cluster.
You configure the nodes to use the port rule shown in the exhibit. (Click the Exhibit button.)
You need to configure the NLB cluster to meet the following requirements:
– HTTPS connections must be directed to Server1 if Server1 is
available.
– HTTP connections must be load balanced between the two nodes.
Which three actions should you perform? (Each correct answer presents part of the solution.
Choose three.)
0
0
Can someone explain why is it A B F?
0
0
You have the same question here, and it’s complete: http://www.aiotestking.com/microsoft/which-three-actions-should-you-perform-205/.
Correct answers are A, B and F.
For https connections you need to use 443 port. For http connections use port 80.
For the existing port rule you only need to associate the handling priority of each host,that’s why you need A and F.
Since question also asks for “HTTP connections must be load balanced between the two nodes.” that’s why you need B, port 80.
1
0
https://technet.microsoft.com/nl-nl/library/cc759039(v=ws.10)
0
0
Thank you!
0
0
exactly as stated by mancamulas
0
0
A.
From the host properties of Server2, set the Handling priority of the existing port rule to 2.
B.
Create a port rule for TCP port 80. Set the Filtering mode to Multiple host and set the Affinity to
None.
F.
From the host properties of Server1, set the Handling priority of the existing port rule to 1.
