Your network contains an internal network and a perimeter network. The internal network contains
four offices. The perimeter network is located in a separate office. Each internal office has a direct
WAN link to all other internal offices.
Each of the four offices that make up the internal network is configured as an Active Directory site.

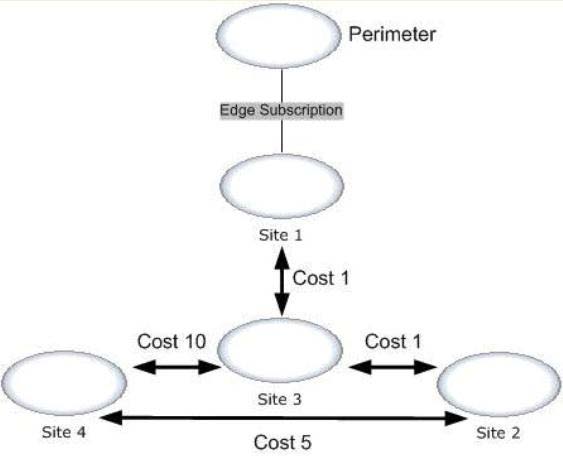

The Active Directory sites and site links are configured as shown in the exhibit. (Click the Exhibit
button.)

Your company has an Exchange Server 2013 organization. Each site contains two servers that have
the Mailbox server role and the Client Access server role installed.
To the perimeter network, you deploy two servers that have Exchange Server 2010 Service Pack 2
(SP2) and the Edge Transport server role installed. You configure an Edge Subscription to Site1.
You deploy a new email notification application to Site4. The application will send 25,000 email
messages daily to external recipients.
You need to identify which WAN links will have increased traffic from the new email application.
Which WAN link or links should you identify? (Each answer presents part of the solution. Choose all
that apply.)

A.
The WAN link between Site4 and the perimeter network

B.
The WAN link between Site4 and Site3

C.
The WAN link between Site1 and the perimeter network

D.
The WAN link between Site4 and Site1

E.
The WAN link between Site4 and Site2
