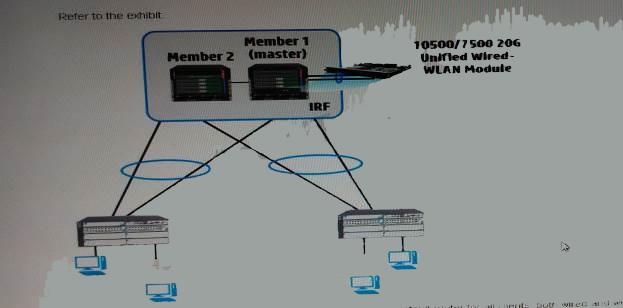

Refer to the exhibit.
The Intelligent Resilient Framework (IRF) virtual device is the default router for all clients, both
wired and wireless. The Unified Wired-WLAN Module controls the Aps, and wireless traffic is
distributed centrally. If IRF member 1 fails, which availability issue occurs?
A.
All wireless users have less bandwidth available to them.
B.
All users, wired and wireless, lose access
C.
All wired users lose access.
D.
All wireless users lose access.
Looks like the diagram shows wired connections trunked to member 1 and 2, and the Wired-WLAN connected only to Member 1? If so, the answer is D. Wired users would still be fine as IRF would fail over to Member 2, but the WLAN would go down.
