DRAG DROP
Your network contains an Active Directory domain named contoso.com. The domain contains two
servers named Server1 and Server3. The network contains a standalone server named Server2. All

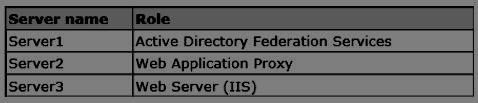

servers run Windows Server 2012 R2. The servers are configured as shown in the following table.
Server3 hosts an application named App1. App1 is accessible internally by using the URL
https://app1.contoso.com. App1 only supports Integrated Windows authentication.
You need to ensure that all users from the Internet are pre-authenticated before they can access App1.

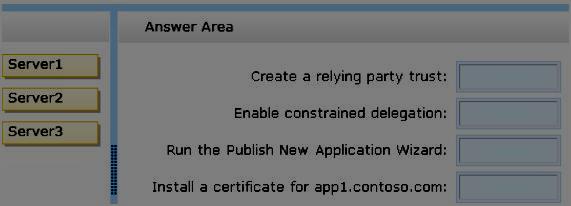

What should you do? To answer, drag the appropriate servers to the correct actions. Each server may be
used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to
view content.

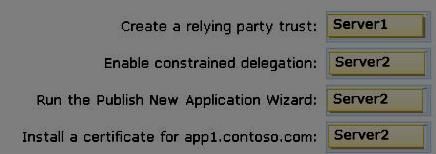

Answer:
Explanation:
Web application proxy Active Directory Federation Services relaying party trust
Note:
Box 1: add a new relying party trust by using the AD FS Management snap-in and manually configure the
settings on a federation server.
Box 2: When publishing applications that use Integrated Windows authentication, the Web Application
Proxy server uses Kerberos constrained delegation to authenticate users to the published application.
Box 3-4: To publish a claims-based application
1. On the Web Application Proxy server, in the Remote Access Management console, in
theNavigationpane, clickWeb Application Proxy, and then in theTaskspane, clickPublish.
2. On thePublish New Application Wizard, on theWelcomepage, clickNext.3. On thePreauthenticationpage, clickActive Directory Federation Services (AD FS), and then
clickNext.
4. On theRelying Partypage, in the list of relying parties select the relying party for the application
that you want to publish, and then clickNext.
5. On thePublishing Settingspage, do the following, and then clickNext:
o In theNamebox, enter a friendly name for the application.
This name is used only in the list of published applications in the Remote Access
Management console.
o In theExternal URLbox, enter the external URL for this application; for example,
https://sp.contoso.com/app1/.
o In theExternal certificatelist, select a certificate whose subject covers the external URL.
o In theBackend server URLbox, enter the URL of the backend server. Note that this value
is automatically entered when you enter the external URL and you should change it only
if the backend server URL is different; for example, http://sp/app1/.
