DRAG DROP
Your network contains four servers that run Windows Server 2012 R2.
Each server has the Failover Clustering feature installed. Each server has three network adapters
installed. An iSCSI SAN is available on the network.
You create a failover cluster named Cluster1. You add the servers to the cluster.

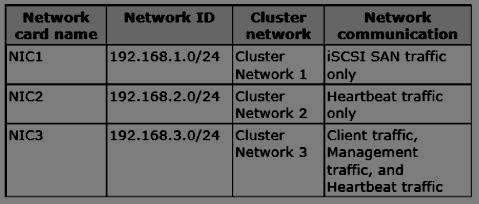

You plan to configure the network settings of each server node as shown in the following table.

You need to configure the network settings for Cluster1.
What should you do?
To answer, drag the appropriate network communication setting to the correct cluster network or
networks. Each network communication setting may be used once, more than once, or not at all. You
may need to drag the split bar between panes or scroll to view content.

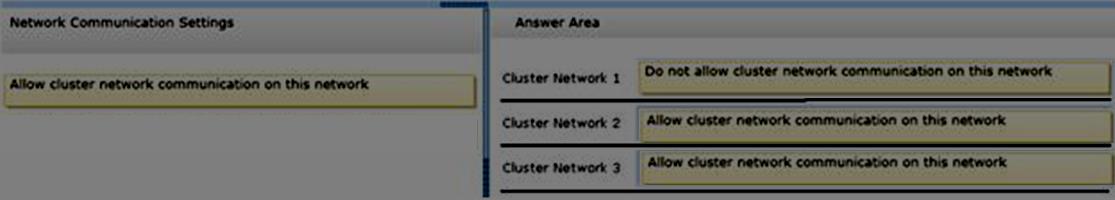

Answer:

Explanation:
If your cluster uses iSCSI or Fibre Channel over Ethernet (FCoE) for the cluster’s shared storage, this
traffic goes through an Ethernet network which the cluster will identify as a cluster network. To avoid
storage I/O performance being affected with iSCSI or FCoE, it is recommended that you provide a
dedicated network for storage traffic so that other network traffic does not interfere with this data. For
this reason it is recommended that you do not use this network for cluster traffic, live migration or any
other use. This can be configured by right-clicking on the network in Failover Cluster Manager, selecting
Properties, and selecting the radio button for “Do not allow cluster network communication on this
network”.
