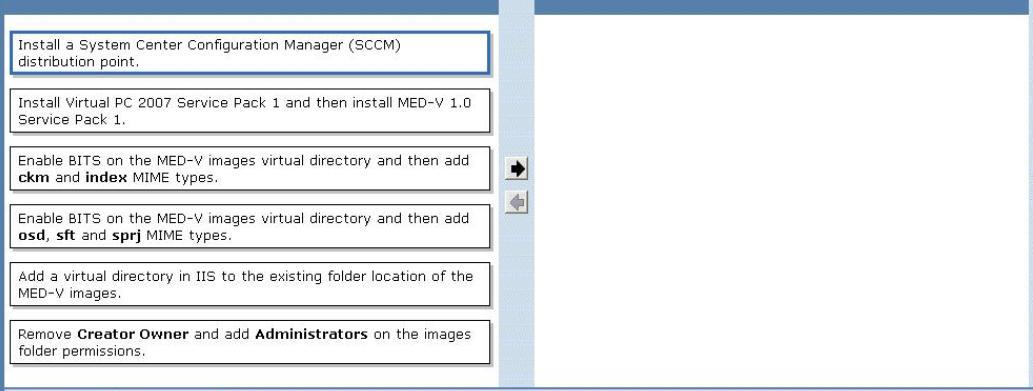

DRAG DROP
Your company is planning to use Microsoft Desktop Enterprise Virtualization (MED-V) 1.0 SP1 on
servers that run Windows Server 2008 SP2. The company plans to provide virtual desktops for all
client computers. You deploy a server to store and distribute virtual machines (VMs). You need to
configure the image distribution server for MED-V. Which three actions should you perform in
sequence? (To answer, move the appropriate actions from the list of actions to the answer area and
arrange them in the correct order.)

Answer:

Explanation:
MED-V Installation Prerequisites
The following are prerequisites for installing MED-V:
Active Directory Requirements
Report Database
Antivirus/Backup Software Configuration
Microsoft Virtual PC 2007 SP1
http://technet.microsoft.com/en-us/library/ff433629
How to Configure the Image Web Distribution Server
An image repository is an optional server that is used for image distribution (where administrators
upload new images and client computers check the server every 15 minutes and update their image
if a new one is available). An image distribution server requires the following: Internet Information
Services (IIS)—For information, see Internet Information Services. During the IIS installation, when
adding role services, select the following supported authentication methods:
Basic Authentication
Windows Authentication Client Certificate Mapping Authentication
When configuring IIS, include the following:
1. Add a virtual directory, with the alias named MEDVImages. The physical path should point to the
location of the images.
2. Enable BITS.
3. Add the following MIME types: ckm (application/octet-stream) index (application/octet-stream)
4. On the MED-V site, add read permissions to Everyone.
5. Restart IIS.
BITS Server Extensions for IIS—For information, see Install BITS Server Extensions.
http://technet.microsoft.com/en-us/library/ff433547.aspx
Goog guide from MS:
http://blogs.technet.com/b/medv/archive/2009/07/21/full-guide-to-med-v-server-settings.aspx
