HOTSPOT
Your network contains an Active Directory domain named contoso.com.
Technicians use Windows Deployment Services {WDS) to deploy Windows Server 2012 R2.
The network contains a server named Server1 that runs Windows Server 2012 R2. Server1 has the
Hyper-V server role installed.
You need to ensure that you can use WDS to deploy Windows Server 2012 R2 to a virtual machine
named VM1.
Which settings should you configure?

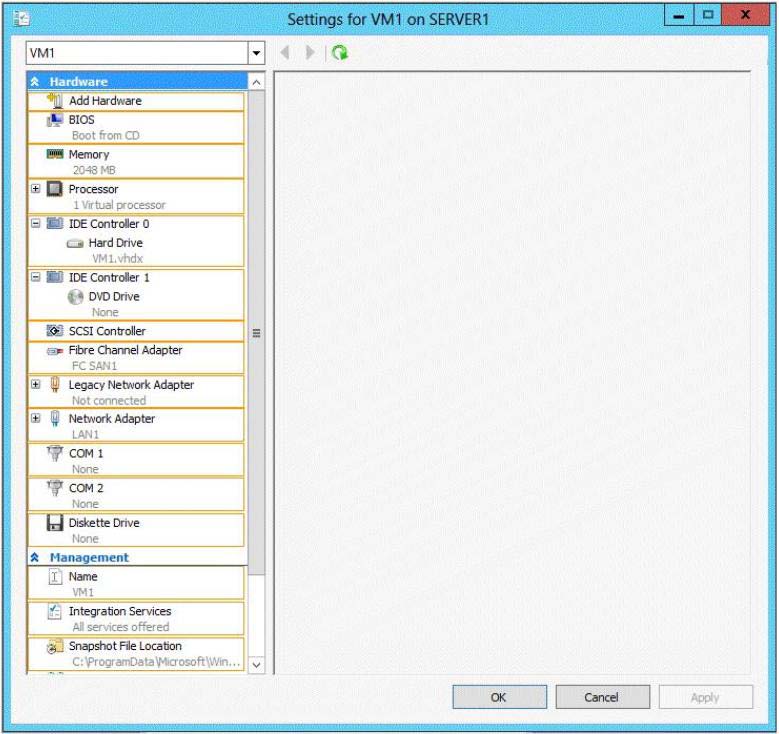

To answer, select the appropriate settings in the answer area.

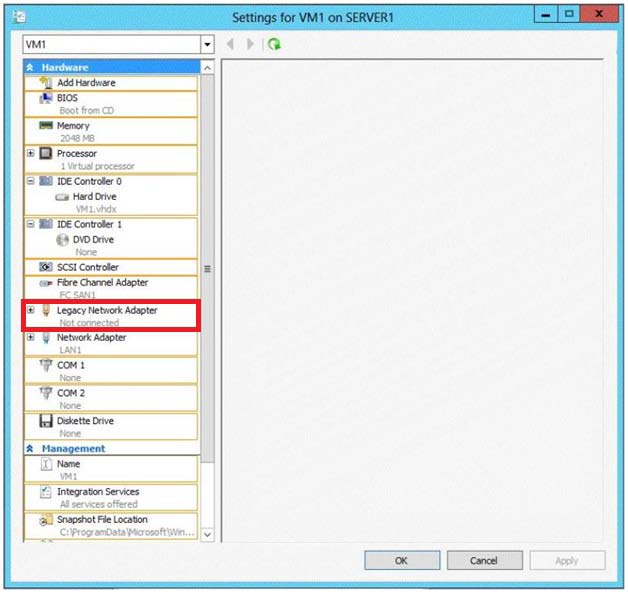

Answer:
Explanation:
WDS Allows network-based installation of Windows operating systems, which reduces the
complexity and cost when compared to manual installations. Thus you should configure the
appropriate network settings.
References:
http://technet.microsoft.com/en-us/library/hh831764.aspx
Anyone else noticed the bios setting says boot from cd first, and the legacy network card is not connected?
0
0
When no CD detected the boot process will proceed down the chain, so we need to configure the legacy adaptor so it will do PXE boot.
0
0
Correct answer is to modify the bios settings
0
0
Correct Answer is BIOS!
This VM already has a Legacy Network Card. There is nothing to “configure” on this card to enable PXE Boot, it only has to exist.
We can see this VM has an IDE Drive and by default IDE is above Legacy Network adapter in the Startup Order. Therefor, you go into BIOS settings and to move Legacy Network adapter above IDE in the startup order.
0
0
Legacy Network Card is Not connected
0
0
In this case, there are two answers, the boot order has to be changed and the legacy network adaptor needs to be attached to a switch. There is no image file attached, so it will attempt to boot from cd first then fail because no cd is present. Then it will attempt to boot from the ide controller. there is a virtual disk attached to that, so it will boot, then err, no operating system found
0
0
The given answer is correct!!! Only one answer, connect the Legacy Adapter to a network.
Yes, the boot order is STARTING with CD, but it will move on down the list (which also includes the HDD and Network boot) until it finds something that it can boot from. There is no disc in the drive, so it will move onto the next item, say HDD. No OS installed, so it moves on, finally, to Network. As it currently sits, the network boot will also fail as the Legacy Adapter is not connected to any network. And remember, you can only PXE boot from a Legacy Adapter. So you must connect the Legacy adapter to the correct network. Once that is done, it will PXE boot.
