DRAG DROP
You are configuring a test network. The test network contains a subnet named LAN1. LAN1 uses the
network ID of 10.10.1.0/27.
You plan to add a new subnet named LAN2 to the test network.
LAN1 and LAN2 will be connected by a router.
You need to identify a valid network ID for LAN2 that meets the following requirements:
Ensures that hosts on LAN2 can communicate with hosts on LAN1.
Supports at least 100 IPv4 hosts.
Uses only private IP addresses.

Which network ID should you use?
To answer, drag the appropriate network ID and subnet mask to the correct location in the answer
area.

Answer:

Explanation:

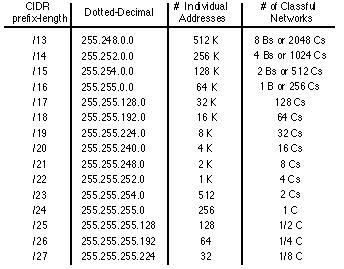

The Subnet Mask specifies which bits of the IP address identify the host system and which bits
identify the network where the host system resides.

References:
Exam Ref: 70-410: Installing and Configuring Windows Server 2012 R2, Chapter4: Deploying and
configuring core network services, Objective 4.1: Configure IPv4 and IPv6 addressing, p.192, 196
