HOTSPOT
You have a server named Server1 that runs Windows Server 2016. Server1 is a Hyper-V host.
You run the commands shown in the following graphic:

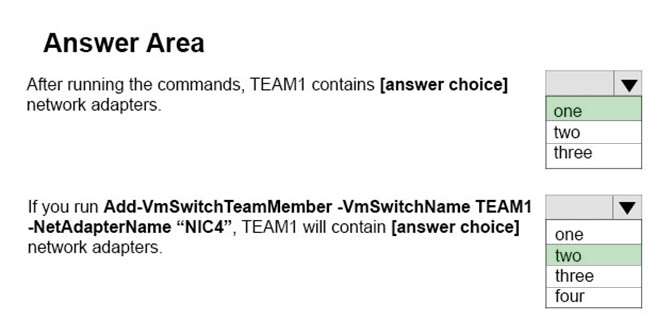

Use the drop-down menus to select the answer choice that completes each statement based on the information
presented in the graphic.
Hot Area:
Explanation:
Agree with the answer
1
12
Correct.
0
11
The graphic is so tiny that is it hard to read.
Second command is Set-VmSwitch and adds NIC 1.
0
7
Correct answer: Two then Three
PS C:\> Get-NetAdapter
Name InterfaceDescription ifIndex Status MacAddress LinkSpeed
—- ——————– ——- —— ———- ———
vEthernet (vSwitch2) Hyper-V Virtual Ethernet Adapter #2 15 Up 00-0C-29-87-42-5A 1 Gbps
Ethernet3 Intel(R) 82574L Gigabit Network Co…#3 6 Up 00-0C-29-87-42-78 1 Gbps
vEthernet (vSwitch1) Hyper-V Virtual Ethernet Adapter 10 Up 00-0C-29-87-42-64 1 Gbps
Ethernet2 Intel(R) 82574L Gigabit Network Co…#4 18 Up 00-0C-29-87-42-6E 1 Gbps
Ethernet1 Intel(R) 82574L Gigabit Network Co…#2 3 Up 00-0C-29-87-42-64 1 Gbps
Ethernet0 Intel(R) 82574L Gigabit Network Conn… 11 Up 00-0C-29-87-42-5A 1 Gbps
PS C:\> New-VMSwitch -Name TEAM1 -NetAdapterName “Ethernet2”, “Ethernet3” -EnableEmbeddedTeaming $true
Name SwitchType NetAdapterInterfaceDescription
—- ———- ——————————
TEAM1 External Teamed-Interface
PS C:\> (get-vmswitch TEAM1).NetAdapterInterfaceDescriptions
Intel(R) 82574L Gigabit Network Connection #4
Intel(R) 82574L Gigabit Network Connection #3
PS C:\> Set-VMSwitch -Name TEAM1 -NetAdapterName “Ethernet2”
Set-VMSwitch : The switch type and member NICs of the VMSwitch with NIC Teaming enabled cannot be changed with Set-VMSwitch.
At line:1 char:1
+ Set-VMSwitch -Name TEAM1 -NetAdapterName “Ethernet2”
+ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
+ CategoryInfo : InvalidArgument: (:) [Set-VMSwitch], VirtualizationException
+ FullyQualifiedErrorId : InvalidParameter,Microsoft.HyperV.PowerShell.Commands.SetVMSwitch
PS C:\> (get-vmswitch TEAM1).NetAdapterInterfaceDescriptions
Intel(R) 82574L Gigabit Network Connection #4
Intel(R) 82574L Gigabit Network Connection #3
PS C:\> Add-VMSwitchTeamMember -VmSwitchName TEAM1 -NetAdapterName “Ethernet0”
PS C:\> (get-vmswitch TEAM1).NetAdapterInterfaceDescriptions
Intel(R) 82574L Gigabit Network Connection #4
Intel(R) 82574L Gigabit Network Connection #3
Intel(R) 82574L Gigabit Network Connection
PS C:\>
25
1
Chris is right.
12
2
Agree.
3
1
you are right
The second command is not correct,
to add or remove a SET team member the correct command is
Set-VMSwitchTeam that includes the NetAdapterName option, not Set-VMSwitch. To change the team members in a SET team, enter the desired list of team members after the NetAdapterName option.
https://docs.microsoft.com/en-us/windows-server/virtualization/hyper-v-virtual-switch/rdma-and-switch-embedded-teaming
2
0
part1
New-VmSwitch -name TEAM1 -NetAdapterName “NIC1″,”NIC2” -EnableEm……
TWO members NIC1 and NIC2
Set-VmSwitch -name TEAM1 -NetAdapterName “NIC1”
Member NIC2 was remove from TEAM1
RESULT
ONE member TEAM1 NIC1.
part2
Add-VMSwitchTeamMember -VmSwitchName TEAM1 -NetAdapterName “NIC4”
RESULT
Two member TEAM1 NIC1 and NIC4
answer is OK
