You plan to deploy a Lync Server 2013 Edge Server infrastructure. The Edge Server deployment will be configured as shown in the following table.

You need to configure the DNS records for Server1 to support the following features:
Automatic client sign-in
Discovery of federated partners
Which DNS records should you configure?
To answer, configure the correct service, protocol, and host for each SRV record in the answer area.

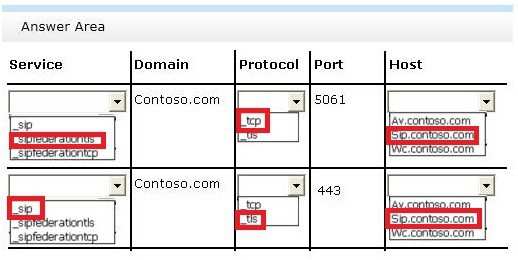

Hot Area:

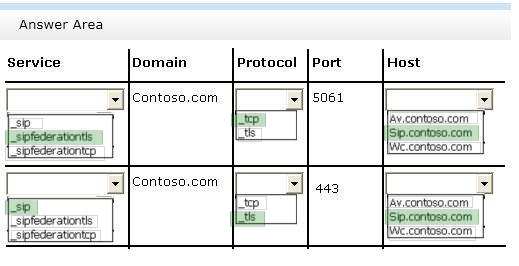

Answer:

Explanation:

Note:
* the Edge generally only listens on port 5061 if you have Federation enabled
* Port, protocol and firewall requirements for federation with Microsoft Lync Server 2013, Lync Server 2010 and Office Communications Server are similar to those
for the deployed Edge Server. Clients initiate communication with the Access Edge service over TLS/SIP/TCP 443. Federated partners however, will initiate
communications to the Access Edge service over MTLS/SIP/TCP 5061.
Port Summary – Lync Server and Office Communications Server Federation
