###BeginCaseStudy###
Case Study 6: Contoso Ltd Case D
Overview
Contoso, Ltd., is a manufacturing company that makes several different components that are used in automobile production. Contoso has a main office in Detroit, a
distribution center in Chicago, and branch offices in Dallas, Atlanta, and San Diego. The contoso.com forest and domain functional level are Windows Server 2008
R2. All servers run Windows Server 2012 R2, and all client workstations run Windows 7 or Windows 8. Contoso uses System Center 2012 Operations Manager and
Audit Collection Services (ACS) to monitor the environment. There is no certification authority (CA) in the environment.
Current Environment
The contoso.com domain contains the servers as shown in the following table:

Contoso sales staff travel within the United States and connect to a VPN by using mobile devices to access the corporate network. Sales users authenticate to the
VPN by using their Active Directory usernames and passwords. The VPN solution also supports certification-based authentication.
Contoso uses an inventory system that requires manually counting products and entering that count into a database. Contoso purchases new inventory software
that supports wireless handheld scanners and several wireless handheld scanners. The wireless handheld scanners run a third party operating system that supports
the Network Device Enrollment Service (NDES).
Business Requirements
Security
The wireless handheld scanners must use certification-based authentication to access the wireless network.
Sales users who use mobile devices must use certification-based authentication to access the VPN. When sales users leave the company, Contoso administrators
must be able to disable their VPN access by revoking their certificates.
Monitoring
All servers must be monitored by using System Center 2012 Operating Manager. In addition to monitoring the Windows operating system, you must collect security
logs from the CA servers by using ACS, and monitor the services that run on the CA and Certificate Revocation List (CRL) servers, such as certification authority
and web services.

Technical Requirements
CA Hierarchy
Contoso requires a two-tier CA hierarchy. The CA hierarchy must include a stand-alone offline root and two Active Directory-integrated issuing CAs: one for issuing
certificates to domain-joined devices, and one for issuing certificates to non-domain-joined devices by using the NDES. CRLs must be published to two web servers:
one in Detroit and one in Chicago.
Contoso has servers that run Windows Server 2012 R2 to use for the CA hierarchy. The servers are described in the following table:

The IT security department must have the necessary permissions to manage the CA and CRL servers. A domain group named Corp-IT Security must be used for
this purpose.

The IT security department users are not domain admins.
Fault Tolerance
The servers that host the CRL must be part of a Windows Network Load Balancing (NLB) cluster. The CRL must be available to users in all locations by using the
hostname crl.contoso.com, even if one of the underlying web servers is offline.

###EndCaseStudy###

Drag and Drop Question
You need to collect the required security logs.

Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the
correct order.

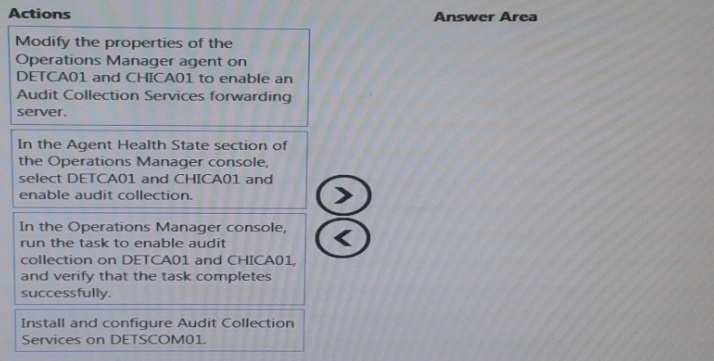

Select and Place:

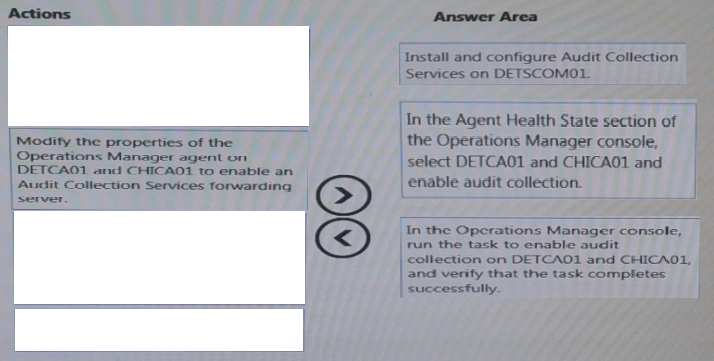

Answer:

Explanation:
Note:
* Audit collection services (Box 1)
In System Center 2012 – Operations Manager, Audit Collection Services (ACS) provides a means to collect records generated by an audit policy and store them in a
centralized database.
ACS requires the following components: ACS Forwarders, ACS Collector, ACS Database
* ACS Forwarders (box 2)
The service that runs on ACS forwarders is included in the Operations Manager agent. By default, this service is installed but not enabled when the Operations
Manager agent is installed. You can enable this service for multiple agent computers at the same time using the Enable Audit Collection task.
* (box 3) Enable audit collection
. After you install the ACS collector and database you can then remotely enable this service on multiple agents through the Operations Manager console by running
the Enable Audit Collection task.
To enable audit collection on Operations Manager agents (see step 5 below)
Log on to the computer with an account that is a member of the Operations Manager Administrators role. This account must also have the rights of a local
administrator on each agent computer that you want to enable as an ACS forwarder.
In the Operations console, click Monitoring.

In the navigation pane, expand Operations Manager, expand Agent Details, and then click Agent Health State. This view has two panes, and the actions in this
procedure are performed in the right pane.
In the details pane, click all agents that you want to enable as ACS forwarders. You can make multiple selections by pressing CTRL or SHIFT.
In the Actions pane, under Health Service Tasks, click Enable Audit Collection to open the Run Task – Enable Audit Collection dialog box.
Etc
