HOTSPOT

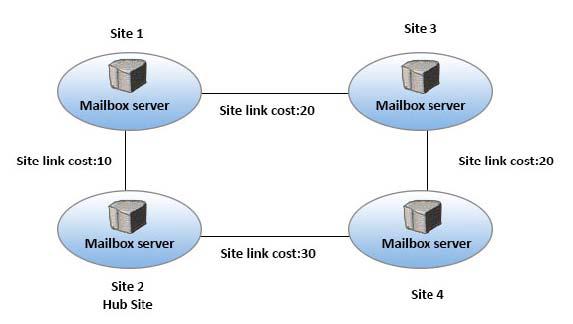

You have an Exchange Server 2016 organization. The Active directory sites are configured as shown in the
following graphic.

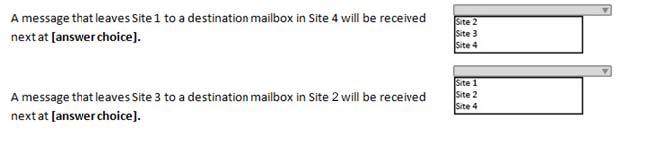

Use the drop-down menus to select the answer choice that completes each statement based on the
information presented in the graphic
Answer:
A message that leaves Site 3 to a destination mailbox in Site 2 will be sent directly to Site 2, because by default all IP site links are transitive.
“It’s important to note that Exchange uses site links when determining the least-cost path, but will always try to deliver messages directly to the destination Exchange server.”
source: https://technet.microsoft.com/en-us/library/jj916681(v=exchg.150).aspx
The correct answer is:
Site 2 (because it’s a hub site)
Site 2 (because it’s the destination and there are no other hub sites between site 3 and site 2)
1
0
on the exam SITE 4 is a also HUB ..so the answer will be site 4 in second answer.
1
0
No, Rambo. If Site4 would be a HUB Site, it still isn’t in least-cost path (20 + 30 > 20 + 10) and message would be send directly to Site2
1
0
Absolutely correct.
0
0
In regards to Marco answer I don’t agreed. Yes, IP site links are transitive but in a full mesh topology. The diagram illustrated in the question seems to reflect a hub topology. Thus, Site 2 would correspond to the first part of the question, and Site 1 would correspond to the second part has it is the least cost routing path.
0
0
That’s very interesting point GRod.. Do we actually know, what is the real network topology. We only see Sites and Site link costs..
0
0
Mail routing
https://technet.microsoft.com/en-us/library/aa998825(v=exchg.160).aspx
0
0
Marco is correct.
https://technet.microsoft.com/en-us/library/jj916681(v=exchg.160)#SiteLinkCost
1
0
Agree with Marco
Site 2 (same cost, but with hub site)
Site 2 (sent directly)
1
0
The presence of one or more hub sites along the least-cost routing path If the least-cost routing path to the primary site contains any hub sites, the message must be routed through the hub sites. The closest hub site along the least-cost routing path is selected as a new delivery group of the type AD site, which includes all transport servers in the hub site. After the message traverses the hub site, routing of the message along the least-cost routing path continues. If the primary site happens to be a hub site, the primary site is still considered a hub site for the following reasons:
If the destination delivery group spans multiple Active Directory sites, the source server should only attempt to connect to the servers in the hub site.
The servers in the hub site that belong to the target delivery group are preferred.
As in previous version of Exchange, hub sites that aren’t in the least-cost routing path to the primary site are ignored.
0
0
I do agree with Macro, In either case it is Site 2.
1- Hubsite in the least cost path, next hop at Site 2 (HubSite), before delivering to Site 4.
2. Hubsite is not in the least cost path, Sent directly to the destination (Site 2). Exchaneg Always try to deliver the message directly to the target Exchange, unless the later is not reachable, in which case the message is queued at the nearest HUB transport server.
1
0
Agree wtih Marco. There are 2 rules to follow:
– If the Hub site is not along the least cost routing path, the message tries to deliver to the Exchange server directly.
– If the target server is not reachable, Exchange tries to deliver the message to the closest destination possible along the least cost routing path.
Based on those 2 rules, the answers are:
1. site2 (the hub site has a link cost of 10, which is the least cost routing path (#1) )
2. site2 (from site 3, neither path are least cost routing paths and hub site is not at the next hop (#1), therefore a direct delivery to site2 is done by Exchange).
Same thing applies to this question:
http://www.aiotestking.com/microsoft/use-the-drop-down-menus-to-select-the-answer-choice-that-completes-each-statement-based-on-2/
0
0
Marco and others are incorrect..
The following figure shows how IP site link costs affect routing to a hub site. In this scenario, Site B has been designated as a hub site. However, Site B doesn’t exist along the least-cost routing path between any other sites. Therefore, messages that are relayed from Site A to Site D are never relayed through Site B. An Active Directory site is never used as a hub site if it isn’t on the least-cost routing path between two other sites.
HUB SERVER HAS TO BE ON LEAST ROUTING COST PATH. Focus people..
0
1
The following figure shows how IP site link costs affect routing to a hub site. In this scenario, Site B has been designated as a hub site. However, Site B doesn’t exist along the least-cost routing path between any other sites. Therefore, messages that are relayed from Site A to Site D are never relayed through Site B. An Active Directory site is never used as a hub site if it isn’t on the least-cost routing path between two other sites.
Site 2:
Site 1:
Is the correct answer
0
1
Help me understand please, why does it have to go through site 1? Even you mentioned that a hub server is not used to route email unless it is on the least costing path.
Site 1 is not a hub site, I don’t see why the email from Site 3 can’t be delivered directly to Site 2, what am I missing?
0
0
