Which show command will display only the Type 5 LSAs in the OSPF topology database?
Select the best response.

Which BGP path attribute is Cisco proprietary? Select the best response.

Which BGP attribute is used by BGP to prevent routing loops? Select the best response.

The 192.168.0.0 network is not being propagated throughout the network. Observe the BGP
configuration commands from the advertising router.What is the reason the 192.168.0.0
route is not being advertised?
router bgp 65111
neighbor 172.16.1.1 remote-as 65111
neighbor 172.16.2.1 remote-as 65112
network 192.168.0.0
network 10.0.0.0
!
ip route 192.168.0.0 255.255.0.0 null0
Select the best response.

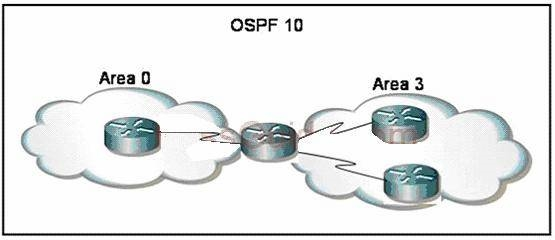

Refer to the diagram. Which OSPF configuration command is required to configure Area 3
as a totally stubby area? Select the best response.

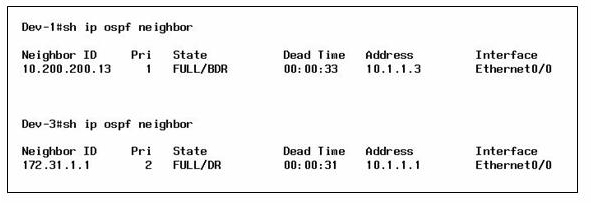

The Dev-1 and Dev-3 routers are OSPF neighbors overthe Ethernet 0/0 connection. Based
on the show ip ospf neighbor output from the Dev-1 and Dev-3 routers, which statement is
true? Select the best response.

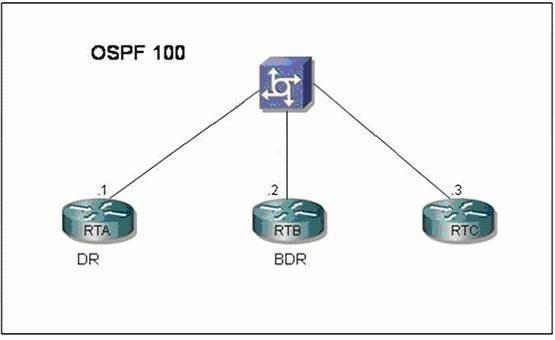

During a recent OSPF election among three routers, RTA was elected the DR and RTB was
elected the BDR, as seen in the graphic. Assume that RTA fails, and that RTB takes the
place of the DR while RTC becomes the new BDR.
What will happen when RTA comes back online?

Which three are characteristics of IPv6? (Choose three.)

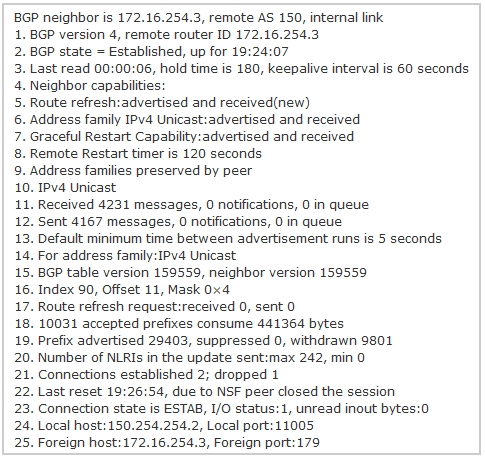

Above is the output from show ip bgp neighbors command. What is line 21 stating about the
BGP connection? Select the best response.

Given the accompanying output, which additional command is needed to redistribute IGRP
into EIGRP?
router eigrp 123
network 10.10.10.0
no auto-summary
!
router igrp 123
network 172.16.0.0
network 172.17.0.0
Select the best response.
