OSPF is configured over a Frame Relay network as shown in the exhibit. All PVCs are
active. However, R1 and R3 fail to see all OSPF routes in their routing tables. The show ip
ospf neighbor command executed on R2 shows the state of the neighbors. What should be
done to fix the problem? Select the best response.

Which statement is true about EBGP? Select the bestresponse.

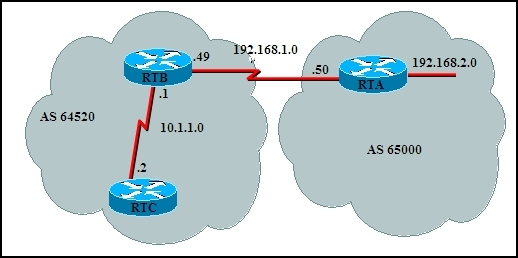

Refer to the exhibit. By default, when RTB passes BGP advertisements from RTA about
network 192.168.2.0 to RTC, what address will be listed as the next-hop address? Select
the best response.

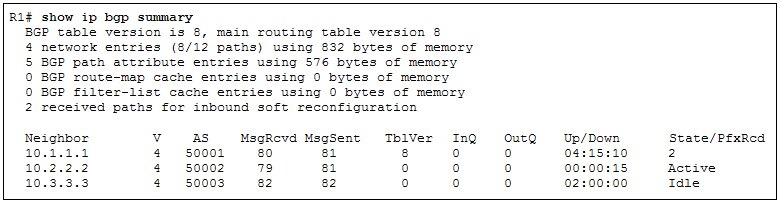

Based on the show ip bgp summary output, which two statements are true? (Choose two.)

Based on the exhibited output, which three statements are true? (Choose three.)
R1#show ip eigrp topology
IP-EIGRP Topology Table for process 200
Codes: P – Passive, A – Active, U – Update, Q – Query, R -Reply, r – Reply Status
P 192.168.1.64/28 1 successors, FD is 281600 via Connected,
Ethernet0
P 192.168.1.32/28 2 successors, FD is 40512000 via Connected,
Serial1
P 192.168.1.48/28 1 successors, FD is 40537600
via 192.168.1.66, (40537600/40512000), Ethernet0
via 192.168.1.17, (41024000/40512000), Serial0
via 192.168.1.33, (41024000/40512000), Serial1
P 192.168.1.16/28 1 successors, FD is 40512000 via Connected,
Serial0

When an IPv6 enabled host boots, it sends a router solicitation (RS) message. An IPv6
router responds with a router advertisement (RA).
Which two items are contained in the RA? (Choose two.)

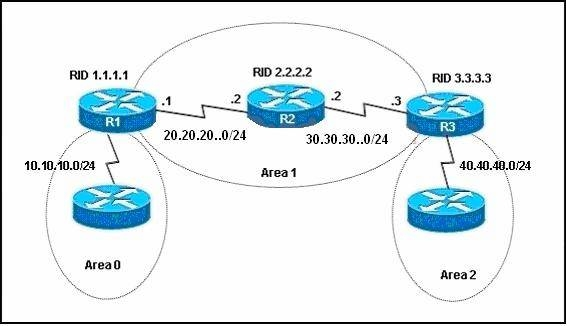

Refer to the exhibit. During the process of configuring a virtual link to connect area 2 with
the backbone area, the network administrator received this console message on R3:
*Mar 1 00:25:01.084: %OSPF-4-ERRRCV: Received invalid packet:
mismatch area ID, from backbone area must be virtual link but not
found from 20.20.20.1, Serial 0
How should the virtual link be configured on the OSPF routers to establish full connectivity
between the areas?

How is network layer addressing accomplished in theOSI protocol suite? Select the best
response.

Refer to the exhibit. All routers have simultaneously been reloaded, and the DR election has
concluded as expected. Which state is RTC in?

Which statement is true about IBGP routers? Select the best response.
