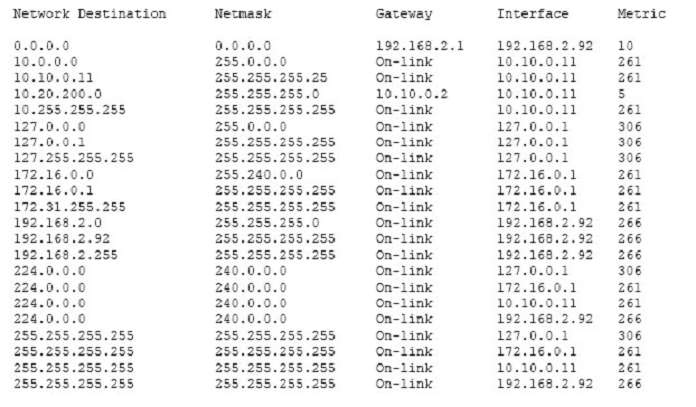

You have a server named Server1 that runs Windows Server 2016. Server1 has the following routing table.
What will occur when Server1 attempts to connect to a host that has an IP address of 172.20.10.50?
A.
Server1 will attempt to connect directly to 172.20.10.50.
B.
Server1 will route the connection to 10.10.0.2.
C.
Server1 will silently drop the connection attempt.
D.
Server1 will route the connection to 192.168.2.1.
Explanation:
http://www.techrepublic.com/article/understanding-routing-tables/
On-link are addresses that can be resolved locally.
There is a on-link route for 172.16.0.0/255.240.0.0.
Addresses for the above subnet: 172.16.0.1-172.31.255.254
Hence the on-link route will be activated and correct answer is not D but A.
