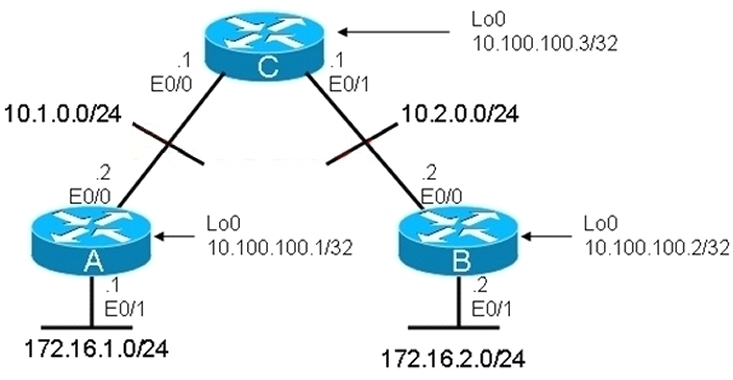

Refer to the exhibits. You are verifying your OSPF implementation, and it does not seem to
be functioning properly.
What can you conclude from the exhibit and the showrunning-configuration command
output?

RouterA#
~~~~~
!
router ospf 1
log-adjacency-changes
network 10.0.0.0 0.255.255.255 area 1
network 172.16.1.0 0.0.0.255 area 1
!
~~~~~
RouterB#
~~~~~
router ospf 1
log-adjacency-changes
network 10.0.0.0 0.255.255.255 area 2
network 172.16.2.0 0.0.0.255 area 2
!
~~~~~
RouterC#
~~~~~
!
router ospf 1
log-adjacency-changes
network 10.0.0.0 0.255.255.255 area 0
!
~~~~~

A.
The OSPF areas are not configured correctly.

B.
The wildcard masks for the 10.x.x.x networks are incorrect.

C.
The 172.16.x.x networks need to be connected to area 0 using virtual links.

D.
The 172.16.x.x networks are discontiguous. OSPF is automatically summarizing them to
172.16.0.0/16 and data is being “black holed.”

E.
There is not enough information to make a determination.

Explanation:
The E0/0 & E0/1 interfaces of router C belong to area 0 while E0/0 of router A belongs to
area 1; E0/0 of router B belongs to area 2 -> it isnot correct. Both E0/0 interfaces of router
A & B should be in area 0
