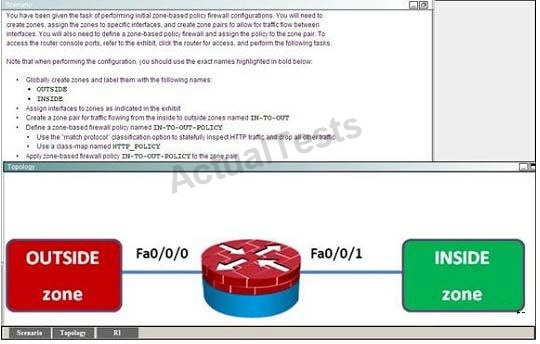

To access the router console port, refer to the Exhibit, click the router for access and perform the following

CORRECT TEXT
To access the router console port, refer to the Exhibit, click the router for access and perform the following tasks.

PrepAway - Latest Free Exam Questions & Answers

Answer:

Explanation:
Router(config)# zone security INSIDE
Router(config-sec-zone)#exit
Router(config)# zone security OUTSIDE
Router(config-sec-zone)#exit
Router(config)# interface fa0/0/1
Router(config-if)# no shutdown
Router(config-if)# zone-member security INSIDE
Router(config-if)# exit
Router(config)# interface fa0/0/0
Router(config-if)# no shutdown
Router(config-if)# zone-member security OUTSIDE
Router(config-if)# exit
Router(config)# class-map type inspect match-any HTTP_POLICY
Router(config-cmap)# match protocol http
Router(config-cmap)#exit
Router(config)# policy-map type inspect IN-TO-OUT-POLICY
Router(config-pmap)# class type inspect HTTP_POLICY
Router(config-pmap-c)# inspect
Router(config-pmap-c)# exit
Router(config)# zone-pair security IN-TO-OUT source INSIDE destination OUTSIDE
Router(config-sec-zone-pair)# service-policy type inspect IN-TO-OUT-POLICY
Router(config-sec-zone-pair)# end
Router(config)# copy running-config startup-config

1: we divide the network into 2 zones: INSIDE and OUTSIDE
2: apply the interfaces to the appropriate Zone Members INSIDE | OUTSIDE
3: create a class-map with defined name HTTP_POLICY > match HTTP protocol
4: create a policy-map name IN-TO-OUT-POLICY: – define the class-map and apply action > inspect
5: create a zone-pair > specify direction with source and destination
6: apply policy to the zone-pair – policy created in step 4
7: std: copy run start
