CORRECT TEXT
The task is to create and apply an access-list with no more than three statements that will allow ONLY host C web access to the Finance Web Server.

CORRECT TEXT

Lab- CLI

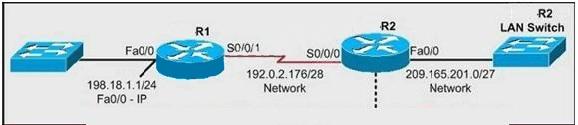

Central Florida Widgets recently installed a new router in their office. Complete the network
installation by performing the initial router configurations and configuring R1PV2 routing using the
router command line interface (CLI) on the RC.
Configure the router per the following requirements:
Name of the router is R2
Enable. secret password is cisco
The password to access user EXEC mode using the console is cisco2
The password to allow telnet access to the router is cisco3
IPV4 addresses mast be configured as follows:
Ethernet network 209.165.201.0/27 – router has fourth assignable host address in subnet
Serial network is 192.0.2.176/28 – router has last assignable host address in the subnet.
Interfaces should be enabled.
Router protocol is RIPV2
Attention:
In practical examinations, please note the following, the actual information will prevail.
1. Name of the router is xxx
2. Enable. secret password is xxx
3. Password In access user EXEC mode using the console is xxx
4. The password to allow telnet access to the router is xxx
5. IP information

CORRECT TEXT
EIGRP
After adding RTR_2 router, no routing updates are being exchanged between RTR_1 and the new
location. All other inter connectivity and internet accesses for the existing locations of the company
are working properly.

The task is to identify the fault(s) and correct the router configuration to provide full connectivity
between the routers.
Access to the router CLI can be gained by clicking on the appropriate host.
All passwords on all routers are Cisco.
IP addresses are listed in the chart below.
RTR_A#show run
! !
interface FastEthernet0/0
ip address 192.168.60.97 255.255.255.240
!
interface FastEthernet0/1
ip address 192.168.60.113 255.255.255.240
!
interface Serial0/0

ip address 192.168.36.14 255.255.255.252
!
router eigrp 212
network 192.168.36.0
network 192.168.60.0
no auto-summary
!
RTR_A#show ip route
192.168.36.0/30 is subnetted, 1 subnets
C 192.168.36.12 is directly connected, Serial 0/0
192.168.60.0/24 is variably subnetted, 5 subnets, 2 masks
C 192.168.60.96/28 is directly connected, FastEthernet0/0
C 192.168.60.112/28 is directly connected, FastEthernet0/1
D 192.168.60.128/28 [ 90/21026560 ] via 192.168.36.13, 00:00:57, Serial 0/0
D 192.168.60.144/28 [ 90/21026560 ] via 192.168.36.13, 00:00:57, Serial 0/0
D 192.168.60.24/30 [ 90/21026560 ] via 192.168.36.13, 00:00:57, Serial 0/0
D* 198.0.18.0 [ 90/21026560 ] via 192.168.36.13, 00:00:57, Serial 0/0
*******************************************************************************
RTR_2#show run
! !
interface FastEthernet0/0
ip address 192.168.77.34 255.255.255.252
!
interface FastEthernet0/1
ip address 192.168.60.65 255.255.255.240
!

interface FastEthernet1/0
ip address 192.168.60.81 255.255.255.240
! !
router eigrp 22
network 192.168.77.0
network 192.168.60.0
no auto-summary
!
RTR_2#show ip route
192.168.60.0/28 is variably subnetted, 2 subnets
C 192.168.60.80 is directly connected, FastEthernet1/0
C 192.168.60.64 is directly connected, FastEthernet0/1
192.168.77.0/30 is subnetted, 1 subnets
C 192.168.77.32 is directly connected, FastEthernet0/0
**********************************************************
RTR_B#show run
!
interface FastEthernet0/0
ip address 192.168.60.129 255.255.255.240
!
interface FastEthernet0/1
ip address 192.168.60.145 255.255.255.240
!
interface Serial0/1
ip address 192.168.60.26 255.255.255.252
!

router eigrp 212
network 192.168.60.0
!
RTR_B#show ip route
192.168.60.0/24 is variably subnetted, 5 subnets, 2 masks
C 192.168.60.24/30 is directly connected, Serial0/1
C 192.168.60.128/28 is directly connected, FastEthernet0/0
C 192.168.60.144/28 is directly connected, FastEthernet0/1
D 192.168.60.96/28 [ 90/21026560 ] via 192.168.60.25, 00:00:57, Serial 0/1
D 192.168.60.112/28 [ 90/21026560 ] via 192.168.60.25, 00:00:57, Serial 0/1
192.168.36.0/30 is subnetted, 1 subnets
D 192.168.36.12 [ 90/21026560 ] via 192.168.60.25, 00:00:57, Serial 0/1
D* 198.0.18.0 [ 90/21026560 ] via 192.168.60.25, 00:00:57, Serial 0/1
**************************************************************************
RTR_1#show run
! !
interface FastEthernet0/0
ip address 192.168.77.33 255.255.255.252
!
interface Serial1/0
ip address 198.0.18.6 255.255.255.0
clockrate 64000
! !
interface Serial0/0
ip address 192.168.36.13 255.255.255.252

clockrate 64000
!
interface Serial0/1
ip address 192.168.60.25 255.255.255.252
clockrate 64000
! !
router eigrp 212
network 192.168.36.0
network 192.168.60.0
network 192.168.85.0
network 198.0.18.0
no auto-summary
!
ip classless
ip default-network 198.0.18.0
ip route 0.0.0.0 0.0.0.0 198.0.18.5
ip http server
RTR_1#show ip route
192.168.36.0/30 is subnetted, 1 subnets
C 192.168.36.12 is directly connected, Serial 0/0
192.168.60.0/24 is variably subnetted, 5 subnets, 2 masks
C 192.168.60.24/30 is directly connected, Serial0/1
D 192.168.60.128/28 [ 90/21026560 ] via 192.168.60.26, 00:00:57, Serial 0/1
D 192.168.60.144/28 [ 90/21026560 ] via 192.168.60.26, 00:00:57, Serial 0/1
D 192.168.60.96/28 [ 90/21026560 ] via 192.168.36.14, 00:00:57, Serial 0/0
192.168.77.0/30 is subnetted, 1 subnets

C 192.168.77.32 is directly connected, FastEthernet0/0
C 192.0.18.0/24 is directly connected, Serial 1/0
*S 0.0.0.0 via 198.0.18.5

CORRECT TEXT

A network associate is configuring a router for the Munford company to provide internet access.
The ISP has provided the company six public IP addresses of 198.18.154.57 198.18.154.62.
The company has 30 hosts that need to access the internet simultaneously. The hosts in the
company LAN have been assigned private space addresses in the range of 192.168.42.65 –
192.168.42.94.
The following have already been configured on the router
– The basic router configuration
– The appropriate interfaces have been configured for NAT inside and NAT outside

DRAG DROP

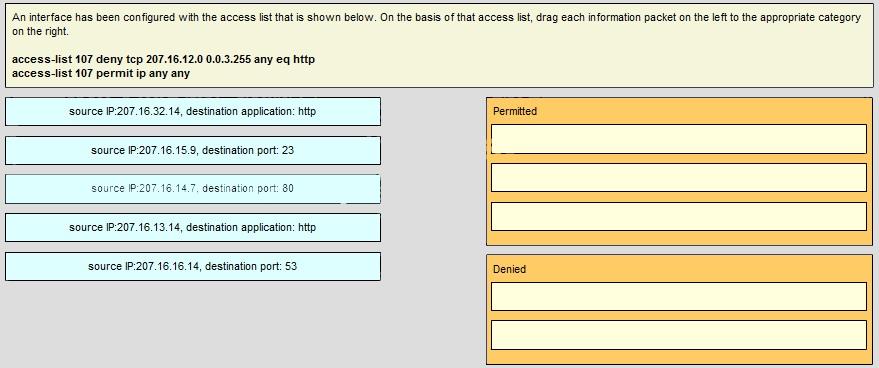

Drag each information packet on the left to the appropriate category on the right.

DRAG DROP
Drag each description on the left to the appropriate term on the right.

DRAG DROP
Drag the Frame Relay acronym on the left to match its definition on the right.

DRAG DROP
Drag the description on the left to the routing protocol on the right.

What is the default Local Management Interface frame type transmitted by a Cisco router on a
Frame Relay circuit?

Refer to the exhibit.
What can be concluded from the output of the debug command?
