Your network contains an Active Directory forest that has two domains named contoso.com and europe.contoso.com. The forest contains five servers. The servers

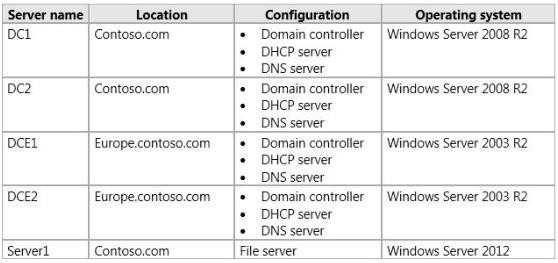

are configured as shown in the following table.
You plan to manage the DHCP settings and the DNS settings centrally by using IP Address Management (IPAM).
You need to ensure that you can use IPAM to manage the DHCP and DNS settings in both domains. The solution must use the minimum amount of administrative
effort.
What should you do?
A.
Upgrade DCE1 and DCE2 to Windows Server 2012, and then install the IP Address Management (IPAM) Server feature. Run the Set-IpamConfiguration cmdlet
for each domain.
B.
Upgrade DCE1 and DCE2 to Windows Server 2012, and then install the IP Address Management (IPAM) Server feature. Run the Invoke-IpamGpoProvisioning
cmdlet for each domain.
C.
Upgrade DC1 and DC2 to Windows Server 2012, and then install the IP Address Management (IPAM) Server feature. Run the Invoke-IpamGpoProvisioning
cmdlet for each domain.
D.
Upgrade DC1 and DC2 to Windows Server 2012, and then install the IP Address Management (IPAM) Server feature. Run the Set-IpamConfiguration cmdlet for
each domain.
Explanation:
* Upgrade the Windows 2003 Servers.
* Invoke-IpamGpoProvisioning
Creates and links group policies in the specified domain for provisioning required access settings on the servers managed by the computer running the IP Address
Management (IPAM) server.
Incorrect:
Set-IpamConfiguration
Sets the configuration for the computer running the IP Address Management (IPAM) server, including the TCP port number over which the computer running the
IPAM Remote Server Administration Tools (RSAT) client connects with the computer running the IPAM server.
IPAM is not compatible with Server 2003 which is why we need to upgrade
0
0
None of the answers are correct.
Correct Answer:
DCE1 and DCE2 should be upgraded to Windows Server 2012 and then IPAM should be installed on Server1 and both domains can be managed by the IPAM server.
Explanation:
Firstly, IPAM must be installed on a domain member computer. You cannot install IPAM on a domain controller.
Secondly, if IPAM is installed on the same server with DHCP, then DHCP server discovery will be disabled.
An IPAM server provides support for a single Active Directory forest. Multi-forest topologies are not supported. Multiple IPAM servers can support a single domain, or a single IPAM server can support all domains in an Active Directory forest.
3
0
Correct, IPAM cannot be installed on a DC,
the answer only specifies upgrading DCE1 and DCE2, it doesn’t specify IPAM will be installed on these servers, so B is correct
