You have an Exchange Server 2016 organization. The Active directory sites are configured as shown in the
following graphic.

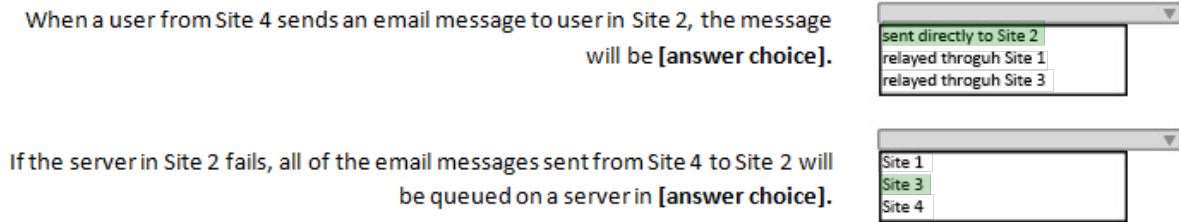

Use the drop-down menus to select the answer choice that completes each statement based on the information
presented in the graphic.
Hot Area:
Answer:
Isn´t the first option relayed through site 3, because there is no link between 4 and 2?
0
0
I agree
0
0
Yes, in this case both messages will be sent through site 3 since it has the lowest site link cost.
0
0
Yes, both relayed through Site 3 because site link cost still reigns supreme even over hub sites. Hub sites are mandatory only when the any of the least cost routes include a hub site, according to this article:
https://technet.microsoft.com/en-us/library/aa998825(v=exchg.160).aspx#Anchor_1
0
0
Hub Sites don’t take into account the site link costs. When you configure a Hub Site all messages will be relayed through that specific site.
0
0
Actually Joseph is right (for my surprise)
Technet states: As in previous version of Exchange, hub sites that aren’t in the least-cost routing path to the primary site are ignored.
So I would go:
1) Relayed through Site 3 (as it’s the lowest cost path and hub site is ignored)
2) Site 3 (it’s still the lowest cost path, so the server in Site 3 will wait for the Server in Site 2 to become available)
0
0
If a site isnt configured as a hub site then it doesnt do any relaying. The message would go direct to site 2 as it doesnt meet any hub sites across its lowest cost route.
0
0
Gareth and J are correct.
Hub sites are ignored if they aren’t on the lc path
MB servers will try to connect directly to the MB in the destination site if no hubs on the way.
0
0
What’s more, part of new 104Q 70-345 dumps for your reference:
https://drive.google.com/open?id=0B-ob6L_QjGLpck5vRk5XUVFQb00
Best Regards!
0
0
There is a possibity that the msg can be send directly from site4 to site 2.
Read this below:
https://technet.microsoft.com/en-us/library/jj916681(v=exchg.150).aspx
