HOTSPOT
You have an Exchange Server 2010 organization.
You plan to upgrade to Exchange Server 2016.
You have two Active Directory sites configured as shown in the following table.
You have five servers configured as shown in the following table.
You have three users who have mailboxes configured as shown in the following table.
You have the following configurations:
<!–[endif]–> The OWA virtual directory ExternalUrl on CAS01 and CAS02 is $null.
<!–[endif]–> The OWA virtual directory ExternalUrl on EX03 is https://mail.contoso.com/owa.
For each of the following statements, select Yes if statements is true. Otherwise, select No.
Hot Area:

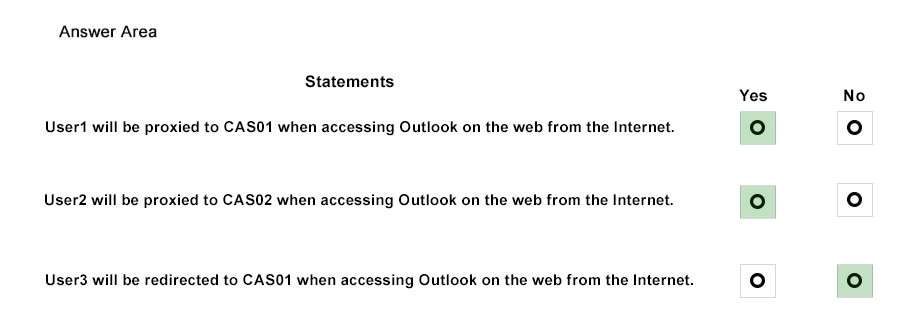

Answer:
Explanation:
https://blogs.technet.microsoft.com/exchange/2015/10/26/client-connectivity-in-an-exchange-2016-coexistenceenvironment-with-exchange-2010/
If someone can explain …
0
0
I believe this to be:
yes, no, no
https://technet.microsoft.com/en-us/library/bb310763(v=exchg.141).aspx
Read overviews of redirection and proxy
1
0
User 1 will be proxied to CAS01
User 2 will be redirected to CAS02
User 3 will be redirected to CAS02
0
2
Answer depicted is correct.
Since there is no external URL published for any of the two CASs, there is no Redirection concept.
All the requests lands on EX03, which is the only server defined with an external URL.
User 1 mailbox is located within EX01 (Brussels), which does not have any OWA ExternalURL defined. EX03 (Newyork) will proxy the request to CAS01(Intersite Proxying)
User 2 mailbox is located within Ex02 (Newyork), again which does not have any OWA ExternalURL defined. EX03 (Newyork) will proxy the request to CAS02(IntraSite Proxying)
User 3- mailbox is located within EX03(Newyork), which is self and does a local proxy to the active mailbox database copy.
16
0
nice work!
1
0
Excellent explanation.
1
0
Correct answer:
The URL seems wrong. Correct URL is here.
https://blogs.technet.microsoft.com/exchange/2015/10/26/client-connectivity-in-an-exchange-2016-coexistence-environment-with-exchange-2010/
See the Outlook on the web portion
1
0
I got this question.
I answered Yes, Yes, No
1
0
Thank you sir. Taking my exam today
