You needs to modify an existing configuration of a Cisco Integrated Services Router.

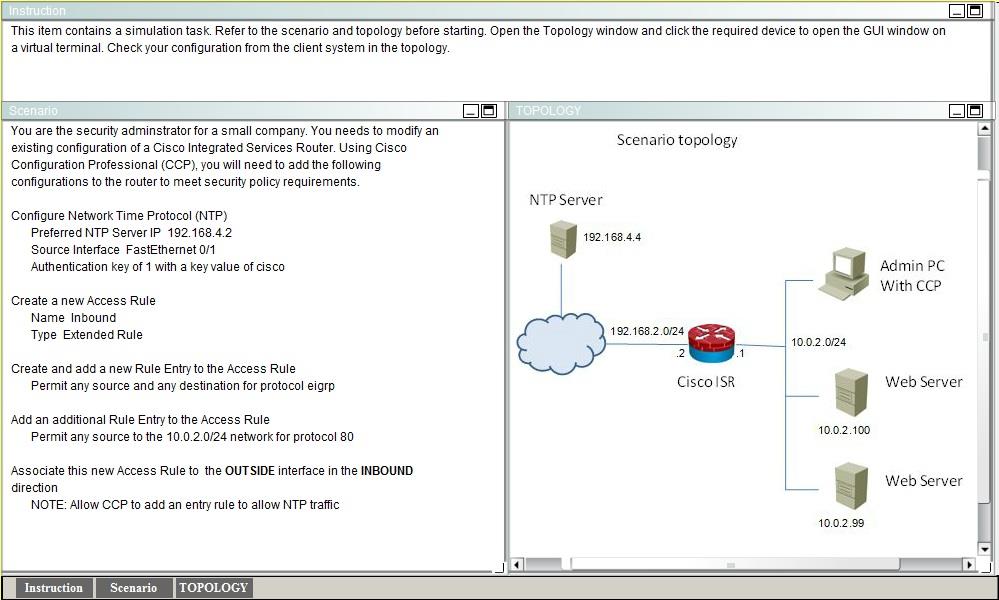

You are the security administrator for a small company. You needs to modify an existing configuration of a Cisco Integrated Services Router. Using CCP, you will need to add the following configurations to the router to meet security policy requirements.

PrepAway - Latest Free Exam Questions & Answers

Answer: See the explanation

Explanation:
For the NTP
portion:

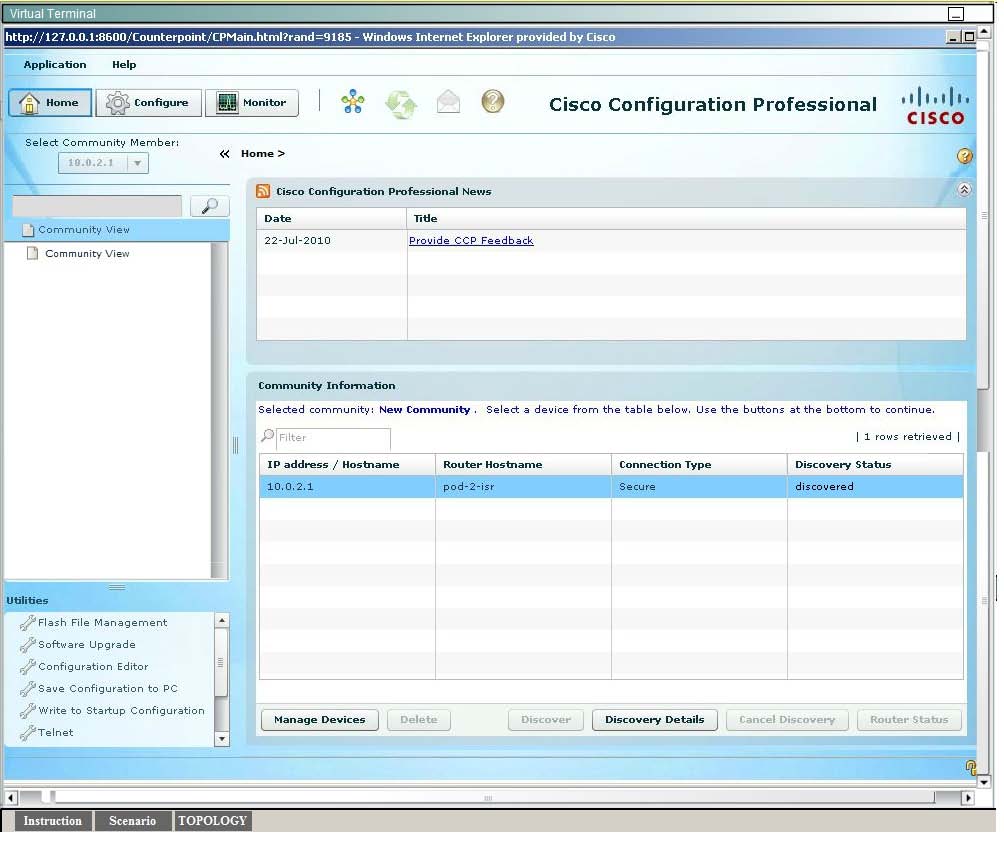

Click on Router – Time – NTP and SNTP on left hand pane.
Then click the Add button. Enter the Server IP address and source interface and key information as
specified. Also be sure to click the Prefer button.
For the access rule portion:
Click on Router – ACL – ACL Editor. Click Add button. Then enter Inbound for the name and make
sure rule is extended. Then click Add at the rule entry. Then ensure that permit is selected and that
source and destination boxes both say Any IP Address (They should already).
Under Protocol and Service select EIGRP. Hit OK.
Then click add button again. Leave the source as any and click the destination box as “A network”
and type in 10.0.2.0 and select the wildcard mask as 0.0.0.255. Click on the TCP protocol button and
select “www” Hit OK.
Finally, click on edit for this rule and click on the Associate button. Select the outside interface and
select the inbound direction.
