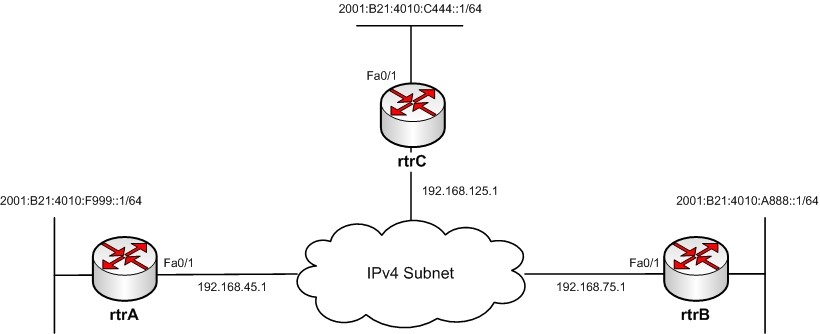

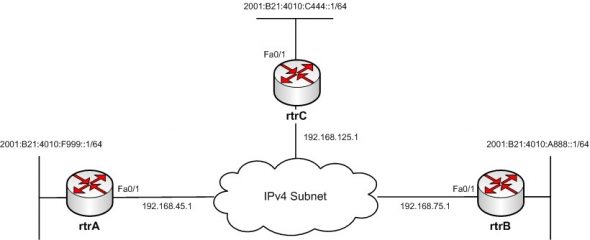

You have implemented IPv6 automatic 6-to-4 tunneling between three IPv6 subnets as shown in the network exhibit. (Click the Exhibit(s) button.)
You have used the following commands to implement the automatic 6-to-4 tunnel:
Your supervisor has assigned the task of verifying the automatic 6-to-4 tunnel to one of your colleagues. Your colleague runs the show running-config command and finds that incorrect IPv6 addresses have been assigned to the tunnel interfaces of the routers.
Which of the following IPv6 addresses should be assigned to rectify the problem? (Choose two.)
A. 2002::c0a8:2d01/64 to the Fa0/1 interface of rtrA
B. 2002:c0a8:4b01::1/64 to the Fa0/1 interface of rtrB
C. 2002:c0a8:7d01::1/64 to the Fa0/1 interface of rtrC
D. 2002:c0a8:4b01::1/64 to the Fa0/1 interface of rtrA
Explanation:
The 2002:c0a8:4b01::1/64 and the 2002:c0a8:7d01::1/64 IPv6 addresses should be assigned to the Fa0/1 interfaces of rtrB and rtrC, respectively. Automatic 6-to-4 tunnels embed the IPv4 address of the tunnel interfaces into the second and third quartets of the IPv6 address that has the 2002::/16 prefix.
To assign IPv6 addresses to the tunnel interfaces, perform the following steps:
1. Convert the IPv4 address of the tunnel interface into binary.
2. Convert the binary equivalent of the IPv4 address into hexadecimal (IPv6).
3. Append the hexadecimal equivalent to the 2002::/16 prefix to form the IPv6 prefix of the tunnel interface.
For the Fa0/1 interface of rtrB, its IPv4 address of 192.68.75.1 is equivalent to the IPv6 address c0a8:4b01. This address is then appended to the 2002::/16 prefix, resulting in 2002:c0a8:4b01::/48. The remaining host bits can be filled with zeros. Similarly, the IPv4 address of the Fa0/1 interface of rtrC is converted to the IPv6 address 2002:c0a8:7d01::/48.
The 2002::c0a8:2d01/64 IPv6 address should not be assigned to the Fa0/1 interface of rtrA. The Fa0/1 interface of rtrA has the IPv4 address 192.168.45.1. The IPv6 equivalent of the IPv4 address, which is c0a8:2d01, should be embedded in the second and third quartets of the IPv6 address instead of the seventh and eighth quartets. IPv4 addresses are embedded into the last 32 bits for ISATAP tunnels.
The 2002:c0a8:4b01::1/64 IPv6 addresses should not be assigned to the Fa0/1 interface of rtrA. This IPv6 address is the equivalent of the IPv4 address 192.168.75.1, which is the address of the Fa0/2 interface of rtrB and not rtrA. Therefore, this IPv6 address should be assigned to the Fa0/1 interface of rtrB.
