which IP addresses would be assigned to the interfaces with point-topoint PVCs?

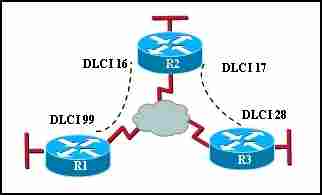

Refer to the exhibit.

In the Frame Relay network, which IP addresses would be assigned to the interfaces with point-topoint PVCs?

PrepAway - Latest Free Exam Questions & Answers

A.
DLCI 16: 192.168.10.1 /24
DLCI 17: 192.168.10.1 /24
DLCI 99: 192.168.10.2 /24
DLCI 28: 192.168.10.3 /24

B.
DLCI 16: 192.168.10.1 /24
DLCI 17: 192.168.11.1 /24
DLCI 99: 192.168.12.1 /24
DLCI 28: 192.168.13.1 /24

C.
DLCI 16: 192.168.10.1 /24
DLCI 17: 192.168.11.1 /24
DLCI 99: 192.168.10.2 /24
DLCI 28: 192.168.11.2 /24

D.
DLCI 16: 192.168.10.1 /24
DLCI 17: 192.168.10.2 /24
DLCI 99: 192.168.10.3 /24
DLCI 28: 192.168.10.4 /24

Explanation:
With point to point PVC, each connection needs to be in a separate subnet. The R2-R1 connection
(DLCI 16 to 99) would have each router within the same subnet. Similarly, the R3-R1 connection
would also be in the same subnet, but it must be in a different one than the R2-R1 connection.
