You work for a large company that has just acquired another smaller company. You have been
asked to lead a group of SAN experts from both companies to design the integration plan that
will be used to interconnect the SANs and migrate the data from the newly acquired company
to the main storage arrays. The first thing that the team discovers is that the two SANs have
the same domain IDs.
As the SAN team lead, what would you advise your team to do so that you can interconnect the
two SANs while minimizing disruption?

A company wants to use an external appliance between its data center and WAN to optimize
email and HTTP communications. The traffic flow must pass this appliance in both directions.
The appliance is connected with only one interface to a Cisco IOS router and has a single IP
address. Which two adjustments can you make to the network design so that the appliance is
added into the traffic path? (Choose two.)

For a storage area network design, which technology allows a switch to support multiple Fibre
Channel IDs per fabric port?

Yourcompany plans to implement an Internet gateway router that is performing NAT.This same
gateway will be terminating various IPsec tunnels to other remote sites. Which address type is
appropriate for the ACL that will govern the sources of traffic entering the tunnel in the inside
interface?

You have been hired by a startup company to provide optical services using MPLS-TP.Which
three options describe reasons to use the MPLS-TP standard in your design? (Choose three.)

Acme Corporation indicates that their network design must support the ability to scale to
support a high number of remote sites. Which IGP is considered to scale better for a hub-andspoke topology?

A junior engineer is implementing one of your optical designs and asks about CWDM (Coarse
Wavelength Division Multiplexing). Which two features describe CWDM? (Choose two.)

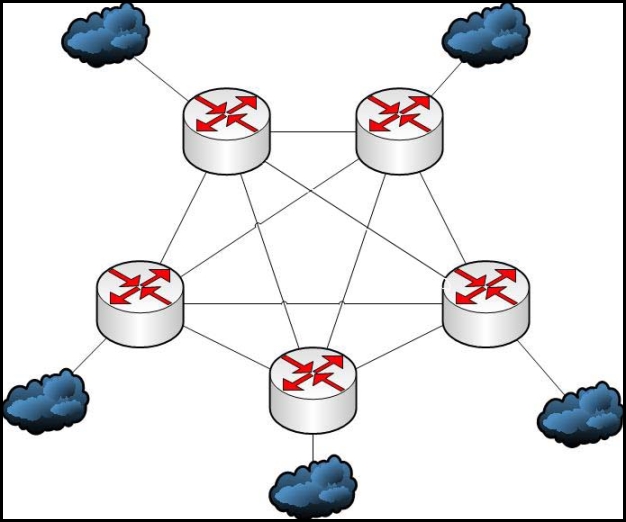

Refer to the exhibit.

A service provider using IS-IS has designed this network with all core links at the Layer 2 control
plane. How will they adjust the design to reduce the flooding of update packets?

You have been asked to design a wireless network solution that will implement context-aware
services on an existing network that was initially deployed for data traffic only. Which two
design principles would you follow to increase the location accuracy with the least possible
impact on the current setup? (Choose two.)

You have been asked to establish a design that will allow your company to migrate from a WAN
service to a Layer 3 VPN service. In your design, you are keeping some WAN links between
critical sites as a backup for this service. You plan to use OSPF as your IGP and BGP for the PECE protocol. When the Layer 3 VPN service is available, how will you prevent transit traffic over
the backup links?
