In this simulation, you are task to examine the various authentication events using the ISE GUI.
For example, you should see events like Authentication succeeded. Authentication failed and etc…

Which two statements are correct regarding the event that occurred at 2014-05-07 00:16:55.393?
(Choose two.)

CORRECT TEXT
The Secure-X company has recently successfully tested the 802.1X authentication deployment
using the Cisco Catalyst switch and the Cisco ISEv1.2 appliance. Currently, each employee
desktop is connected to an 802.1X enabled switch port and is able to use the Cisco AnyConnect
NAM 802.1Xsupplicantto log in and connect to the network.
Currently, a new testing requirement is to add a network printer to the Fa0/19 switch port and have
it connect to the network. The network printer does not support 802.1X supplicant. The Fa0/19
switch port is now configured to use 802.1X authentication only.
To support this network printer, the Fa0/19 switch port configuration needs to be edited to enable
the network printer to authenticate using its MAC address. The network printer should also be on
VLAN 9.
Another network security engineer responsible for managing the Cisco ISE has already perconfigured all the requirements on the Cisco ISE, including adding the network printer MAC
address to the Cisco ISE endpoint database and etc…
Your task in the simulation is to access the Cisco Catalyst Switch console then use the CLI to:
• Enable only the Cisco Catalyst Switch Fa0/19 switch port to authenticate the network printer
using its MAC address and:
• Ensure that MAC address authentication processing is not delayed until 802.1Xfails
• Ensure that even if MAC address authentication passes, the switch will still perform 802.1X
authentication if requested by a 802.1X supplicant
• Use the required show command to verify the MAC address authentication on the Fa0/19 is
successful
The switch enable password is Cisco
For the purpose of the simulation, to test the network printer, assume the network printer will be
unplugged then plugged back into the Fa0/19 switch port after you have finished the required
configurations on the Fa0/19 switch port.

Note: For this simulation, you will not need and do not have access to the ISE GUI To access the
switch CLI, click the Switch icon in the topology diagram

CORRECT TEXT
The Secure-X company has started to tested the 802.1X authentication deployment using the
Cisco Catalyst 3560-X layer 3 switch and the Cisco ISEvl2 appliance. Each employee desktop will
be connected to the 802.1X enabled switch port and will use the Cisco AnyConnect NAM 802.1X
supplicant to log in and connect to the network.
Your particular tasks in this simulation are to create a new identity source sequence named
AD_internal which will first use the Microsoft Active Directory (AD1) then use the ISE Internal User
database. Once the new identity source sequence has been configured, edit the existing DotlX
authentication policy to use the new AD_internal identity source sequence.

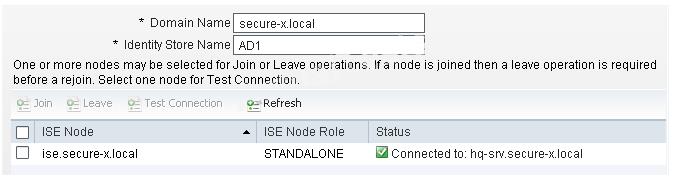

The Microsoft Active Directory (AD1) identity store has already been successfully configured, you
just need to reference it in your configuration.

In addition to the above, you are also tasked to edit the IT users authorization policy so IT users
who successfully authenticated will get the permission of the existing IT_Corp authorization profile.
Perform this simulation by accessing the ISE GUI to perform the following tasks:
• Create a new identity source sequence named AD_internal to first use the Microsoft Active
Directory (AD1) then use the ISE Internal User database
• Edit the existing Dot1X authentication policy to use the new AD_internal identity source
sequence:
• If authentication failed-reject the access request
• If user is not found in AD-Drop the request without sending a response
• If process failed-Drop the request without sending a response
• Edit the IT users authorization policy so IT users who successfully authenticated will get the
permission of the existing IT_Corp authorization profile.
To access the ISE GUI, click the ISE icon in the topology diagram. To verify your configurations,
from the ISE GUI, you should also see the Authentication Succeeded event for the it1 user after
you have successfully defined the DotlX authentication policy to use the Microsoft Active Directory
first then use the ISE Internal User Database to authenticate the user. And in the Authentication
Succeeded event, you should see the IT_Corp authorization profile being applied to the it1 user. If
your configuration is not correct and ISE can’t authenticate the user against the Microsoft Active
Directory, you should see the Authentication Failed event instead for the it1 user.
Note: If you make a mistake in the Identity Source Sequence configuration, please delete the
Identity Source Sequence then re-add a new one. The edit Identity Source Sequence function is
not implemented in this simulation.

In this simulation, you are task to examine the various authentication events using the ISE GUI.
For example, you should see events like Authentication succeeded. Authentication failed and etc…

Which four statements are correct regarding the event that occurred at 2014-05-07 00:19:07.004?
(Choose four.)
