Network Topology Exhibit

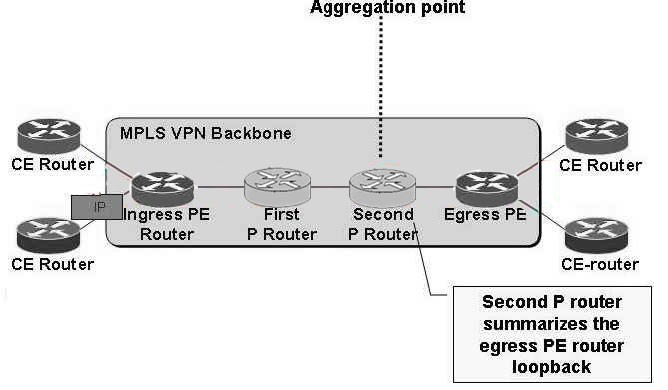

What problem can be caused by the second P router summarizing the loop address of the egree PE router?

Exhibit:

Refer to the exhibit.

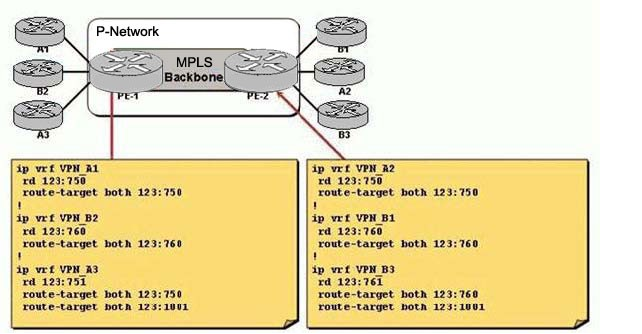

In which type of MPLS VPN are customers A and B participating?

Exhibit

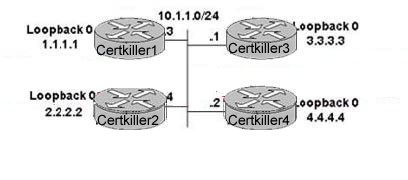

Study the exhibit. All four routers on the Certkiller Ethernet LAN sent out LDP hello messages.
What is the set of TCP sessions that will be initiated?

Refer to the graphic.

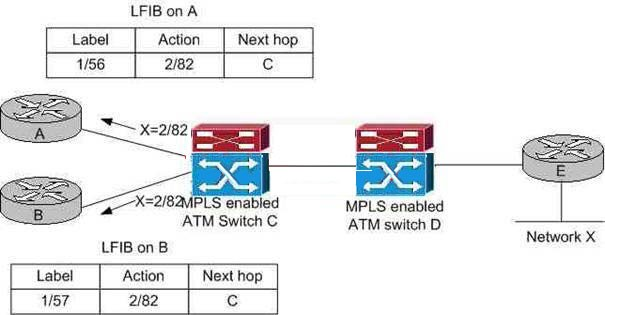

What is a potential problem if the MPLS-enabled ATM switch C reuses an already allocated local label (2/82) for the second upstream LDP peer (router B)?

Exhibit

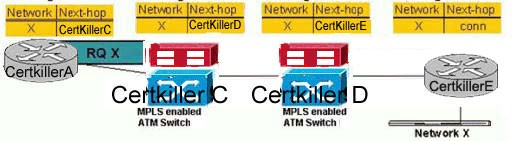

Study the exhibit which displays an MPLS cell-mode network that is using default label distribution.
When the label request for Network X is sent from router Certkiller A to the MPLS-enabled ATM Switch Certkiller C, which if the following statements are true?

Network topology Exhibit

The relevant entries in the FIB, LIB, and LFIB tables for a frame-mode MPLS network is shown. If the link between Routers B and C was lost, what would be the relevant entries in the LFIB table for label, action, and next hop?

Network topology exhibit

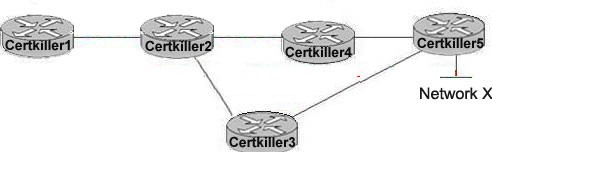

Liberal label retention and unsolicited downstream distribution is being used in the frame-mode MPLS network shown in the exhibit. The best to network X as defined by the IGP for network is Certkiller 1- Certkiller 2- Certkiller 4- Certkiller 5. What will Router Certkiller 3 and router Certkiller 4 add to their LIB regarding network X?

Refer to the exhibit. Routers A and D are the edge LSRs. If the link between Routers B and C has failed, what best represents the state of the LFIB table on Router B after convergence?
Exhibit:

Refer to the exhibit. It shows an MPLS network with four routers as well as two customer routers. Router E is advertising the network 192.168.12.0/24. Rather than propagating the 192.168.12.0/24 network, Router D aggregates the 192.168.12.0/24 route into 192.16.0.0/16. Which route or routes will Router B receive? Exhibit:

Refer to the exhibit and the following connectivity requirements. Which type of MPLS VPN is being implemented? Sites CE1A and CE1B require connectivity to each other.Sites CE2A and CE2B require connectivity to each other.Site CE1C requires connectivity to sites CE1A, CE1B, CE3A, and CE3B. Site CE2C requires connectivity to sites CE2A, CE2B, CE3A, and CE3B. Sites CE3A and CE3B require connectivity to each other and to CE1C and CE2C.
