When an EIGRP topology change is detected, what is the correct order of events when there is a
FS?

Refer to the exhibit.

The network administrator is trying to configure mutual redistribution between
EIGRP and OSPF. Autosummarization in EIGRP 100 AS is disabled. After adding OSPF
configuration to router B1, the network administrator checked the routing table of router B2, but
none of the EIGRP routes appeared there.
To redistribute the EIGRP AS 100 routes into OSPF, which command should be added, or edited,
on router B1 under router ospf 10?

Which of the following are methods EIGRP uses to initially populate (seed) its EIGRP topology
table, before learning topology data from neighbors? (Choose two.)

An engineer has added the following configuration snippet to an implementation planning
document. The configuration will be added to Router R1, whose Fa0/0 interface connects to a LAN
to which Routers R2 and R3 also connect. R2 and R3 are already EIGRP neighbors with each
other. Assuming the snippet shows all commands on R1 related to EIGRP authentication, which
answer lists an appropriate comment to be made during the implementation plan peer review?
key chain fred
key 3
key-string whehew
interface fa0/0
ip authentication key-chain eigrp 9 fred

Which of the following settings could prevent two potential EIGRP neighbors from becoming
neighbors? (Choose two answers.)

Based on the need to limit processing and bandwidth utilization due to dynamic routing protocol
operation, the following routing requirements have been specified for your network.
– Partial and incremental routing updates
– Only the devices affected by a topology change perform route recomputation
– Route recomputation only occurs for routes that were affected

Which dynamic routing protocol should be deployed in your network to best meet these
requirements?

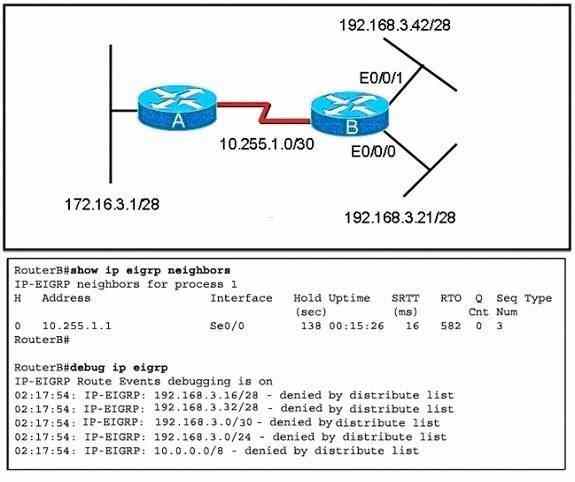

Refer to the exhibits.

Router B should advertise the network connected to the E0/0/0 interface to
router A and block all other network advertisements. The IP routing table on router A indicates that
it is not receiving this prefix from router B. What is the probable cause of the problem?

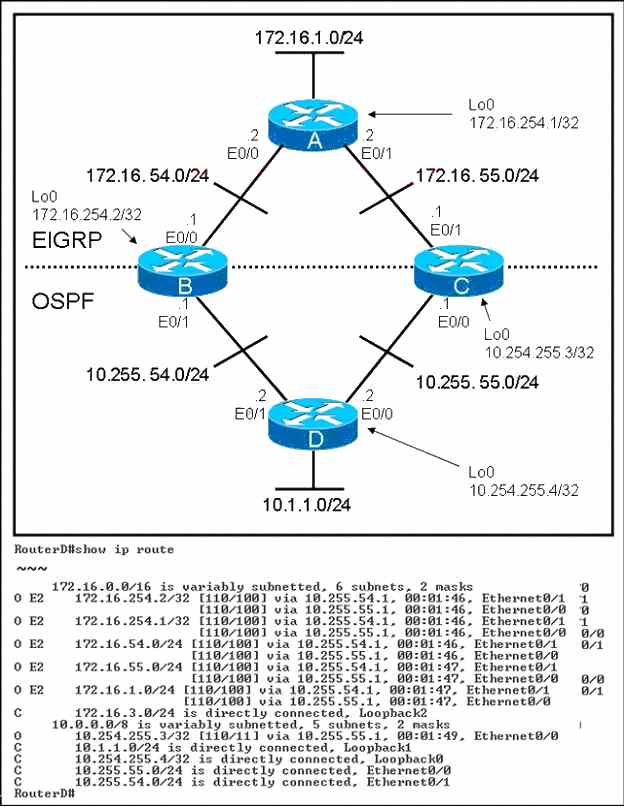

Refer to the exhibit.

Router B and router C are performing mutual redistribution between OSPF
and EIGRP, and their default metrics are configured the same. Router D has equal cost paths to
networks where both paths are not really equal cost. For example, network 172.16.54.0 shows

equal cost through both router B and router C, though in reality the cost is greater using router C.
Other routers, though not shown, are connected to the 172.16.54.0 and 172.16.55.0 networks, and
the same issues exist to those routers and the networks connected to them. What can be done so
that data will be routed along the most optimal path in the network?

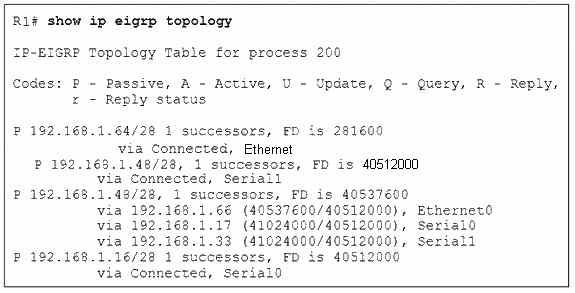

Based on the exhibited output,

Which three statements are true? (Choose three.)

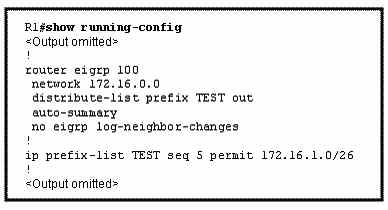

Study the exhibit carefully.

Router R1 is connected to networks 172.16.1.0 /26 and 172.16.1.64 /27. Based on the partial
output in the exhibit, which description is correct?
