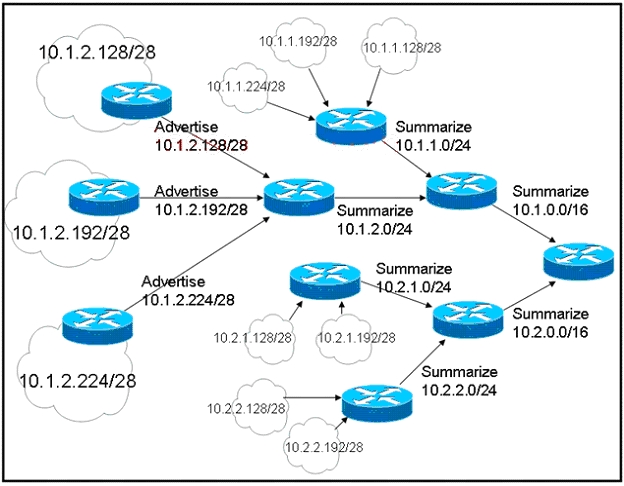

Refer to the exhibit. Which statement about dynamicrouting protocols for this network is
true?

After implementing EIGRP on your network, you issuethe show ip eigrp traffic command on
router C. The following output is shown:
RouterC#show ip eigrp traffic
IP-EIGRP Traffic Statistics for process 1
Hellos sent/received: 481/444
Updates sent/received: 41/32
Queries sent/received: 5/1
Replies sent/received: 1/4
Acks sent/received: 21/25
Input queue high water mark 2, 0 drops
SIA-Queries sent/received: 0/0
SIA-Replies sent/received: 0/0
Approximately 25 minutes later, you issue the same command again. The following
output is shown:
RouterC#show ip eigrp traffic
IP-EIGRP Traffic Statistics for process 1
Hellos sent/received: 1057/1020
Updates sent/received: 41/32
Queries sent/received: 5/1
Replies sent/received: 1/4
Acks sent/received: 21/25
Input queue high water mark 2, 0 drops
SIA-Queries sent/received: 0/0
SIA-Replies sent/received: 0/0
Approximately 25 minutes later, you issue the same command a third time. The
following output is shown:
RouterC#show ip eigrp traffic
IP-EIGRP Traffic Statistics for process 1
Hellos sent/received: 1754/1717
Updates sent/received: 41/32
Queries sent/received: 5/1
Replies sent/received: 1/4
Acks sent/received: 21/25
Input queue high water mark 2, 0 drops
SIA-Queries sent/received: 0/0
SIA-Replies sent/received: 0/0
What can you conclude about this network? Select the best response.

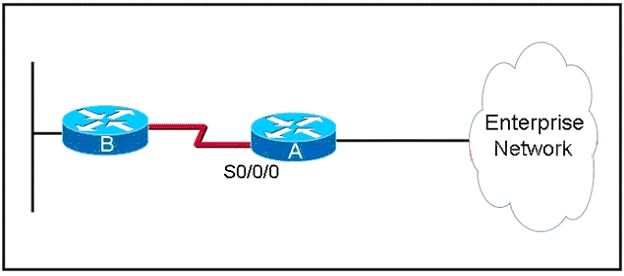

Refer to the exhibit. ROUTE Enterprises has many stub networks in their enterprise
network, such as router B and its associated network. EIGRP is to be implemented on
router A so that neither the prefix for the S/0/0/0interface nor the prefixes from router B
appear in the routing tables for the router in the enterprise network.
Which action will accomplish this goal?

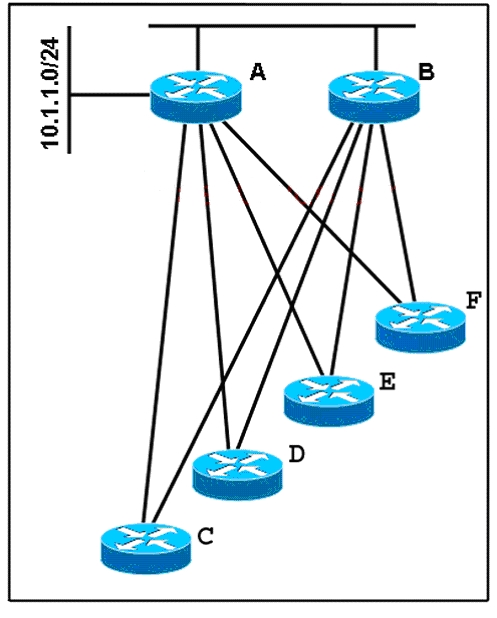

Refer to the exhibit. In a redundant hub-and-spoke deployment using EIGRP, what feature
can be used to ensure that routers C through F are not used as transit routers for data
traveling from router B to network 10.1.1.0? Selectthe best response.

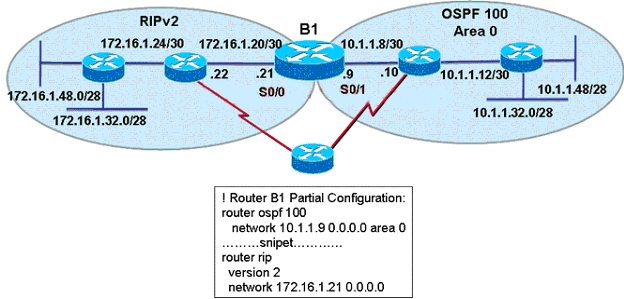

Refer to the exhibit. A new TAC engineer comes to you for advice. The engineer wants to
configure RIPv2- OSPF two-way redistribution while avoiding routing loops. Which two
additions to the router B1 configuration should theengineer make? (Choose two.)

You want the redistributed EIGRP AS 10 routes to have an administrative distance of 121
when they appear as RIP routes in the routing tableof A1.
Which command should you use on a router to accomplish this goal? Select the best
response.

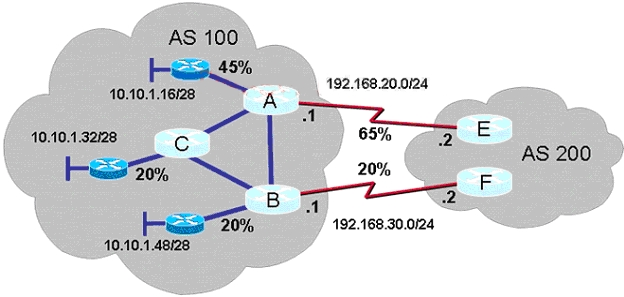

Refer to the exhibit. Currently the two eBGP links between AS100 and AS200 have an
average inbound load of 65% and 20% respectively. After further investigation, traffic to
10.10.1.16/28 accounts for 45%, and traffic to 10.10.1.32/28 and to 10.10.1.48/28 each
account for 20% of the inbound load. The BGP attributes are currently set at their default
values in both autonomous systems.
If you want to influence how AS200 sends traffic toAS100, which eBGP configurations
would you configure in AS100 to influence AS200 to use the eBGP links more evenly?
(Choose two.)

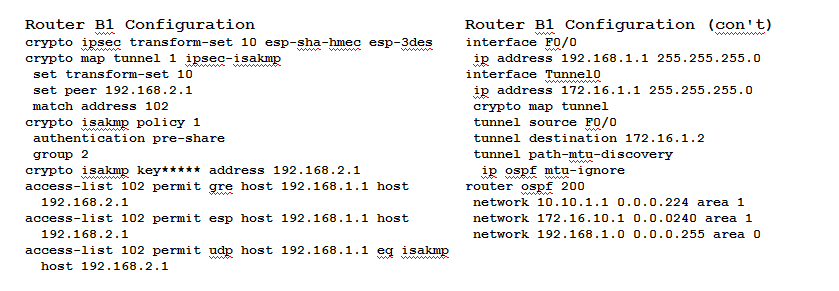

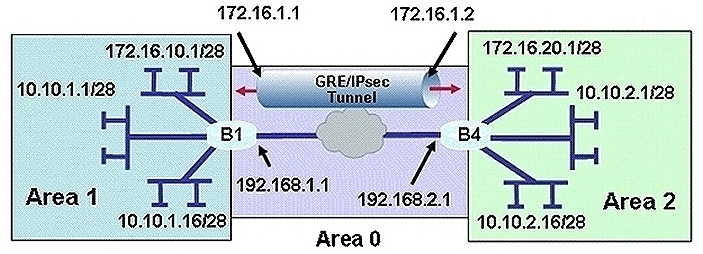

Refer to the exhibit. A new TAC engineer came to you for advice. A GRE over IPsec tunnel
was configured, but the tunnel is not coming up.
What did the TAC engineer configure incorrectly? Select the best response.

ACME Rocket Sleds is growing, and so is their network. They have determined that they
can no longer continue using static routes and mustimplement a dynamic routing protocol.
They want to have data use multiple paths to the destinations, even if the paths are not
equal cost. Which routing protocol has the ability to do this? Select the best response.

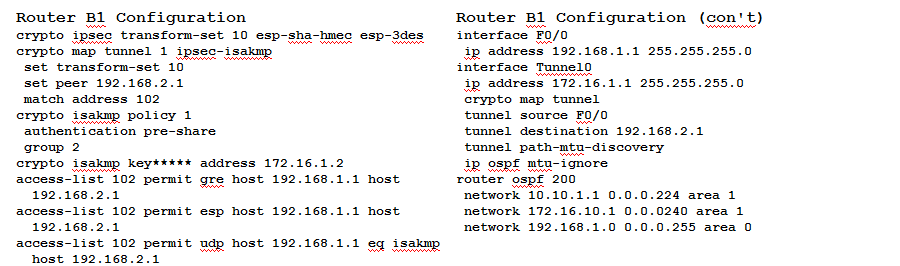

Refer to the exhibit. A new TAC engineer came to you for advice. A GRE over IPsec tunnel
was configured, but the tunnel is not coming up.
What did the TAC engineer configure incorrectly?
