What is the best order for choosing the Router-ID in ospf?
What is the best order for choosing the Router-ID in ospf?

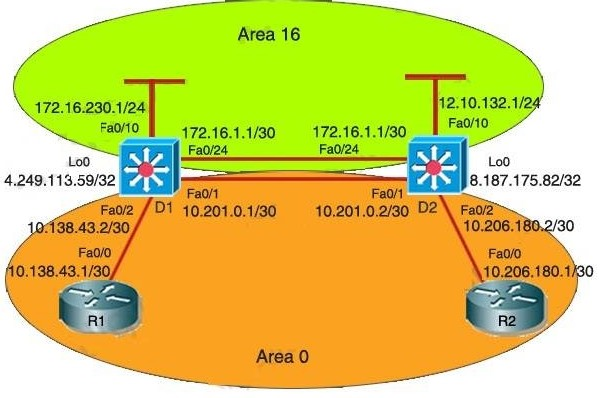

Which expected route is missing from R1s route table based on the topology during the maintenance period?
The company and the company network have both been growing rapidly. Multiple adds,
moves and changes have been applied to the network.Your boss has asked you to
troubleshoot a recent OSPF synchronization problem that has arisen.
There have been synchronization problems at separate locations in the OSPF area 0. There
have been reported link failures during the rapid growth of the company network. You are
required to resolve the OSPF problem. OSPF must be able to converge when the network
changes.
Refer to the information above to answer the following question.
The R2 router has lost connectivity to R1. The following is R1s current route table:
176.16.0.0/16 is variably subnetted, 3 subnets, 2 masks
O IA 172.16.230.0/24 [110/21] via 10.138.43.1, 00:00:03,
FastEthernet0/0
O IA 172.16.209.0/24 [110/22] via 10.138.43.1, 00:00:03,
FastEthernet0/0
O IA 172.16.1.0/30 [110/21] via 10.138.43.1, 00:00:03,
FastEthernet0/0
10.0.0.0/30 is subnetted, 1 subnets
C 10.138.43.0 is directly connected, FastEthernet0/0
Which expected route is missing from R1s route table based on the topology during the
maintenance period?’
Select the best response.
Which route should be the only one removed from the routing tables of the routers?
The company and the company network have both been growing rapidly. Multiple adds,
moves and changes have been applied to the network.Your boss has asked you to
troubleshoot a recent OSPF synchronization problem that has arisen.
There have been synchronization problems at separate locations in the OSPF area 0. There
have been reported link failures during the rapid growth of the company network. You are
required to resolve the OSPF problem. OSPF must be able to converge when the network
changes.
Refer to the information above to answer the following question.
The log of D1 reports the following:
%LINEPTOTO-5-UPDOWN: Line protocol on interface FastEthernet0/1,
changed state to down
%LINK-3-UPDOWN interface FastEthernet0/1, changed state to down
%OSPF-5-ADJCHG Process 1, Nbr 8.187.175.32 on FastEthernet0/1
from FULL to DOWN,
Neighbor Down: Interface down or detached
This event was anticipated due to maintenance; however, it resulted in excessive lost
routes. Which route should be the only one removed from the routing tables of the routers?
Select the best response.
Which configuration command on D1 (with a similar command on D2) will provide an immediate solution to the mis
The company and the company network have both been growing rapidly. Multiple adds,
moves and changes have been applied to the network.Your boss has asked you to
troubleshoot a recent OSPF synchronization problem that has arisen.
There have been synchronization problems at separate locations in the OSPF area 0. There
have been reported link failures during the rapid growth of the company network. You are
required to resolve the OSPF problem. OSPF must be able to converge when the network
changes.
Refer to the information above to answer the following question.
Which configuration command on D1 (with a similar command on D2) will provide an
immediate solution to the missing route problem?
Select the best response.
what is most likely causing the different missing routes throughout the network?
The company and the company network have both been growing rapidly. Multiple adds,
moves and changes have been applied to the network.Your boss has asked you to
troubleshoot a recent OSPF synchronization problem that has arisen.
There have been synchronization problems at separate locations in the OSPF area 0. There
have been reported link failures during the rapid growth of the company network. You are
required to resolve the OSPF problem. OSPF must be able to converge when the network
changes.
Refer to the information above to answer the following question.
Examine the following excerpt from the “show ip ospf” command on D1:
Area BACKBONE (0)
Number of interfaces in the this area is 1
Area has no authentication
SPF algorithm last executed 00:00:31.280 ago
SPF algorithm executed 5 times
Area ranges are
Number of LSA 13. Checksum Sum 0x16F0FD
Number of opaque link LSA 0. Checksum Sum 0×000000
Number of DCbitless LSA 0
Number of indication LSA 0
Number of DoNotAge LSA 0
Flood list length 0
Area 16
Number of interfaces in this area is 2
Area has message digest authentication
SPF algorithm last executed 00:00:34.928 ago
SPF algorithm executed 7 times
Area ranges are
Number of LSA 5. Checksum Sum 0x02FCD3
Number of opaque link LSA 0. Checksum Sum 0×000000
Number of DCbitless LSA 0
Number of indication LSA 0
Number of DoNotAge LSA 0
Flood list length 0
Based on the information shown above, what is most likely causing the different missing
routes throughout the network?
Select the best response.
Which two networks does the Core1 device have feasible successors for?
Refer to the exhibit. BigBids Incorporated is a worldwide auction provider. The network uses
EIGRP as its routing protocol throughout the corporation. The network administrator does
not understand the convergence of EIGRP.
Using the output of the show ip eigrp topology all-linkscommand, answer the
administrator’s questions.
Core#1show ip eigrp topology all-links
IP EIGRP Topology table for AS(65001)/ID(172.17.10.1)
Codes: P – Passive, A – Active, U – Update, Q – Query, R -Reply, r – reply Status, s – sia Status
P 172.17.3.128/25, 2 successors, FD is 30720, semo 9
via 172.17.10.2 (30720/28160), FastEthernet0/1
via 172.17.3.2 (30720/28160), FastEthernet0/3
P 10.140.0.0/21, 1 successors, FD is 156160, semo 16
via 172.17.3.2 (156160/128256), FastEthernet0/3
via 172.17.10.2 (157720/155160), FastEthernet0/1
P 172.17.10.0/24, 1 successors, FD is 28160, semo 1
via Connected, FastEthernet0/1
P 172.17.0.0/30, 1 successors, FD is 20514560, semo15
via 172.17.1.1 (20514560/205122000), FastEthernet0/2
via 172.17.10.2 (20516120/20513560), FastEthernet0/1
P 172.17.1.0/24, 1 successors, FD is 28160, semo 2
via Connected, FastEthernet0/2
P 172.17.2.0/24, 1 successors, FD is 30720, semo 8
via 172.17.10.2 (30720/28160), FastEthernet0/1
via 172.17.3.2 (33280/30720), FastEthernet0/3
P 172.17.3.0/25, 1 successors, FD is 28160, semo 3
via Connected, FastEthernet0/3
Which two networks does the Core1 device have feasible successors for? (Choose two)
Select the 2 best responses.
Which three networks is the router at 172.17.10.2 directly connected to?
Which three networks is the router at 172.17.10.2 directly connected to? (Choose three)
Core#1show ip eigrp topology all-links
IP EIGRP Topology table for AS(65001)/ID(172.17.10.1)
Codes: P – Passive, A – Active, U – Update, Q – Query, R -Reply, r – reply Status, s – sia Status
P 172.17.3.128/25, 2 successors, FD is 30720, semo 9
via 172.17.10.2 (30720/28160), FastEthernet0/1
via 172.17.3.2 (30720/28160), FastEthernet0/3
P 10.140.0.0/21, 1 successors, FD is 156160, semo 16
via 172.17.3.2 (156160/128256), FastEthernet0/3
via 172.17.10.2 (157720/155160), FastEthernet0/1
P 172.17.10.0/24, 1 seccussors, FD is 28160, semo 1
via Connected, FastEthernet0/1
P 172.17.0.0/30, 1 successors, FD is 20514560, semo15
via 172.17.1.1 (20514560/205122000), FastEthernet0/2
via 172.17.10.2 (20516120/20513560), FastEthernet0/1
P 172.17.1.0/24, 1 seccussors, FD is 28160, semo 2
via Connected, FastEthernet0/2
P 172.17.2.0/24, 1 successors, FD is 30720, semo 8
via 172.17.10.2 (30720/28160), FastEthernet0/1
via 172.17.3.2 (33280/30720), FastEthernet0/3
P 172.17.3.0/25, 1 successors, FD is 28160, semo 3
via Connected, FastEthernet0/3
Select the 3 best responses.
Which three EIGRP routes will be installed for the 172.17.3.128/25 and 172.17.2.0/24 networks?
Which three EIGRP routes will be installed for the 172.17.3.128/25 and 172.17.2.0/24
networks? (Choose three)
Core1#show ip eigrp all-links
IP EIGRP Topology table for AS(65001)/ID(172.17.10.1)
Codes:P-Passive, A-Active, U-Update, Q-Query, R-Reply, rreply Status, s-sia Status
P 172.17.3.128/25, 2 successors, FD is 30720, semo 9
via 172.17.10.2 (30720/28160), FastEtehrnet0/1
via 172.17.3.2 (30720/28160), FastEtehrnet0/3
P 10.140.0.0/24, 1 successors, FD is 156160, semo 16
via 172.17.3.2 (156160/128256), FastEtehrnet0/3
via 172.17.10.2 (157720/155160), FastEtehrnet0/1
P 172.17.10.0/24, 1 successors, FD is 28160, semo 1
via Connected FastEthernet0/1
P 172.17.0.0/30, 1 successors, FD is 20514560, semo15
via 172.17.1.1 (20514560/205122000), FastEtehrnet0/2
via 172.17.10.2 (20516120/20513560), FastEtehrnet0/1
P 172.17.1.0/24, 1 successors, FD is 28160, semo 2
via Connected FastEthernet0/2
P 172.17.2.0/24, 1 successors, FD is 30720, semo 8
via 172.17.10.2 (30720/28160), FastEtehrnet0/1
via 172.17.3.2 (33280/30720), FastEtehrnet0/3
P 172.17.3.0/25, 1 successors, FD is 28160, semo 3
via Connected FastEthernet0/3
Core1#
Select the best response.
which of the following?
When a route receives an LSA (within an LSU), it does not do which of the following?
Select the best response.
What happens when the router stops receiving advertisements for the 10.1.2.0/24 network?
Refer to the exihibit.What happens when the router stops receiving advertisements for the
10.1.2.0/24 network?
Router#show ip route
C 10.1.3.0/24 is directly connected, Serial2
D 10.1.2.0/24 [90/10597472] via 10.1.1.2, 00:23:24,
Serial1
D 10.0.0.0/8 is a summary, 00:23:20, Null0
C 10.1.1.0/24 is directly connected, Serial1
S 192.168.20.0/24 is directly connected, Ethernet0
Select the best response.
