All interfaces are active. DSW2 has not become the active device for the VLAN 103 HSRP group. As related to
the VLAN 103 HSRP group, what can be done to make the group function properly?

During routine maintenance, it became necessary to shut down the GigabitEthernet1/0/1 interface on DSW 1
and DSW2. All other interfaces were up. During thistime, DSW1 became the active router for the VLAN 104
HSRP group. As related to the VLAN 104 HSRP group, what can to be done to make the group function
properly?

What is the priority value of the VLAN 105 HSRP group on DSW2?

If GigabitEthernet1/0/1 on DSW2 is shut down, what will be the resulting priority value of the VLAN 1015 HSRP
group on router DSW2?

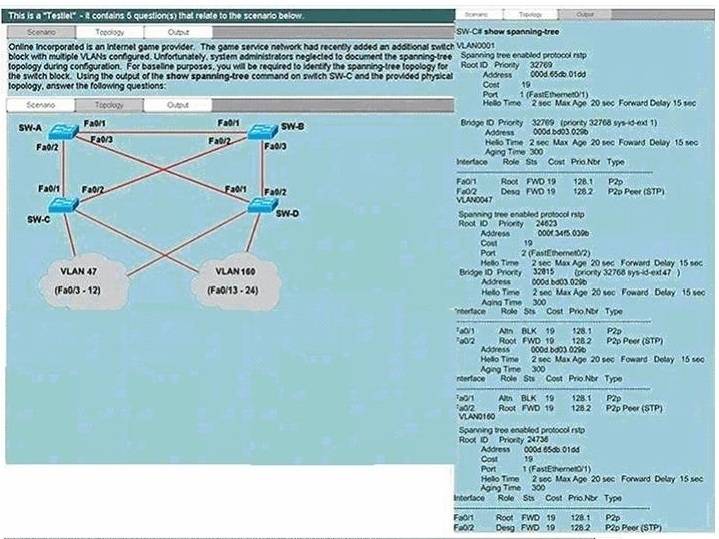

Which port state is interface Fa0/2 of switch SW-B in for VLAN1 and 175?

Which Spanning Tree Protocol has been implemented on switch SW-B?

Which bridge ID belongs to switch SW-A?

Which port role has interface Fa0/2 of switch SW-A adopted for VLAN 44?

VTP Lab Sim 1
The headquarter offices for a book retailer are enhancing their wiring closets with Layer3 switches. The new
distribution-layer switch has been installed and a new access-layer switch cabled to it. Your task is to configure
VTP to share VLAN information from the distribution-layer switch to the access-layer devices. Then, itis
necessary to configure interVLAN routing on the distribution layer switch to route traffic between thedifferent
VLANs that are configured on the access-layer switches; however, it is not necessary for you to make the
specific VLAN port assignments on the access-layer switches. Also, because VLAN database mode is being
deprecated by Cisco, all VLAN and VTP configurations are to be completed in the global configuration mode.
Please reference the following table for the VTP and VLAN information to be configured:


These are your specific tasks:
1. Configure the VTP information with the distribution layer switch as the VTP server
2. Configure the VTP information with the access layer switch as a VTP client
3. Configure VLANs on the distribution layer switch
4. Configure inter-VLAN routing on the distributionlayer switch
5. Specific VLAN port assignments will be made as users are added to the access layer switches in the future.
6. All VLANs and VTP configurations are to completed in the global configuration. To configure the switch click
on the host icon that is connected to the switch beway of a serial console cable.

VTP Lab Sim 2
Acme is small export company that has an existing enterprise network comprised of 5 switches; CORE,DSW1,
DSW2,ASW1 and ASW2. The topology diagram indicates their desired pre-VLAN spanning tree mapping.

Previous configuration attempts have resulted in the following issues:
– CORE should be the root bridge for VLAN 20; however, DSW1 is currently the root bridge for VLAN 20.
– Traffic for VLAN 30 should be forwarding over thegig 1/0/6 trunk port between DSW1 and DSW2. However
VLAN 30 is currently using gig 1/0/5.
– Traffic for VLAN 40 should be forwarding over thegig 1/0/5 trunk port between DSW1 and DSW2. However
VLAN 40 is currently using gig 1/0/6.
You have been tasked with isolating the cause the these issuer and implementing the appropriate solutions.
You task is complicated by the fact that you only have full access to DSW1, with isolating the cause of these
issues and implementing the appropriate solutions, Your task is complicated by the fact that you only have full
access to DSW1, with the enable secret password cisco. Only limited show command access is provided on
CORE, and DSW2 using the enable 2 level with a password of acme. No configuration changes will be possible
on these routers. No access is provided to ASW1 or ASW2.
