SIMULATION
Case 1

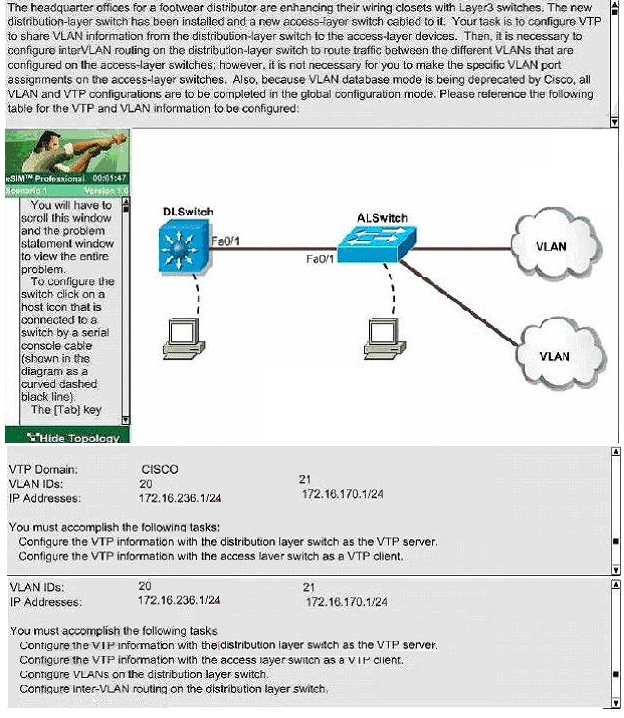

You must accomplish the following tasks?

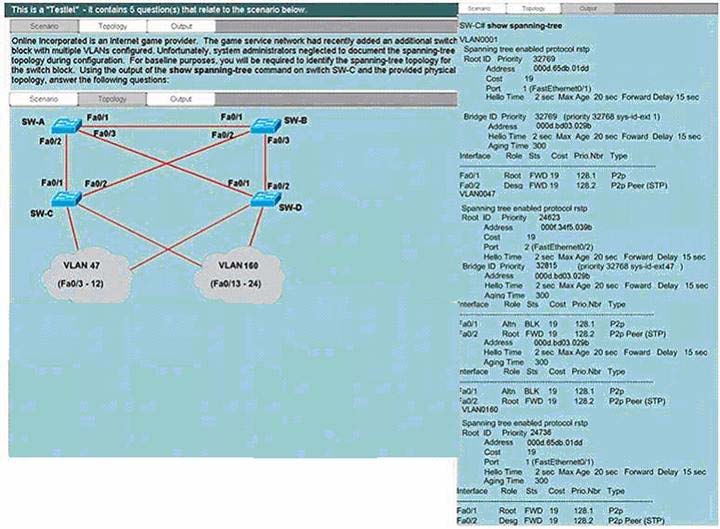

Which port state is interface Fa0/2 of switch SW-B in for VLANs 1 and 175?

DRAG DROP

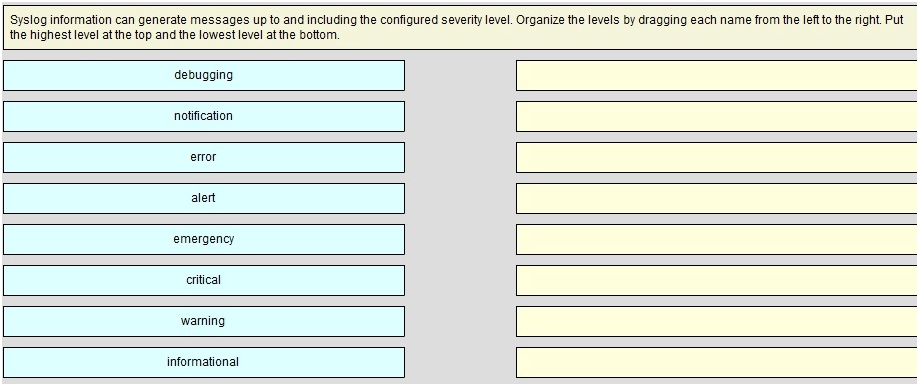

Syslog information can generate messages up to and including the configured severity level.
Organize the level by dragging each name from the left to the right.
Put the highest level at the top and the lowest level at the bottom.

DRAG DROP

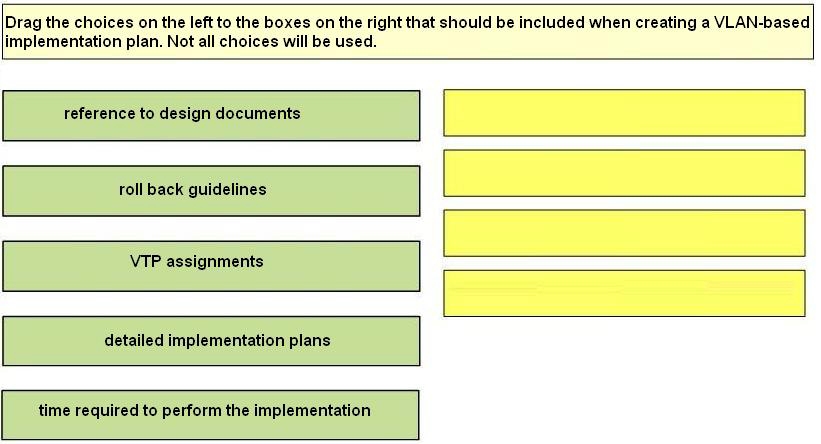

Drag the choices on the left to the boxes on the right that should be included when creating a VLAN-based implementation plan. Not all choices will be used.

DRAG DROP

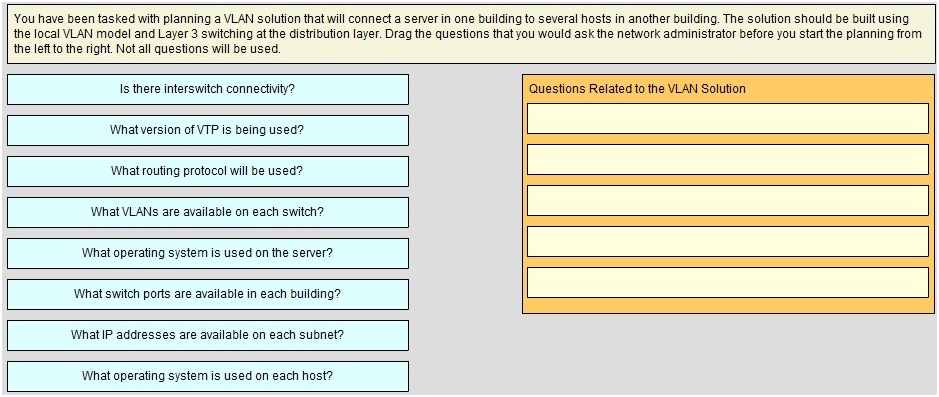

You have been tasked with planning a VLAN solution that will connect a server in one building to serveral hosts in another building.

SIMULATION
LAB
Refer to the Exhibit.

The information of the question

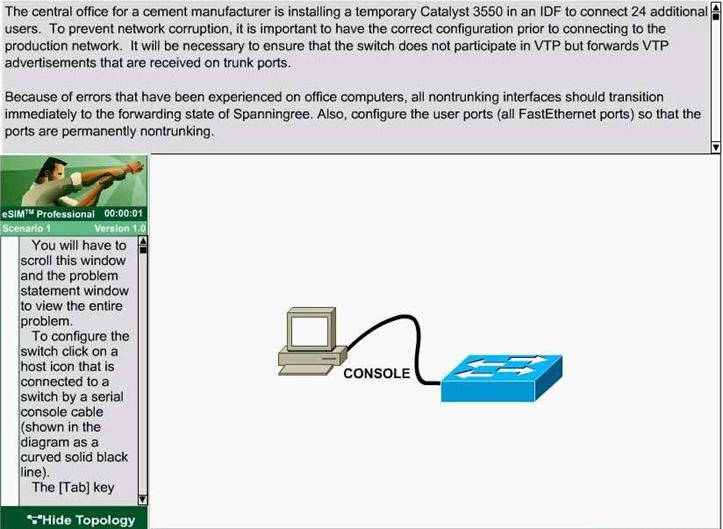

You will configure FastEthernet ports 0/12 through 0/24 for users who belong to VLAN 20.
Also, all VLAN and VTP configurations are to be completed in global configuration mode as
VLAN database mode is being deprecated by Cisco. You are required to accomplish the
following tasks:
1. Ensure the switch does not participate in VTP but forwards VTP advertisements received
on trunk ports.
2. Ensure all non-trunking interfaces (Fa0/1 to Fa0/24) transition immediately to the
forwarding state of Spanning-Tree.
3. Ensure all FastEthernet interfaces are in a permanent non-trunking mode.
4. Place FastEthernet interfaces 0/12 through 0/24 in VLAN 20

Which Spanning Tree Protocol has been implemented on switch SW-B?

Which port role has Interface Fa0/2 of switch SW-A adopted for VLAN 44?

SIMULATION
AAAdot1x Lab
Acme is a small shipping company that has an existing enterprise network comprised of 2
switches;DSW1 and
ASW2. The topology diagram indicates their layer 2 mapping. VLAN 40 is a new VLAN that
will be used to provide the shipping personnel access to the server. For security reasons, it
is necessary to restrict access to
VLAN 20 in the following manner:
– Users connecting to ASW1’s port must be authenticate before they are given access to the network.
-Authentication is to be done via a Radius server:
– Radius server host: 172.120.39.46
– Radius key: rad123
– Authentication should be implemented as close to the host device possible.
– Devices on VLAN 20 are restricted to in the address range of 172.120.40.0/24.
– Packets from devices in the address range of 172.120.40.0/24 should be passed on VLAN 20.
– Packets from devices in any other address range should be dropped on VLAN 20.
– Filtering should be implemented as close to the server farm as possible.
The Radius server and application servers will be installed at a future date. You have been
tasked with implementing the above access control as a pre-condition to installing the
servers. You must use the available
IOS switch features.

SIMULATION
Acme is small export company that has an existing enterprise network comprised of 5
switches; CORE,DSW1,
DSW2,ASW1 and ASW2. The topology diagram indicates their desired pre-VLAN spanning
tree mapping.
Previous configuration attempts have resulted in the following issues:
– CORE should be the root bridge for VLAN 20; however, DSW1 is currently the root bridge
for VLAN 20.
– Traffic for VLAN 30 should be forwarding over the gig 1/0/6 trunk port between DSW1 and
DSW2.
However VLAN 30 is currently using gig 1/0/5.
– Traffic for VLAN 40 should be forwarding over the gig 1/0/5 trunk port between DSW1 and
DSW2.
However VLAN 40 is currently using gig 1/0/6.
You have been tasked with isolating the cause the these issuer and implementing the
appropriate solutions. You task is complicated by the fact that you only have full access to
DSW1, with isolating the cause of these issues and implementing the appropriate solutions,
Your task is complicated by the fact that you only have full access to DSW1, with the enable
secret password cisco. Only limited show command access is provided on CORE, and
DSW2 using the enable 2 level with a password of acme. No configuration changes will be
possible on these routers. No access is provided to ASW1 or ASW2.

hostname DSW1
!
enable secret 5 $1$wN16$j5RnayatKfxaKxhX30TVo0
!
no aaa new-model

switch 1 provision ws-c3750g-24t
ip subnet-zero
!
no file verify auto
!
spanning-tree mode pvst
spanning-tree extend systen-id
spanning-tree “vlan 20 priority 28672
spanning-tree vlan 30 priority 24576
!
vlan internal allocation policy ascending
!
interface GigabitEthernet1/0/1
description trunk line to ASW1
switchport trunk encapsulation dotlq
switchport mode trunk
switchport nonegotiate
speed 100
duplex full
!
interface GigabitEthernet1/0/2
shutdown
!
interface GigabitEthernet1/0/3
shutdown
!
interface GigabitEthernet1/0/4
shutdown
!
interface GigabitEthernet1/0/5
description trunk line to DSW 2
switchport trunk encapsulation dotlq
switcbport mode trunk
switchport nonegotiate
speed 100
duplex full
!
interface GigabitEthernet1/0/6
description trunk line to DSW 2
switchport trunk encapsulation dotlq
switchport mode trunk
switchport nonegotiate
speed 100
duplex full
!

interface GigabitEthemet1/0/7
shutdown
!
interface GigabitEthemet1/0/8
shutdown
!
Interface GigabitEthernetl/0/9
description trunk line to CORE
switchport trunk encapsulation dotlq
switchport mode trunk
!
end
DSW1# Show sp
DSW1# Show spanning-tree
VLAN0001
Spanning tree enabled protocol ieee
Root ID Priority 32769
Address 0016. 4658. f300
Cost 19
Port 9 (GigabitEthernet/0/9)
Hello Time 2 sec Max Age 20 sec Forward Delay 15 sec
Bridge ID Priority 32769 (priority 32768 sys-id-ext 1)
Address 0016. 46fa. 9b00
Hello Time 2 sec Max Age 20 sec Forward Delay I5 sec
Aging Time 300

VLAN0020
Spanning three enabled protocol ieee
Root ID Priority 28692
Address 0016. 46fa. 9b00
This bridge is the root
Bridge ID Priority 28692 (priority 28672 sys-id-ext 20)
Address 0016. 46fa. 9b00
Hello Time 2 sec Max Age 20 sec Forward Delay I5 sec
Aging Time 300

VLAN0020
Spanning three enabled protocol ieee
Root ID Priority 28692
Address 0016. 46fa. 9b00
This bridge is the root
Bridge ID Priority 28692 (priority 28672 sys-id-ext 20)
Address 0016. 46fa. 9b00
Hello Time 2 sec Max Age 20 sec Forward Delay I5 sec
Aging Time 300

VLAN0030
Spanning three enabled protocol ieee
Root ID Priority 24606
This bridge is the root
Bridge ID Priority 28692 (priority 28672 sys-id-ext 20)
Address 0016. 46fa. 9b00
Hello Time 2 sec Max Age 20 sec Forward Delay I5 sec
Aging Time 300

VLAN0040
Spanning three enabled protocol ieee
Root ID Priority 24616
Address 0016. 46fa. 6a00
Cost 19
Port 9 (GigabitEthernet/0/9)
Hello Time 2 sec Max Age 20 sec Forward Delay I5 sec
Bridge ID Priority 32808 (priority 32768 sys-id-ext 40)
Address 0016. 46fa. 9b00
Hello Time 2 sec Max Age 20 sec Forward Delay I5 sec
Aging Time 300

DSW1#
