Refer to the exhibit. Which network is characterized by the output from the show cdp neighbors
command?
Select the best response.

Which is a reliable network auditing methodology for discovering applications on the network and
their usage characteristics?
Select the best response.

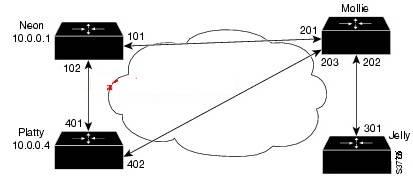

Refer to the exhibit. Given that the network is running OSPF routing protocol over the WAN, which
type of
OSPF routing is being used on the router labeled “Mollie”? Select the best response.

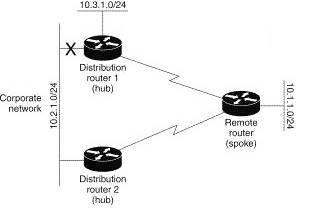

Refer to the exhibit. The network is running the EIGRP routing protocol. Distribution router 1 loses
the link to the corporate network. How should the remote spoke router be configured to prevent it
from being the next lowest-cost path to network 10.3.1.0? Select the best response.

Refer to the exhibit. Which would be a benefit of designing the OSPF network as shown? Select
the best response.

You have a client that currently has a single connection to an ISP. Your client is growing rapidly
and would like to provide more capacity to the Internet without losing the ability to support high
availability. Which methodology will support dual-homed connections to the same ISP and also
support high availability?
Select the best response.

Your client is adding a new R&D facility to its existing, three-building corporate campus. The new
building will be four stories high and house from 150 to 400 employees. The client would like to
deploy IP communications to this building and connect it to the existing campus TDM phone
system. The new building will use collaborative workspaces for each team, and it will require that
each team member have the flexibility to move among work areas yet remain connected to the
network and receive phone calls. Which four technologies will be applicable here? (Choose four.)
Select 4 response(s).

A client organization is investigating deploying IP communications. It has a traditional hub- andspoke Frame Relay WAN. It has five remote sites, and the WAN link speed for each location is
512 kbps. The WAN supports typical IP-based applications, but the client will also be rolling out a
new ERP application that will be considered mission critical. Which three QoS mechanisms will be
useful in redesigning the WAN to support the mission-critical application and IP communications?
(Choose three.)
Select 3 response(s).

You have received an RFP from a potential client to design a network for a new corporate
campus. This campus will encompass administration, sales, and R&D, and it will pull all the

distributed IT functions into a new data center. The campus will consist of five buildings, each with
four floors. The buildings will be linked via high-strand-count, single-mode fiber-optic cable to the
new data center in building 3. Each building will have an MDF with at least one telco closet per
floor and at least two runs of Category 5 UTP cable will go to each work location. Multistrand
multimode will connect each telco closet to the MDF. Each MDF will have dedicated power circuits
and be backed up by batteries in the basement of each building and a generator.
The corporation will require 3500 TDM telephones and approximately 100 of these will be in a call
center in building 2. The corporation needs to increase collaboration in the workforce.
Employees need the flexibility to be able to move from one floor to another or from one building to
another to accomplish their jobs. Managers also need this flexibility without losing connectivity to
the corporate network or their phones. Building 4 will house R&D. This portion of the network
requires connectivity to the Internet, but it also must restrict which employees have access to
certain parts of the R&D network. The data center will house all connections to the Internet and to
the PSTN. The corporation also provides access to customers for customized applications
support. A network operations center will monitor and maintain the network on a 365/24/7 basis.
Which advanced technologies will be applicable to answering this RFP? (Choose three.)
Select 3 response(s).
