Refer to the exhibit. The show ip route command was issued from one of the routers shown in the
exhibit and the following output was displayed:10.0.0.0/30 is subnetted, 4 subnetsO 10.10.10.8
[110/128] via 10.10.10.2, 00:02:44, Serial0/0O 10.10.10.12 [110/128] via 10.10.10.6, 00:02:44,
Serial0/1C 10.10.10.0 is directly connected, Serial0/0C 10.10.10.4 is directly connected,
Serial0/1C 192.168.1.0/24 is directly connected, FastEthernet0/0O 192.168.2.0/24 [110/138] via
10.10.10.6, 00:02:44, Serial0/1 [110/138] via 10.10.10.2, 00:02:44, Serial0Which router produced
this output?

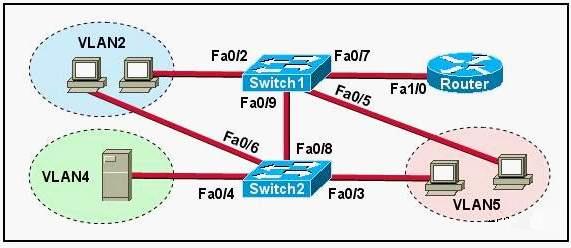

A network associate is trying to understand the operation of the FLD Corporation by studying the
network in the exhibit. The associate knows that the server in VLAN 4 provides the necessary
resources to support the user hosts in the other VLANs. The associate needs to determine which
interfaces are access ports. Which interfaces are access ports? (Choose three.)

Refer to the exhibit. Workstation A must be able to telnet to switch SW-A through router RTA for
management purposes. What must be configured for this connection to be successful?

What three pieces of information can be used in an extended access list to filter traffic? (Choose
three.)

Which wild card mask will enable a network administrator to permit access to the Internet for only
hosts that are assigned an address in the range of 192.168.8.0 through 192.168.15.255?

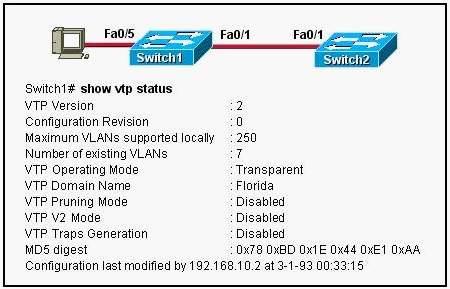

Refer to the exhibit. What will be the result of issuing the following commands? Switch1(config)#
interface fastethernet 0/5Switch1(config-if)# switchport mode accessSwitch1(config-if)# switchport
access vlan 30

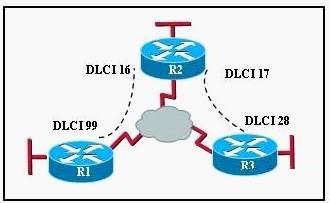

Refer to the exhibit. Which statement describes DLCI 17?

Which line from the output of the show ip interface command indicates that there is a Layer 1
problem?

When a new trunk link is configured on an IOS based switch, which VLANs are allowed over the
link?

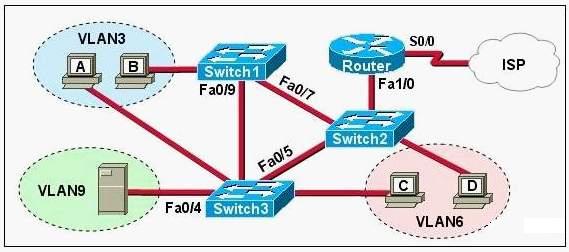

Refer to the exhibit. A technician is investigating a problem with the network that is shown. The
router is a 2800 model and all switches are 2950 models. These symptoms have been observed:-
All of the user hosts can access the Internet.- None of the user hosts can access the server
located in VLAN 9.- All of the hosts can ping each other.What could cause these symptoms?
