Assume that all ports on Layer 2 devices are in the same Virtual LAN (VLAN). View the given network topology. (Click the Exhibit(s) button.)

Which network device should be placed at the highlighted box to produce a total of two broadcast domains and seven collision domains in the network?

You are purchasing a device to upgrade your network. You need to determine the type of device required, as well as the number and type of required interfaces.
The device will host three LAN subnets and a T1 Internet connection.
Which of the following device and interface combinations will support this requirement without providing any unnecessary interfaces or using subinterfaces?

Which of the following statements are TRUE regarding the following output? (Choose all that apply.)

You are the network administrator for your company. The Chief Technical Officer of the company is looking for a routing solution that satisfies the following

requirements:
No routing protocol advertisements
Increased network security
No routing protocol overhead
Not concerned about fault tolerance
Which of the following routing techniques matches the criteria?

Which Cisco Internetwork Operating System (IOS) command is used to view the VLAN Trunking Protocol (VTP) statistics information?

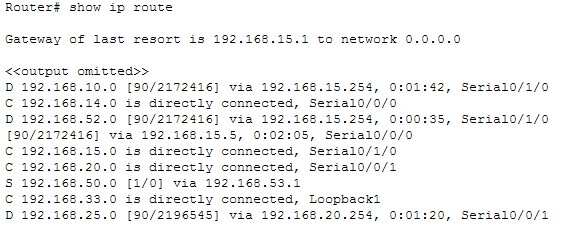

Refer to the following sample output:

Which Cisco Internetwork Operating System (IOS) command produces this output?

How many IP addresses are available for hosts in the 192.168.16.64 /26 subnet?

You have the following configuration on your router:
ip dhcp pool POOLNAME
network 10.1.0.0 255.255.255.0
default-router 10.1.0.254

dns-server 10.1.0.200
What command would you run to prevent the last available IP address in the scope from being allocated to a host via DHCP?

Which of the following is a classful routing protocol?

What port types are available for Rapid Spanning Tree Protocol (RSTP) but NOT available in Spanning Tree Protocol (STP)? (Choose two.)
