LAB

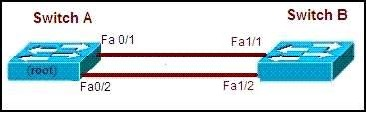

Assuming that VLAN 1 and VLAN 2 traffic is enabled on the above network, what effect will the following command have when entered on port 0/2 on Switch A

spanning-tree vlan 1 port-priority 16

Which three interface commands will configure the switch port to support a connected Cisco phone and to trust the CoS values received on the port if CDP discovers that a Cisco phone is attached? (Choose three.)

LAB

LAB

LAB

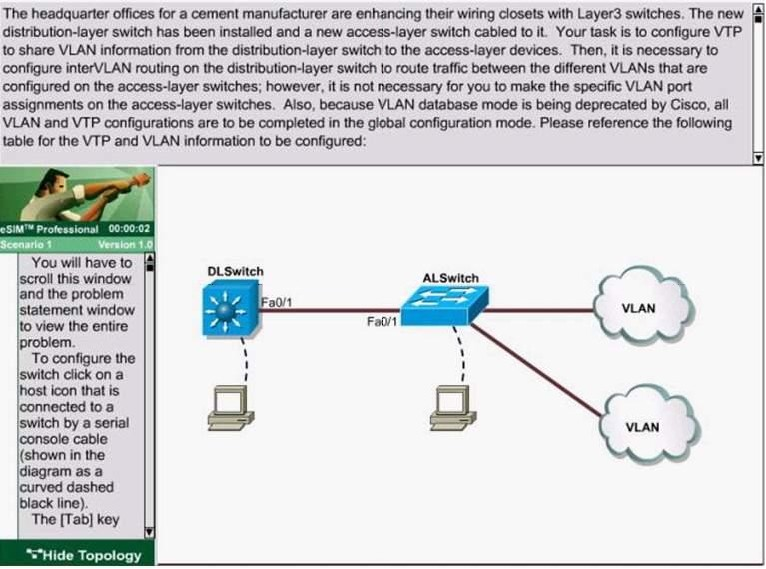

The information of the question
VTP Domain name : cisco
VLAN Ids 20 31
IP Addresses 172.16.71.1/24 172.16.132.1/24
These are your specific tasks:
1. Configure the VTP information with the distribution layer switch as the VTP server
2. Configure the VTP information with the access layer switch as a VTP client
3. Configure VLANs on the distribution layer switch
4. Configure inter-VLAN routing on the distribution layer switch
5. Specific VLAN port assignments will be made as users are added to the access layer switches in the
future.
6. All VLANs and VTP configurations are to completed in the global configuration To configure the
switch click on the host icon that is connected to the switch be way of a serial console cable.

LAB
The information of the question
You will configure FastEthernet ports 0/12 through 0/24 for users who belong to VLAN 20. Also, all VLAN and VTP configurations are to be completed in global configuration mode as VLAN database mode is being deprecated by Cisco. You are required to accomplish the following tasks:

1. Ensure the switch does not participate in VTP but forwards VTP advertisements received on trunk
ports.
2. Ensure all non-trunking interfaces (Fa0/1 to Fa0/24) transition immediately to the forwarding state of
Spanning-Tree.
3. Ensure all FastEthernet interfaces are in a permanent non-trunking mode.
4. Place FastEthernet interfaces 0/12 through 0/24 in VLAN 20

LAB

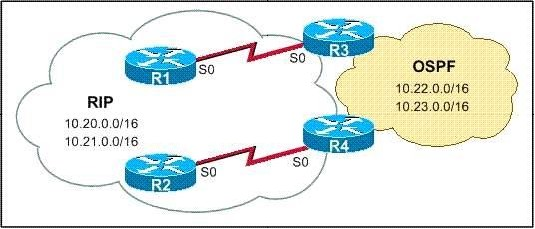

Refer to the exhibit. R1 and R2 belong to the RIP routing domain that includes the networks 10.20.0.0/16 and 10.21.0.0/16. R3 and R4 are performing two-way route redistribution between OSPF and RIP. A network administrator has discovered that R2 is receiving OSPF routes for the networks 10.20.0.0/16 and 10.21.0.0/16 and a routing loop has occurred.

Which action will correct this problem?

What are three key concepts that apply when configuring the EIGRP stub routing feature in a hub and spoke network? (Choose three.)
