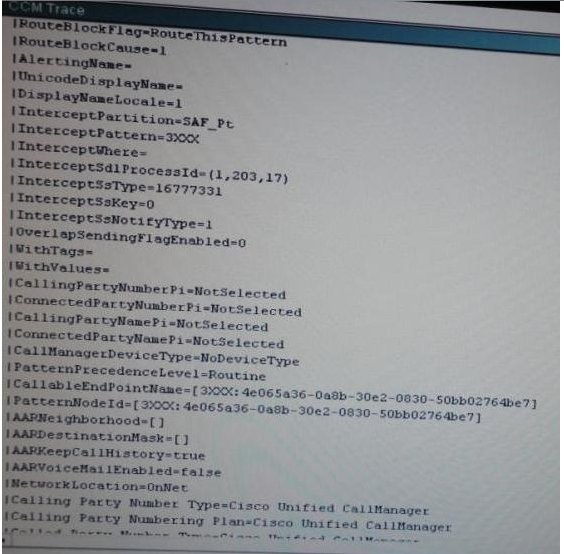

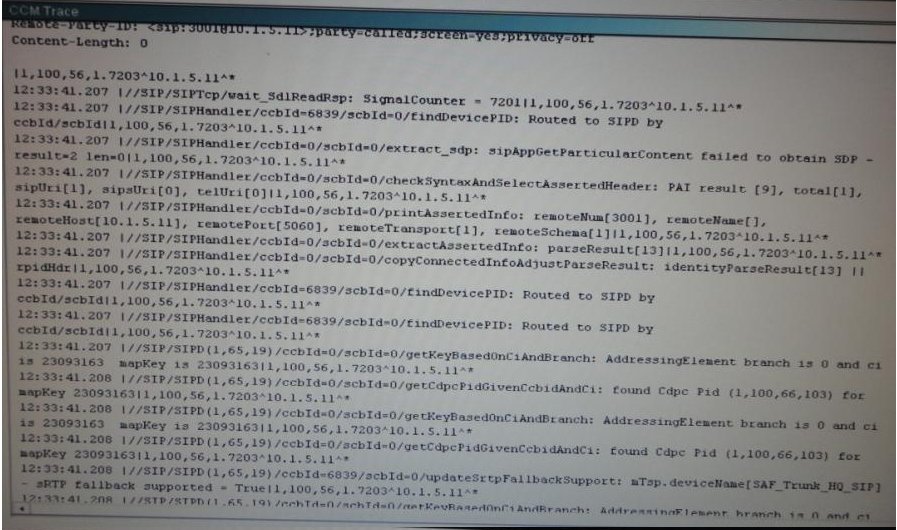

Refer to the exhibit.

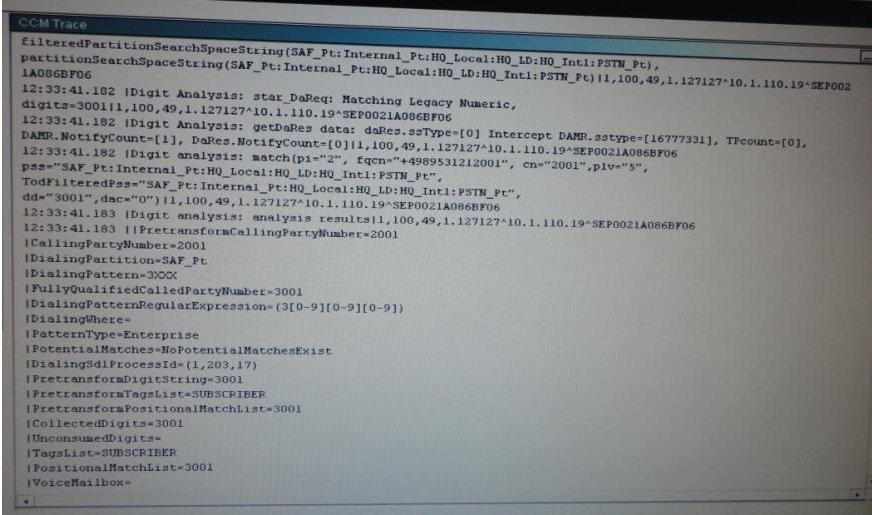

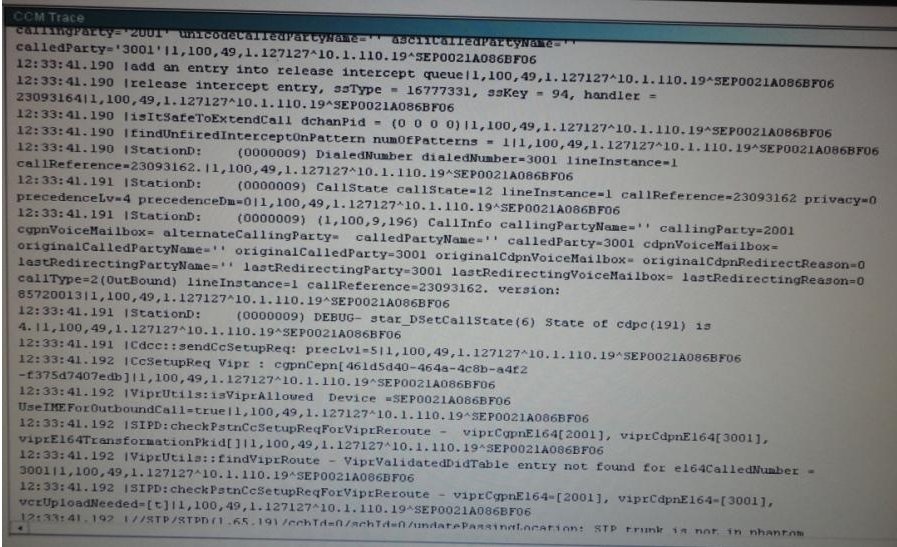

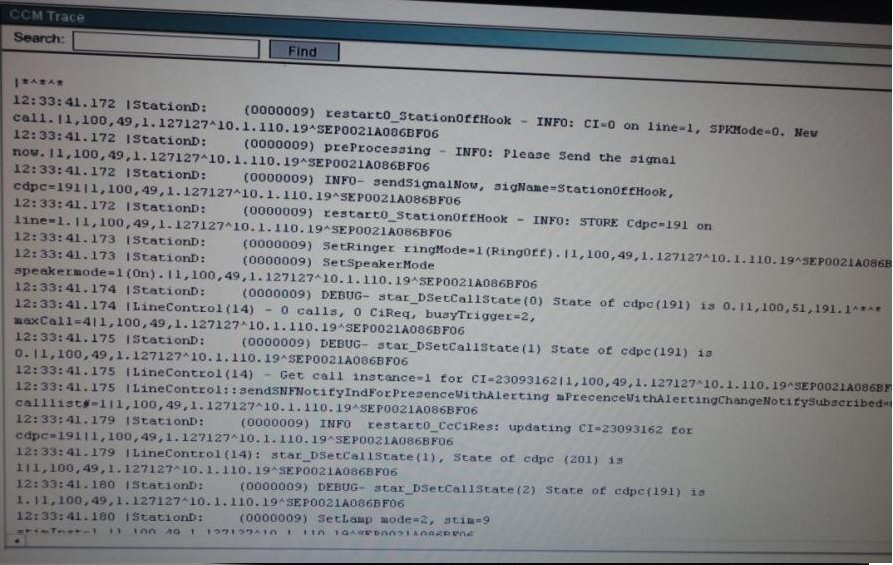

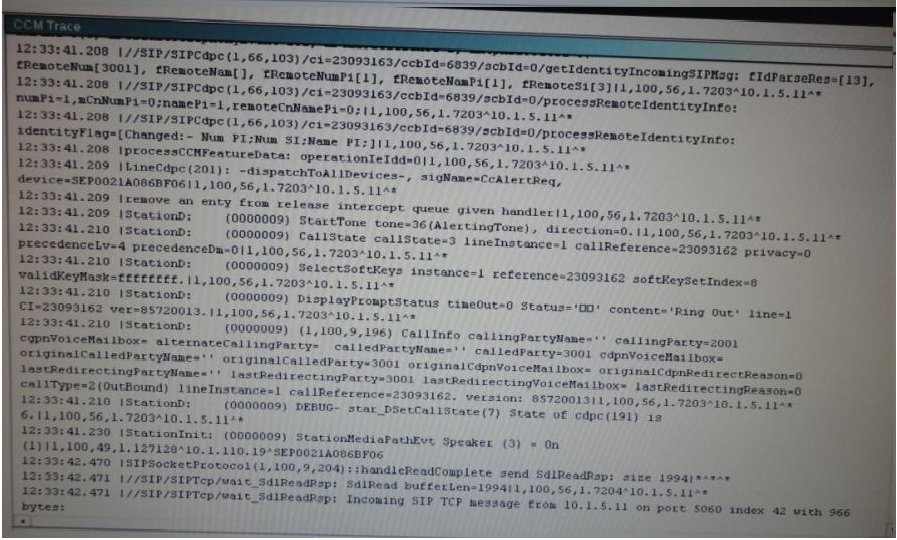

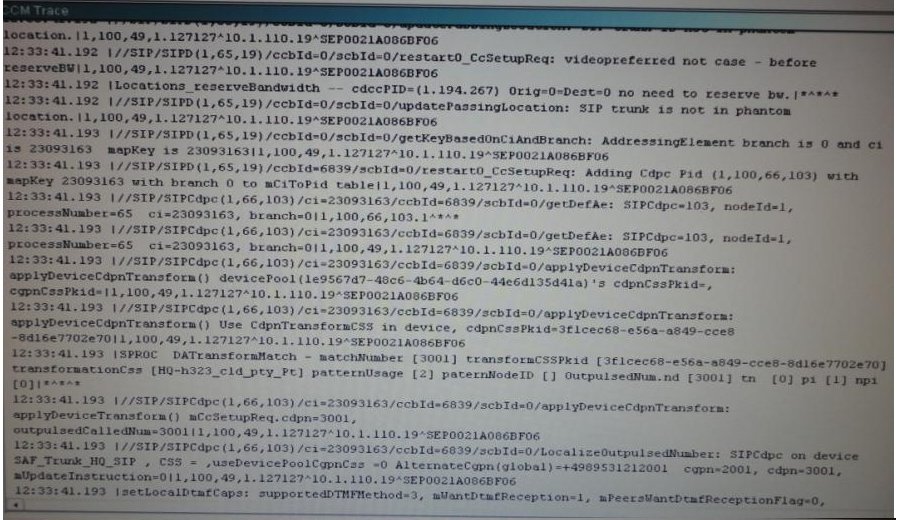

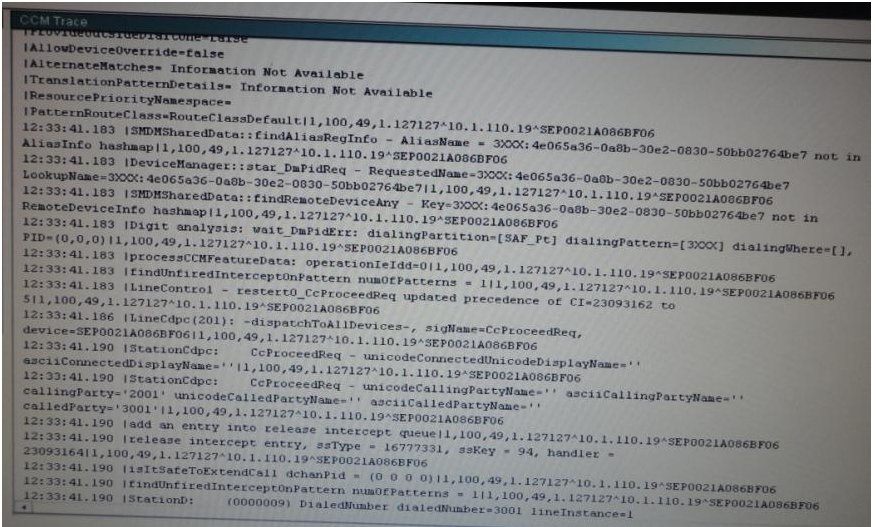

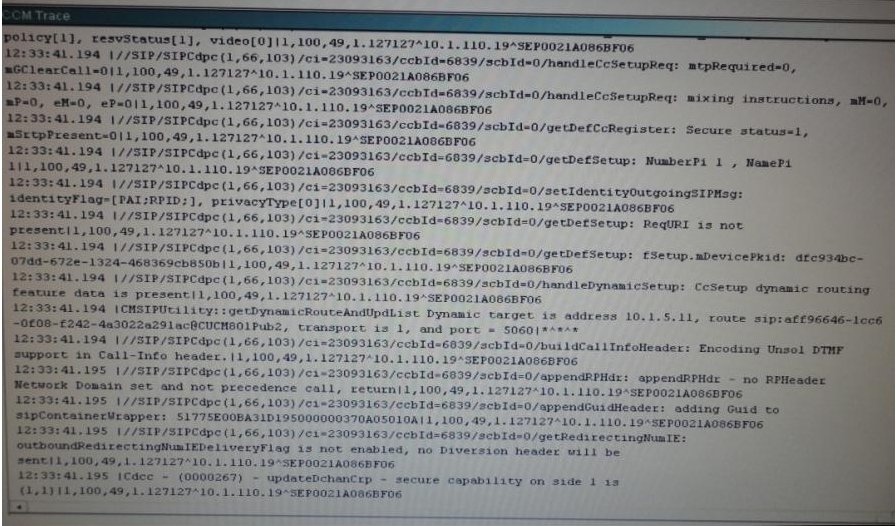

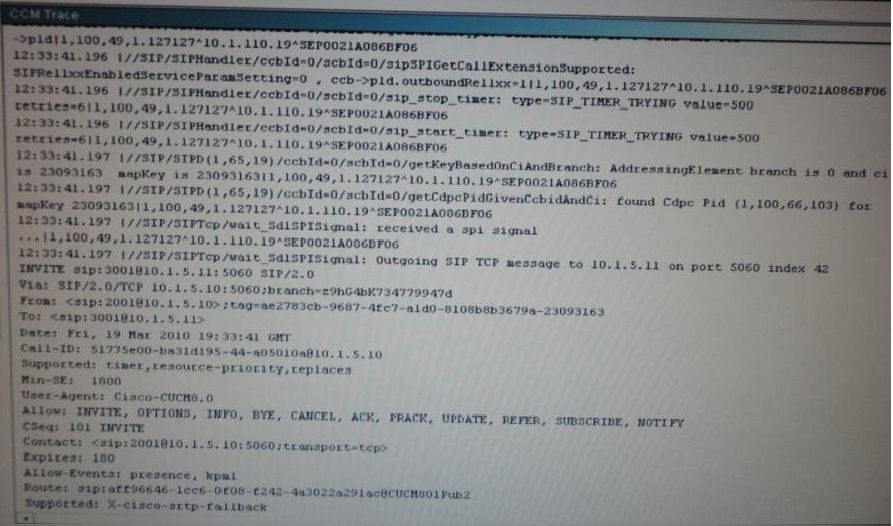

An intercluster call was placed from extension 2001 to 3001. The SDI trace from the calling cluster. Which RTP port was used by the calling phone?

Refer to the exhibit.

When an HQ caller places a call to extension 4001 the phone at BR2 rings. After the user at BR2 goes off hook, the call is disconnected. Examine the debug voice ccapi voice inout command output. What caused the issue?

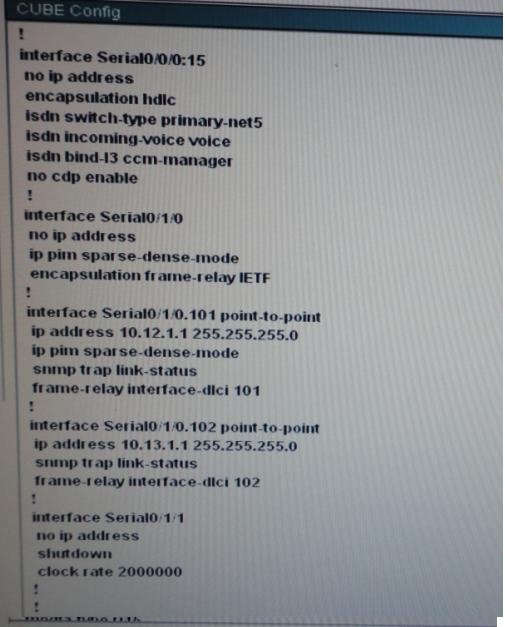

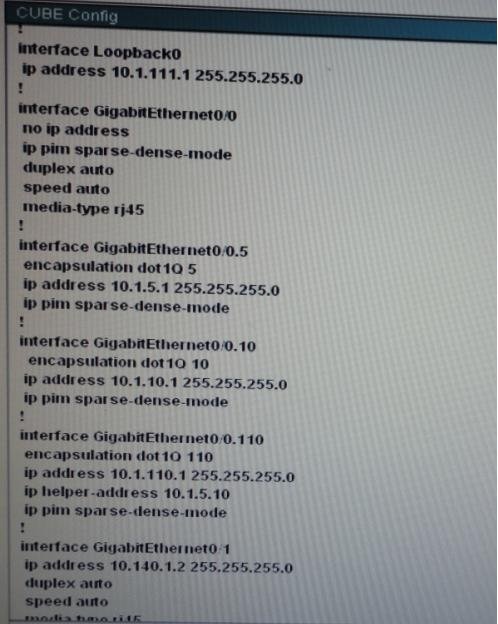

Refer to the exhibit

When the IP phone 2001 places a call to 90114940302156001, the call is sent to the Cisco Untified Border Element 40302156001 which is what the ITSP expects to receive. The ITSP support personnel claim that they never saw the call, issuing the debug CCSIP message command on the Cisco Unified Border Elmement results in the message “SIP/2 404 Not Found”.

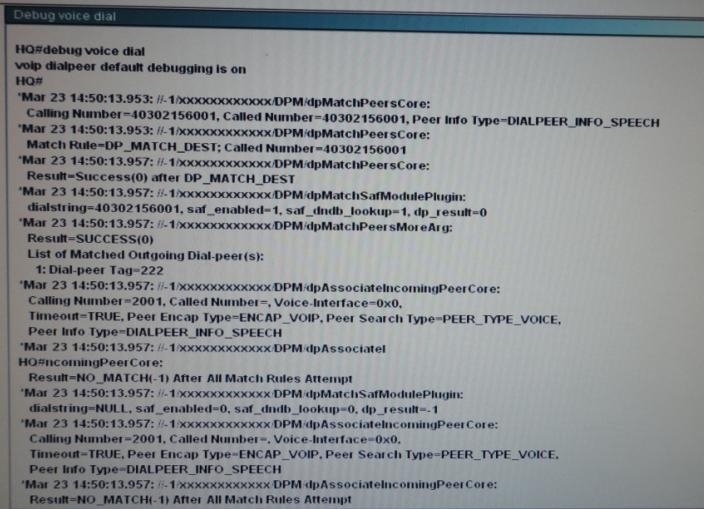

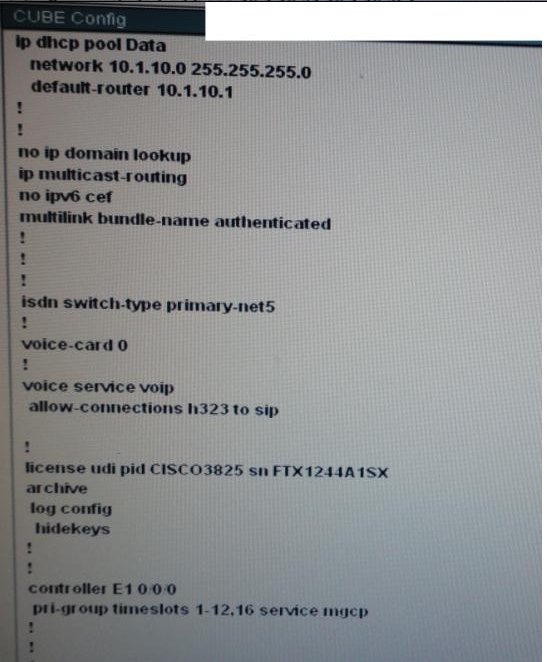

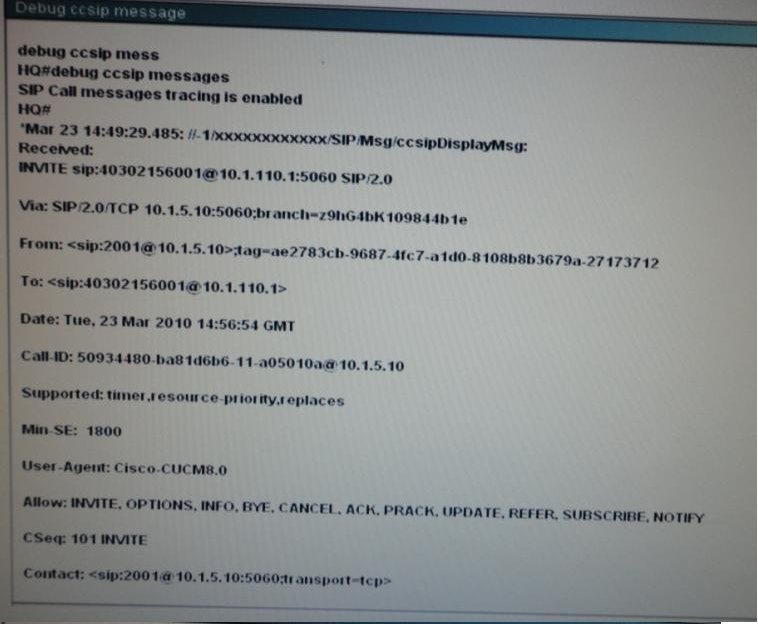

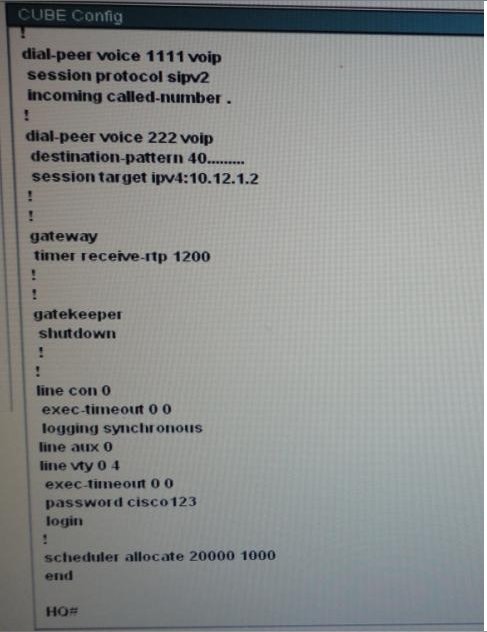

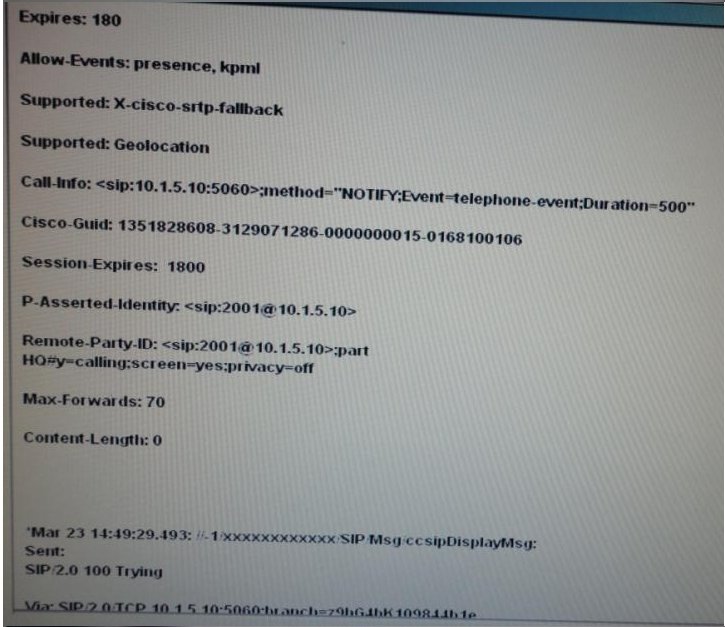

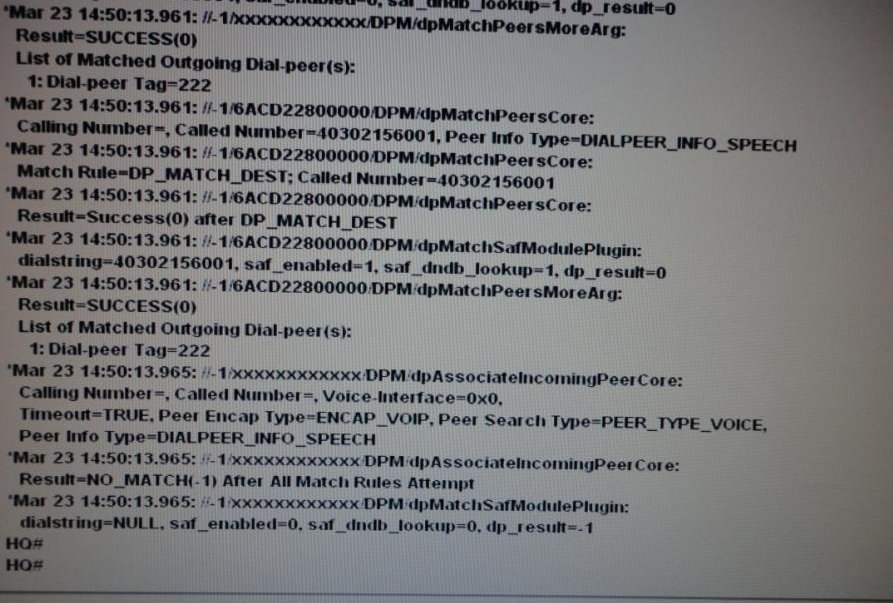

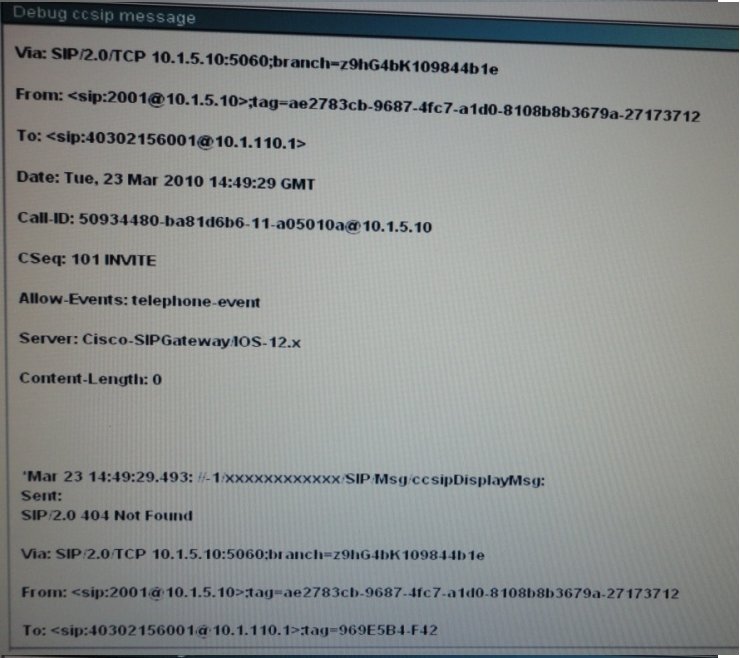

Refer to the Cisco Unified Border Element configuration, debug voice dial and ccsip message exhibits. Which situation can cause this issue?

Refer to the exhibits.

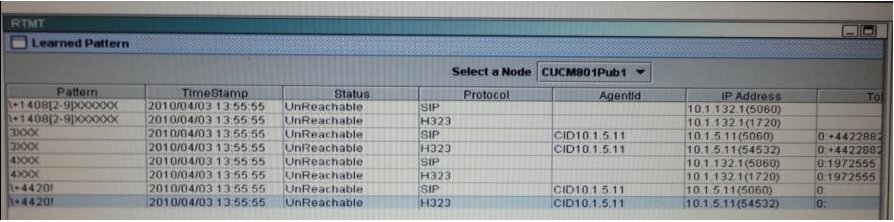

When a remote Cisco Unified Communications Manager learns the advertised patterns that are shown in the exhibit, which patterns would be shown in the Cisco Unified Communications Manager RTMT tool?

Refer to the exhibits.

The HQ_MRG that is shown in the exhibit is assigned to an MRGL, which is configured at the HQ phones. A call exists between two HQ phones that use G.711 codec. When one of the HQ users attempts to conference a BR phone across the WAN, the conference fails. The SDI trace shows an error “No transcoder device configured.” Which statement indicates the correct resolution or reason for the issue?

Which issue would cause an MGCP gateway to fail to register with Cisco Unified Communications Manager?

Assume a centralized Cisco Unified Communications Manager topology with the headquarters at RTP and remote located at the UK. All route patterns are assigned a route list that contains a route group pointing to the local gateway. RTP route patterns use the RTP gateway, and UK. Route patterns use the UK gateway. When a UK user logs into an RTP phone using the Cisco Extension Mobility feature and places an emergency call to 0000, which statement about the emergency call is true?

Which of these is used by the the Ciso IP phone to relay to the switch the information regarding how much power is needed?

Refer to the exhibit.

The exhibit shows the output of debug isdn q931. An inbound PSTN call was recieved by an MGCP gateway that is registered with a Cisco Unified Communications Manager. The call failed to ring extension 3001. If the phone at extension 3001 is registered and reachable through the gateway inbound CSS, which two actions can resolve this issue? (Choose two)

Which step in the problem-solving model is important to accurately interview end users to get all the pertinent details of the problem?
