In R4.1 of the 15454, the ML-series Ethernet cards provide QoS enhancements that allow Service Providers to deliver CIR/PIR (Committed Information Rate/Peak Information Rate) type SLA’s. Which two specific QoS mechanisms were added to accomplish this?

Click the Exhibit button to view the graph.

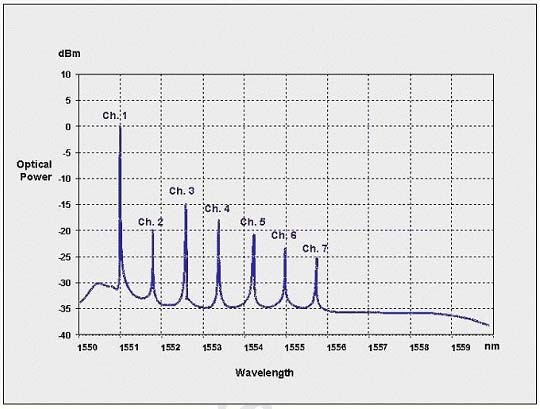

The graph represents optical signal power versus wavelength measurement from 1550nm to 1560nm.
What is the gain tilt of all of the seven channels?

Click the Exhibit button to view the topology.

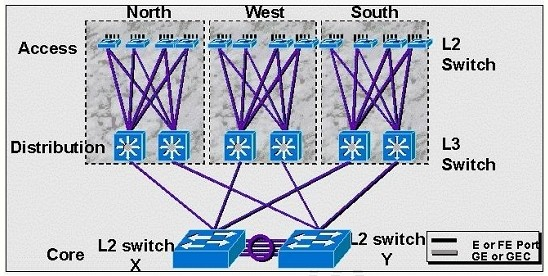

The diagram shows a campus with a L2 switched backbone. The backbone has a single VLAN (= subnet) with no loops. The links into the backbone are routed interfaces, not VLAN trunks. Switch X is the STP root of the core VLAN and switch Y is the standby root. The connection between X and Y is an EtherChannel. The network architect wants to add more redundancy by connecting the L3 switches in the distribution layer to both X and Y. What best describes that plan?

Click the Exhibit button.

The network shown supports Synchronous Status Messaging (SSM), which byte supplied by the ADM at
Site B in both directions in the section overhead is used for transporting SSM messages?

Click the Exhibit button to view the diagram.

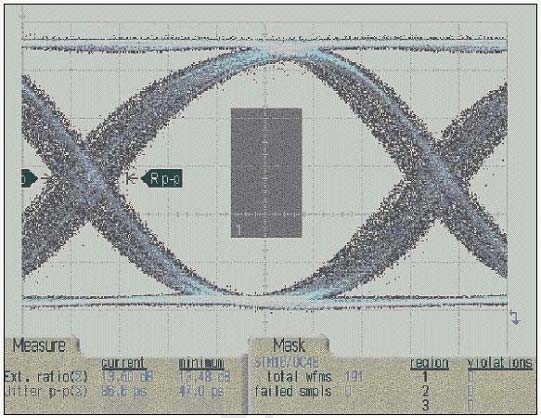

In the OC-48 signal shown, when is the extinction ratio acceptable?

Click the Exhibit button to view the configuration.

Using the shown debugging excerpt, what option best describes the problem?

What type of effect on optical signals occurs when temperature fluctuations and bending stresses on fiber?
