Case Study
This is a case study. Case studies are not timed separately. You can use as much exam time as you would like to complete each case. However, there may be additional case studies and sections on this exam. You must manage your time to ensure that you are able to complete all questions included on this exam in the time provided.
To answer the questions included in a case study, you will need to reference information that is provided in the case study. Case studies might contain exhibits and other resources that provide more information about the scenario that is described in the case study. Each question is independent of the other question on this case study.
At the end of this case study, a review screen will appear. This screen allows you to review your answers and to make changes before you move to the next sections of the exam. After you begin a new section, you cannot return to this section.
To start the case study
To display the first question on this case study, click the Next button. Use the buttons in the left pane to explore the content of the case study before you answer the questions. Clicking these buttons displays information such as business requirements, existing environment, and problem statements. If the case study has an All Information tab, note that the information displayed is identical to the information displayed on the subsequent tabs. When you are ready to answer a question, click the Question button to return to the question.
Requirements
Receipt processing
Concurrent processing of a receipt must be prevented.
Logging
Azure Application Insights is used for telemetry and logging in both the processor and the web application. The processor also has TraceWriter logging enabled. Application Insights must always contain all log messages.
Disaster recovery
Regional outage must not impact application availability. All DR operations must not be dependent on application running and must ensure that data in the DR region is up to date.
Security
• Users’ SecurityPin must be stored in such a way that access to the database does not allow the viewing of SecurityPins. The web application is the only system that should have access to SecurityPins.
• All certificates and secrets used to secure data must be stored in Azure Key Vault.
• You must adhere to the principle of least privilege and provide privileges which are essential to perform the intended function.
• All access to Azure Storage and Azure SQL database must use the application’s Managed Service Identity (MSI)
• Receipt data must always be encrypted at rest.
• All data must be protected in transit
• User’s expense account number must be visible only to logged in users. All other views of the expense account number should include only the last segment, with the remaining parts obscured.
• In the case of a security breach access to all summary reports must be revoked without impacting other parts of the system.
Issues
Upload format issue
Employees occasionally report an issue with uploading a receipt using the web application. They report that when they upload a receipt using the Azure File Share, the receipt does not appear in their profile. When this occurs, they delete the file in the file share and use the web application, which returns a 500 Internal Server error page.
Capacity issue
During busy periods, employees report long delays between the time they upload the receipt and when it appears in the web application.
Log capacity issue
Developers report that the number of log message in the trace output for the processor is too high, resulting in lost log messages.
Application code

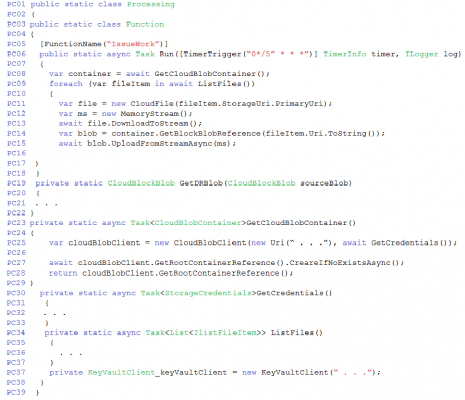

Processing.cs

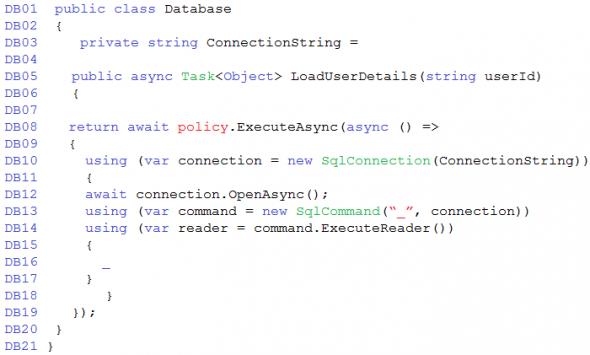

Database.cs

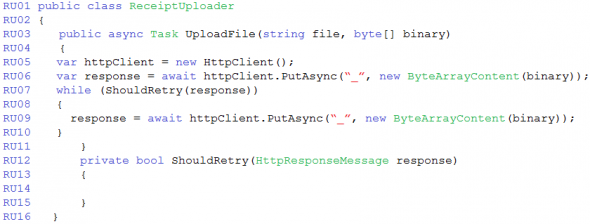

ReceiptUploader.cs

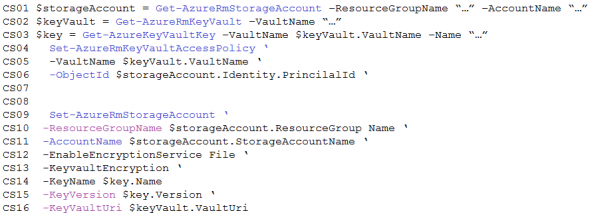

ConfigureSSE.ps1
You need to construct the link to the summary report for the email that is sent to users.
What should you do?
A. Create a SharedAccessBlobPolicy and add it to the containers SharedAccessPolicies.
Call GetSharedAccessSignature on the blob and use the resulting link.
B. Create a SharedAccessAccountPolicy and call GetSharedAccessSignature on storage account and use the resulting link.
C. Create a SharedAccessBlobPolicy and set the expiry time to two weeks from today.
Call GetSharedAccessSignature on the blob and use the resulting link.
D. Create a SharedAccessBlobPolicy and set the expiry time to two weeks from today.
Call GetSharedAccessSignature on the container and use the resulting link.
Explanation:
Scenario: Processing is performed by an Azure Function that uses version 2 of the Azure Function runtime. Once processing is completed, results are stored in Azure Blob Storage and an Azure SQL database. Then, an email summary is sent to the user with a link to the processing report. The link to the report must remain valid if the email is forwarded to another user.
Create a stored access policy to manage signatures on a container’s resources, and then generate the shared access signature on the container, setting the constraints directly on the signature.
Code example: Add a method that generates the shared access signature for the container and returns the signature URI.
static string GetContainerSasUri(CloudBlobContainer container)
{
//Set the expiry time and permissions for the container.
//In this case no start time is specified, so the shared access signature becomes valid immediately.
SharedAccessBlobPolicy sasConstraints = new SharedAccessBlobPolicy();
sasConstraints.SharedAccessExpiryTime = DateTimeOffset.UtcNow.AddHours(24);
sasConstraints.Permissions = SharedAccessBlobPermissions.List | SharedAccessBlobPermissions.Write;
//Generate the shared access signature on the container, setting the constraints directly on the signature.
string sasContainerToken = container.GetSharedAccessSignature(sasConstraints);
//Return the URI string for the container, including the SAS token.
return container.Uri + sasContainerToken;
}
Incorrect Answers:
C: Call GetSharedAccessSignature on the container, not on the blob.
References:
https://docs.microsoft.com/en-us/azure/storage/blobs/storage-dotnet-shared-access-signature-part-2
