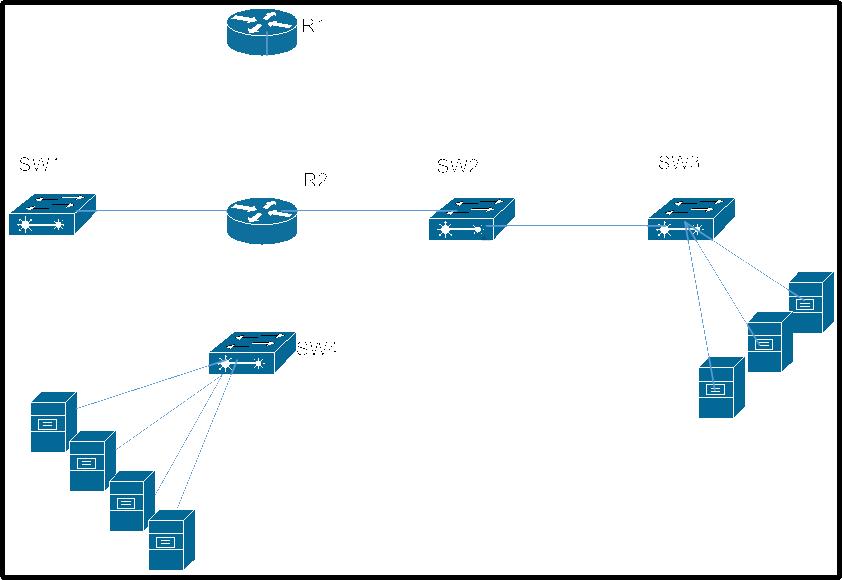

Refer to the exhibit. If switch SW2 was replaced with a router, which two effects would it have on
the network? (Choose two.)
A.
reduce the number of collision domains
B.
increase the number of broadcast domains
C.
increase the number of collision domains
D.
reduce the number of broadcast domains
E.
no change in collision domains
Can someone pls answer this questions? I think it is D and E
0
0
In the original state, both sides of the switch were part of the same broadcast domain. However, with it being replaced with a router, each side of the router is a different broadcast domain.
So, same number of collision domains, but the addition of another broadcast domain.
