Which of the following cables would be used to connect a router to a switch?

A. v.35
B. crossover
C. rollover

D. straight-through

Explanation:

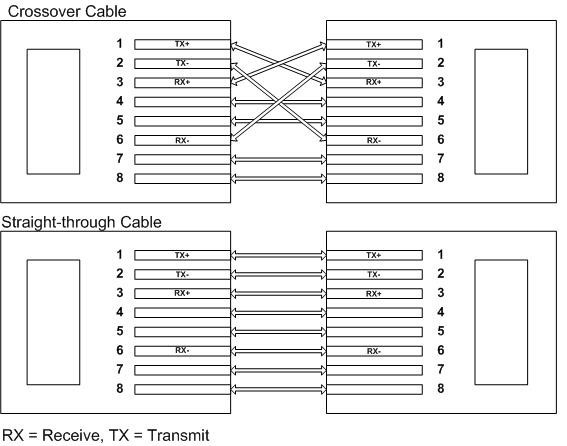

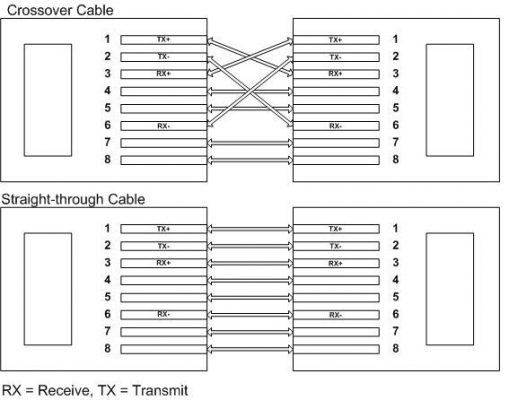

A straight-through cable would be used. When connecting “unlike” devices, such as a switch to a router, a straight-through cable is used. This is a cable where the wires are in the same sequence at both ends of the cable.

NOTE: The one exception to this general rule of connecting unlike devices with a straight-through cable is when a computer NIC is connected to an Ethernet port on a router. In that case, a crossover cable is used.

A v.35 cable is used to connect serial connections between routers. This cable has a male DB-60 connector on the Cisco end and a male Winchester connector on the network end. It comes in two types: DCE and DTE. It is often used to simulate a WAN connection in lab environments. In that case, the DCE end acts as the CSU/DSU and is the end where the clock rate is set. A CSU/DSU (Channel Service Unit/Data Service Unit) is a device that connects the router to the T1 or T3 line.

A crossover cable has two wires reversed and is used to connect “like” devices, such as a switch to a switch. It is also used when a computer NIC is connected to an Ethernet port on a router.

A rollover cable is used to connect to the console port of a router to configure the router. It is also called a console cable.

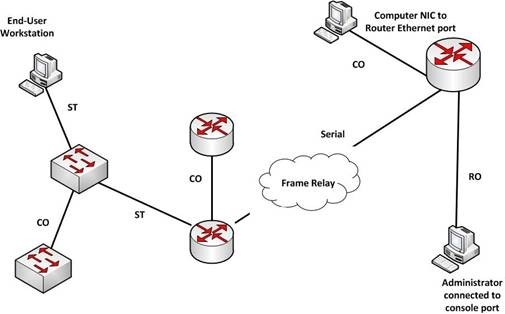

The diagram below illustrates the correct usage of each of the cable types shown using the following legend:
● SO Ethernet Straight through Cable
● CO Ethernet Crossover Cable
● Serial Serial cable
● RO Rollover cable

Objective:
Network Fundamentals
Sub-Objective:
Select the appropriate cabling type based on implementation requirements

References:
Cisco > Product Support > Routers > Cisco 1000 Series Routers > 5-in-1 V.35 Assembly and Pinouts > Document ID: 46803

Cisco > Tech Notes > Cabling Guide for Console and AUX Ports > Document ID: 12223
