A static map to the S-AMER location is required. Which command should be used to create this
map?
A.
frame-relay map ip 172.30.0.3 825 broadcast
B.
frame-relay map ip 172.30.0.3 230 broadcast
C.
frame-relay map ip 172.30.0.3 694 broadcast
D.
frame-relay map ip 172.30.0.3 387 broadcast
Explanation:
frame-relay map ip 172.30.0.3 230 broadcast
172.30.0.3 is S-AMER router ip address and its configure on 230 dlci value.

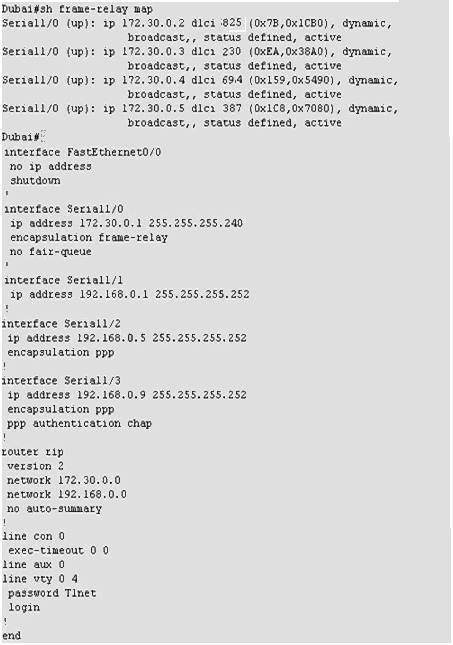

Check “show frame-relay map ” output in the diagram.
It looks to me like this was populated with Inverse-ARP anyway.
I have to go back and test my comprehension…if you HAD this output from that command…then wouldn’t the static mapping NOT be needed?
just sayin’
