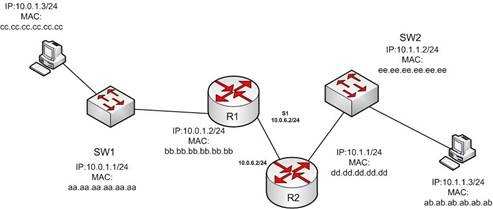

In the diagram below, if the workstation at 10.0.1.3 sends a packet to the workstation at 10.1.1.3, what will be the source physical address when the packet arrives
at 10.1.1.3?

A.
ab.ab.ab.ab.ab.ab

B.
ee.ee.ee.ee.ee.ee

C.
dd.dd.dd.dd.dd.dd

D.
cc.cc.cc.cc.cc.cc

E.
aa.aa.aa.aa.aa.aa

F.
bb.bb.bb.bb.bb.bb

Explanation:
The source physical address of the packet when it arrivesat 10.1.1.3 will be that of the interface on the R2 router, dd.dd.dd.dd.dd.dd . Each router will change the
MAC address field to the MAC address of its sending interface as it sends the packet and will leave the IP address field unchanged. The switches will change
neither field, but will simply use the MAC address field to determine the forwarding path and switch the frame to the port where the MAC address is located. The R2
router is the last device that will make a change to the MAC address field.
The source (10.0.1.3) and destination (10.1.1.3) IP address fields will stay the same at each device. The MAC address field changes when R1 sends the frame to
R2 and when R2 send the frame to the workstation at 10.1.1.3.
Objective:
LAN Switching Fundamentals
Sub-Objective:
Describe and verify switching concepts

http://docwiki.cisco.com/wiki/Routing_Basics
